Maverick HD - Bad Boy Zero-Turn Mower (2023) DRIVE ARM SUBASSEMBLIES Parts Diagram

Zero-Turn Mower

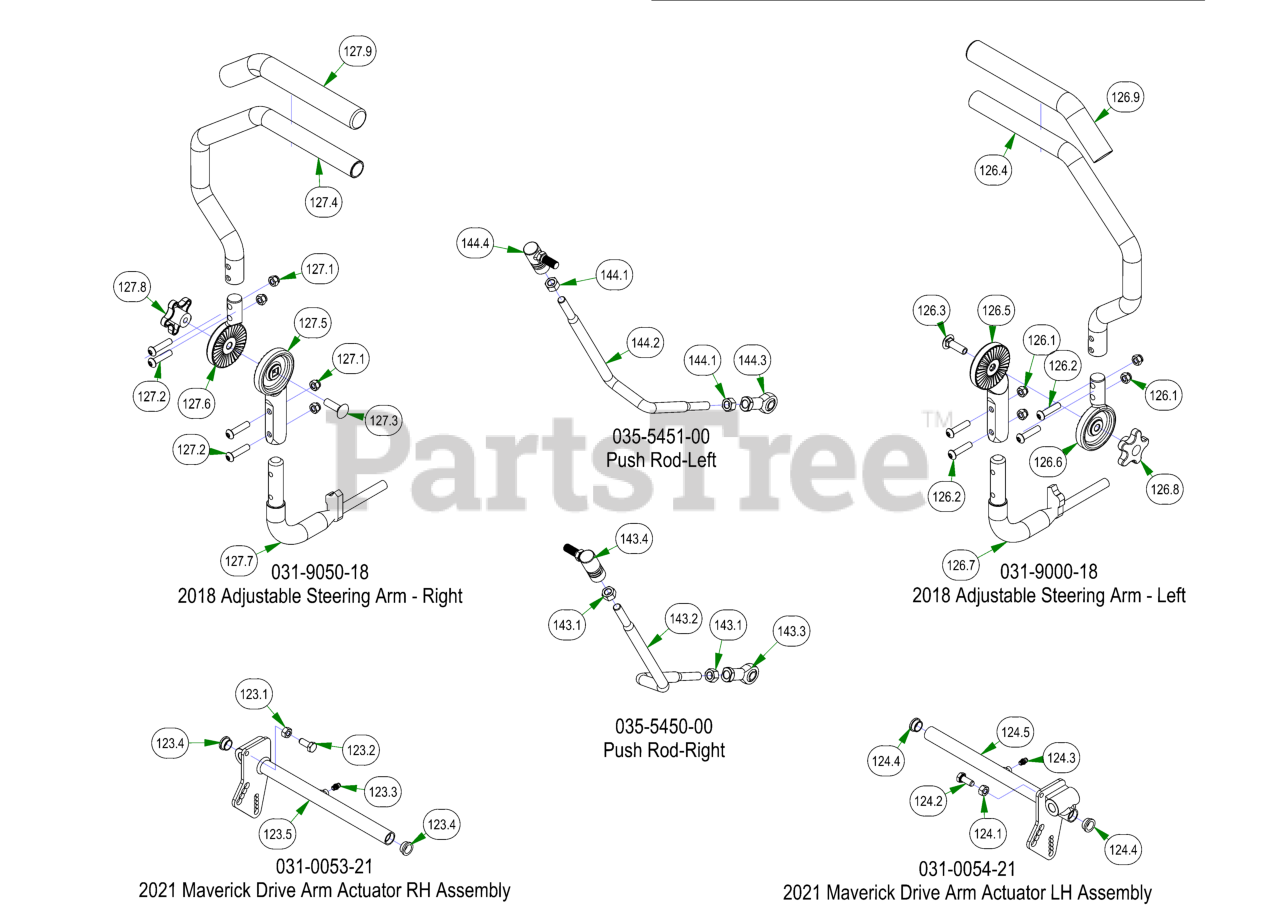

DRIVE ARM SUBASSEMBLIES Parts Diagram

  • Title

59

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

108

Bad Boy 026-0307-00

2023 4" & 5" Stripping Kit Plate

$11.99

$

Usually ships in 4-7 days

0

123

Bad Boy 031-0053-21

2021 Maverick Drive Arm Actuator RH Assembly

$45.99

$

Usually ships in 4-7 days

0

124

Bad Boy 031-0054-21

2021 Maverick Drive Arm Actuator LH Assembly

$45.99

$

Usually ships in 4-7 days

0

126

Bad Boy 031-9000-18

2018 Adjustable Steering Arm - Left

$164.99

$

Usually ships in 4-7 days

0

127

Bad Boy 031-9050-18

2018 Adjustable Steering Arm - Right

$164.99

$

Usually ships in 4-7 days

0

143

Bad Boy 035-5450-00

Push Rod-Right

$36.99

$

Usually ships in 4-7 days

0

144

Bad Boy 035-5451-00

Push Rod-Left

$45.99

$

Usually ships in 4-7 days

0

202

Bad Boy 084-5006-00

2023 ZT Stripping Kit Rubber

$60.99

$

Usually ships in 4-7 days

0

123.1

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

123.2

Bad Boy 018-8063-00

5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

123.3

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

123.4

Bad Boy 031-0032-00

2019 Drive Arm Bushing

$7.99

$

Usually ships in 4-7 days

0

123.5

Bad Boy 031-0053-00

2021 Drive Actuator RH Weldment

$

$

Not available

124.1

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

124.2

Bad Boy 018-8063-00

5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

124.3

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

124.4

Bad Boy 031-0032-00

2019 Drive Arm Bushing

$7.99

$

Usually ships in 4-7 days

0

124.5

Bad Boy 031-0054-00

2021 Drive Actuator LH Weldment

$

$

Not available

126.1

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

126.2

Bad Boy 018-2020-18

5/16-18 UNC X 1-3/8" BHCS, TORX DRIVE, GR 5

$1.99

$

In Stock, Qty 5

0

126.3

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

126.4

Bad Boy 031-9010-18

Upper Tube-Adjustable Steering

$30.99

$

Usually ships in 4-7 days

0

126.5

Bad Boy 031-9014-18

2018 Lower Adjuster - Steering Arm- Left

$56.99

$

Usually ships in 4-7 days

0

126.6

Bad Boy 031-9017-18

2018 Upper Adjuster - Steering Arm- Left

$56.99

$

Usually ships in 4-7 days

0

126.7

Bad Boy 031-9020-18

Steering Arm Elbow (Left)

$90.99

$

Usually ships in 4-7 days

0

126.8

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

126.9

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0

127.1

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

127.2

Bad Boy 018-2020-18

5/16-18 UNC X 1-3/8" BHCS, TORX DRIVE, GR 5

$1.99

$

In Stock, Qty 5

0

127.3

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

127.4

Bad Boy 031-9010-18

Upper Tube-Adjustable Steering

$30.99

$

Usually ships in 4-7 days

0

127.5

Bad Boy 031-9015-18

2018 Lower Adjuster - Steering Arm- Right

$56.99

$

Usually ships in 4-7 days

0

127.6

Bad Boy 031-9016-18

2018 Upper Adjuster - Steering Arm- Right

$56.99

$

Usually ships in 4-7 days

0

127.7

Bad Boy 031-9025-18

Steering Arm Elbow (Right)

$90.99

$

Usually ships in 4-7 days

0

127.8

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

127.9

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0

143.1

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

143.2

Bad Boy 035-5450-01

Push Rod - Right (Rod Only)

$

$

Currently unavailable

143.3

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

143.4

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0

144.1

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

144.2

Bad Boy 035-5451-01

Push Rod LH (Rod Only)

$

$

Currently unavailable

144.3

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

144.4

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0
