Maverick HD - Bad Boy Zero-Turn Mower (2023) DECK SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower

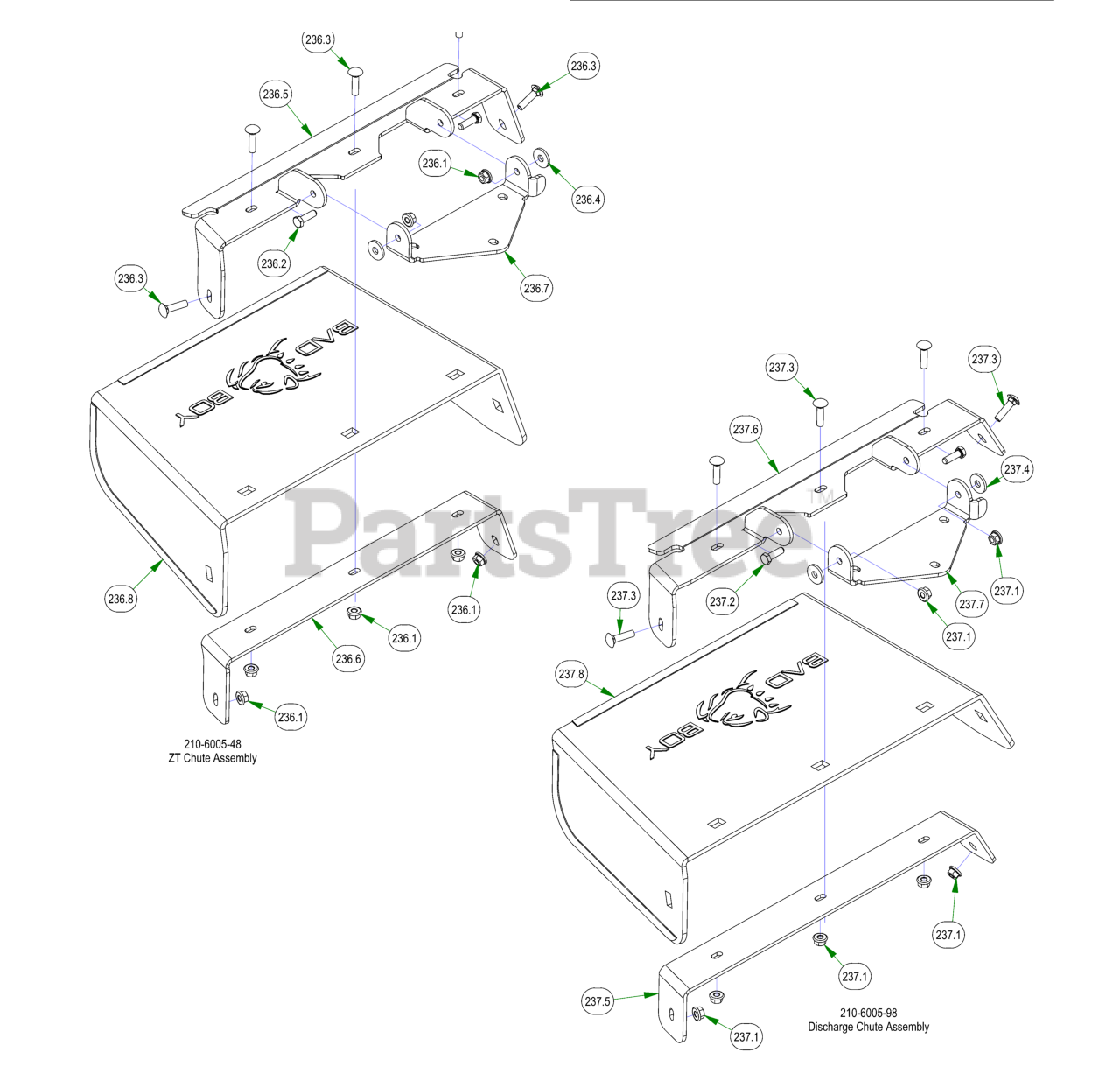

DECK SUB ASSEMBLIES Parts Diagram

  • Title

59

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

108

Bad Boy 026-0307-00

2023 4" & 5" Stripping Kit Plate

$11.99

$

Usually ships in 4-7 days

0

202

Bad Boy 084-5006-00

2023 ZT Stripping Kit Rubber

$60.99

$

Usually ships in 4-7 days

0

236

Bad Boy 210-6005-48

ZT Chute Assembly

$193.99

$

Usually ships in 4-7 days

0

237

Bad Boy 210-6005-98

Discharge Chute Assembly

$170.99

$

In Stock, only 3 left!

0

236.1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

236.2

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

236.3

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

236.4

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

236.5

Bad Boy 039-4870-00

Discharge Upper Chute Bracket

$45.99

$

Usually ships in 4-7 days

0

236.6

Bad Boy 039-4871-00

Discharge Lower Chute Bracket

$34.99

$

Usually ships in 4-7 days

0

236.7

Bad Boy 206-6017-00

Discharge Chute Hanger (deck mounted)

$41.99

$

In Stock, only 2 left!

0

236.8

Bad Boy 210-6005-00

Rubber Discharge Chute

$63.99

$

In Stock, Qty 8

0

237.1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

237.2

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

237.3

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

237.4

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

237.5

Bad Boy 039-4863-00

60" Discharge Lower Bracket

$34.99

$

Usually ships in 4-7 days

0

237.6

Bad Boy 039-4864-00

60" Discharge Chute Upper Hanger

$45.99

$

Usually ships in 4-7 days

0

237.7

Bad Boy 206-6017-00

Discharge Chute Hanger (deck mounted)

$41.99

$

In Stock, only 2 left!

0

237.8

Bad Boy 210-6005-00

Rubber Discharge Chute

$63.99

$

In Stock, Qty 8

0
