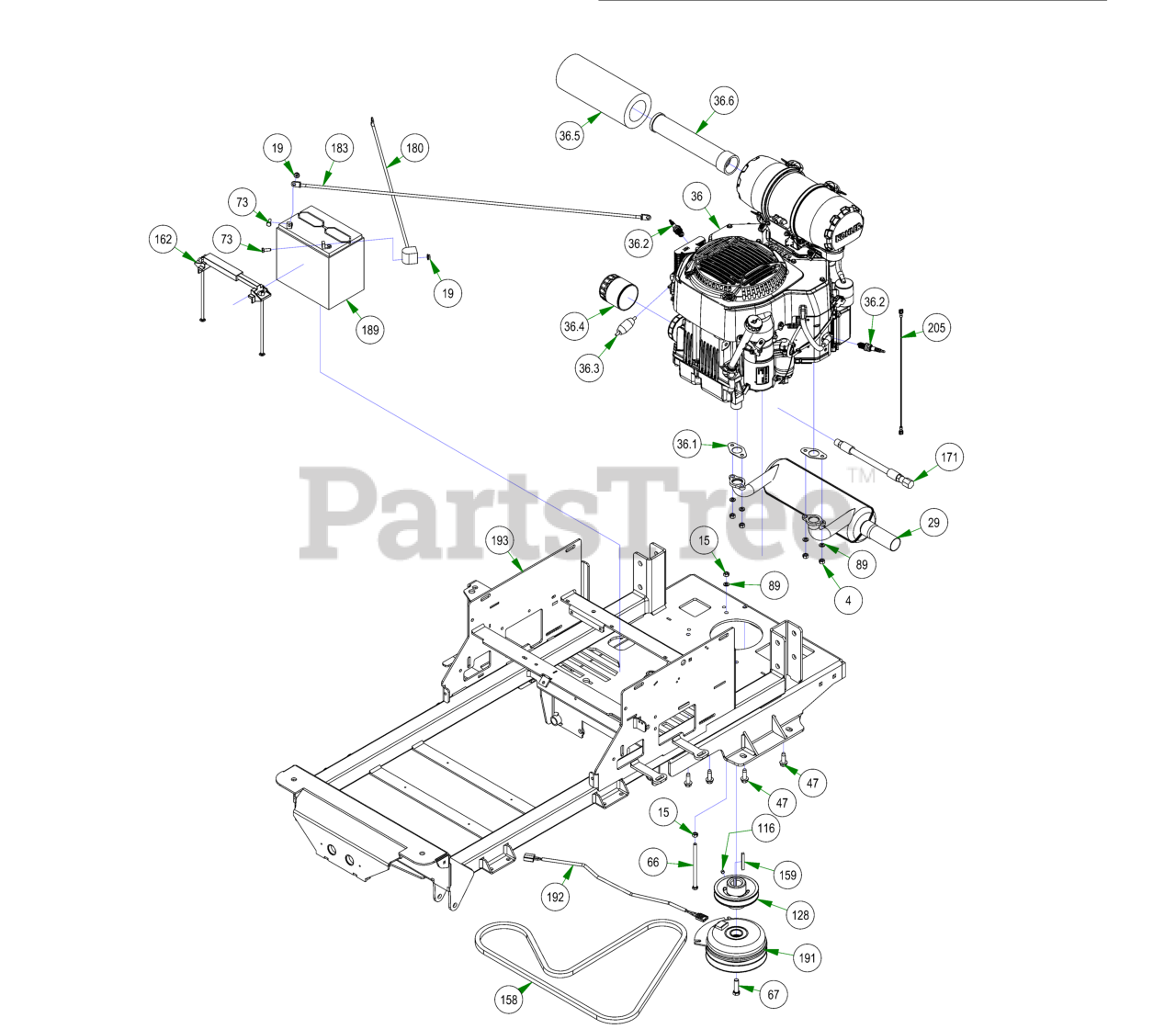

Maverick HD - Bad Boy Zero-Turn Mower (2022) KOHLER Parts Diagram

Zero-Turn Mower

KOHLER Parts Diagram

  • Title

4

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

In Stock, only 2 left!

0

15

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

19

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

29

Bad Boy 015-0051-00

Kohler Muffler

$247.99

$

In Stock, only 1 left!

0

36

Bad Boy 015-7420-00

Kohler 25Hp CV-742 Command

$

$

Not available

47

Bad Boy 018-1075-00

3/8-16 X 1-1/8 HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS ZINC YELLOW

$1.99

$

In Stock, Qty 11

0

66

Bad Boy 018-5350-00

5/16-18 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 2 left!

0

67

Bad Boy 018-5450-21

7/16-20 X 1-1/2 HEX CAP SCREW (GR.8) w/ Patch

$0.99

$

In Stock, only 2 left!

0

73

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

89

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

116

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

128

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

158

Bad Boy 041-7400-00

75.8" Pump Belt

$68.99

$

In Stock, Qty 16

0

159

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

162

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, Qty 11

0

171

Bad Boy 051-5401-00

Oil drain Hose

$33.99

$

In Stock, Qty 5

0

180

Bad Boy 064-0030-00

24 inch Black Cable – MZ/ZT

$19.99

$

Usually ships in 4-7 days

0

183

Bad Boy 064-8060-00

36" Red Battery Cable

$22.99

$

Usually ships in 4-7 days

0

189

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

191

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

192

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

193

Bad Boy 070-5492-00

2022 Maverick Frame - Painted

$

$

Not available

205

Bad Boy 086-9005-00

Compact Outlaw/Honda Starter Jumper Wire

$

$

Not available

36.1

Bad Boy 015-2751-00

Exhaust Gasket

$6.99

$

In Stock, Qty 5

0

36.2

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

36.3

Bad Boy 063-5001-00

25/26 HP Kohler Fuel Filter

$20.99

$

In Stock, Qty 8

0

36.4

Bad Boy 063-5400-00

Oil Filter

$23.99

$

In Stock, Qty 14

0

36.5

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 13

0

36.6

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 6

0
