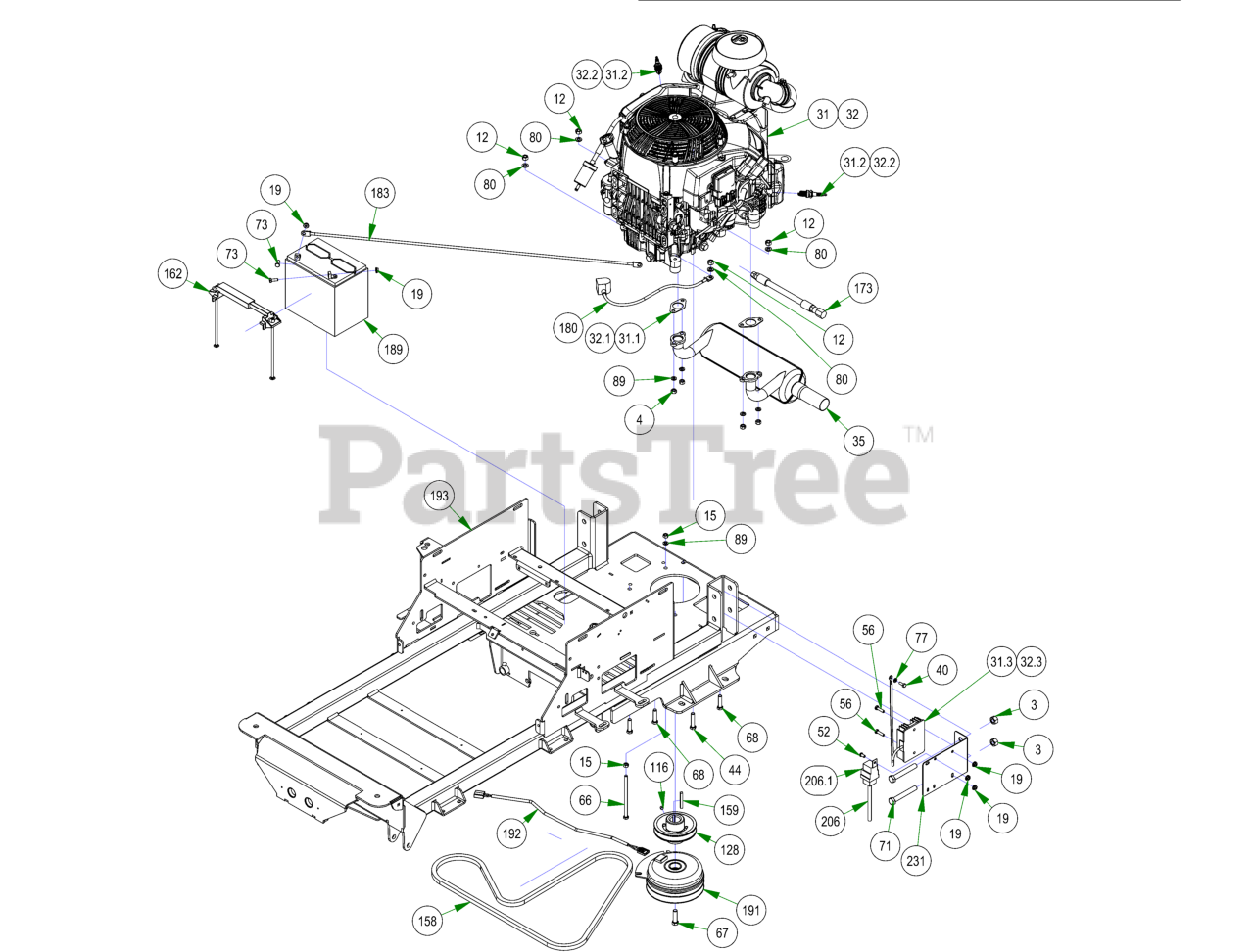

Maverick HD - Bad Boy Zero-Turn Mower (2022) HONDA Parts Diagram

Zero-Turn Mower

HONDA Parts Diagram

  • Title

3

Bad Boy 013-0005-00

1/2-13 HEX 2-WAY REVERSIBLE CENTER LOCKNUT Grade B ZINC

$3.49

$

Usually ships in 4-7 days

0

4

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

In Stock, only 2 left!

0

12

Bad Boy 013-6014-00

3/8-16 HEX NUT ZINC

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

19

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

31

Bad Boy 015-0093-00

Honda GXV700 1 1/8"dia x 3.8"Length Crank Shaft

$

$

Not available

32

Bad Boy 015-0094-00

Honda GXV800 1 1/8"dia x 3.8"Length Crank Shaft

$

$

Not available

35

Bad Boy 015-1016-00

2019 Honda Maverick Muffler

$226.99

$

Usually ships in 4-7 days

0

40

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

44

Bad Boy 018-0075-00

3/8-16 X 1-3/4 HEX C/S (GR.5) ZC

$3.49

$

In Stock, Qty 5

0

52

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, only 4 left!

0

56

Bad Boy 018-4007-00

1/4-20 X 1 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

66

Bad Boy 018-5350-00

5/16-18 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 2 left!

0

67

Bad Boy 018-5450-21

7/16-20 X 1-1/2 HEX CAP SCREW (GR.8) w/ Patch

$0.99

$

In Stock, only 2 left!

0

68

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

71

Bad Boy 018-6054-00

1/2-13 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 3 left!

0

73

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

77

Bad Boy 019-4008-00

1/4 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 6

0

80

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

89

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

116

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

128

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

158

Bad Boy 041-7400-00

75.8" Pump Belt

$68.99

$

In Stock, Qty 16

0

159

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

162

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, Qty 11

0

173

Bad Boy 051-5405-00

2019 Honda Oil Drain

$24.99

$

Usually ships in 4-7 days

0

180

Bad Boy 064-0030-00

24 inch Black Cable – MZ/ZT

$19.99

$

Usually ships in 4-7 days

0

183

Bad Boy 064-8060-00

36" Red Battery Cable

$22.99

$

Usually ships in 4-7 days

0

189

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

191

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

192

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

193

Bad Boy 070-5492-00

2022 Maverick Frame - Painted

$

$

Not available

206

Bad Boy 086-9019-00

Honda Maverick HD Pigtail

$

$

Not available

231

Bad Boy 201-0020-00

Honda Rectifier Mount

$11.99

$

Usually ships in 4-7 days

0

31.1

Bad Boy 015-0077-01

Exhaust Gasket

$7.99

$

In Stock, only 2 left!

0

31.2

Bad Boy 015-0091-04

Spark Plug

$13.99

$

In Stock, only 3 left!

0

31.3

Bad Boy 015-0091-06

Regulator Rectifier for Honda Engine

$277.99

$

Usually ships in 4-7 days

0

32.1

Bad Boy 015-0077-01

Exhaust Gasket

$7.99

$

In Stock, only 2 left!

0

32.2

Bad Boy 015-0091-04

Spark Plug

$13.99

$

In Stock, only 3 left!

0

32.3

Bad Boy 015-0091-06

Regulator Rectifier for Honda Engine

$277.99

$

Usually ships in 4-7 days

0

206.1

Bad Boy 086-1200-00

2022 Relay for the 086-9019-00

$45.99

$

Usually ships in 4-7 days

0
