Maverick HD - Bad Boy Zero-Turn Mower (2022) FUEL TANK & REAR COVER Parts Diagram

Zero-Turn Mower

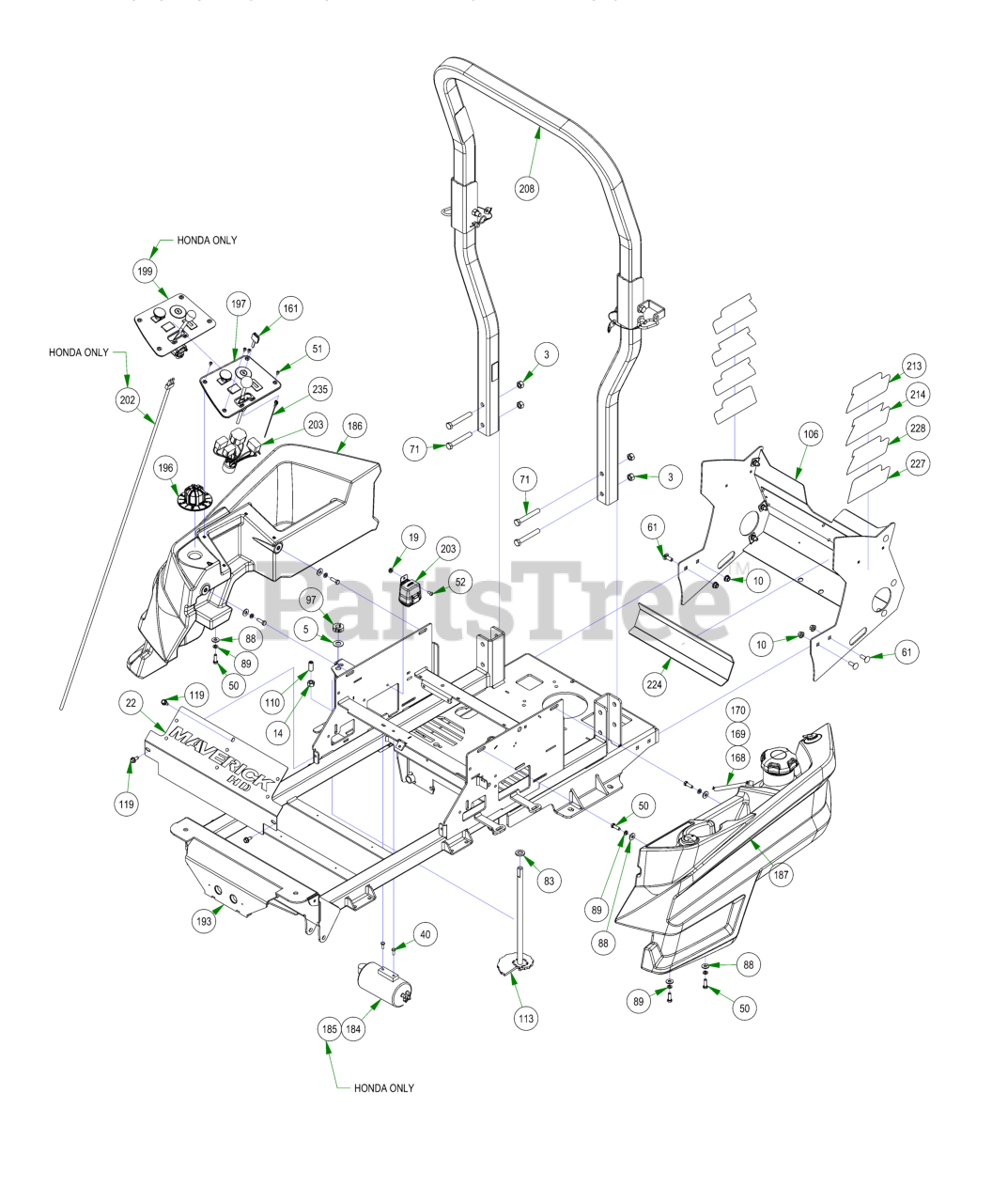

FUEL TANK & REAR COVER Parts Diagram

  • Title

3

Bad Boy 013-0005-00

1/2-13 HEX 2-WAY REVERSIBLE CENTER LOCKNUT Grade B ZINC

$3.49

$

Usually ships in 4-7 days

0

5

Bad Boy 013-0080-00

.625 ID x 1.250 OD x .062 THK F/W Nylon

$1.99

$

Usually ships in 4-7 days

0

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

19

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

22

Bad Boy 014-1001-00

Maverick HD Cooler Cover

$125.99

$

Usually ships in 4-7 days

0

40

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

50

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 1 left!

0

51

Bad Boy 018-2010-00

10-32 X 3/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

In Stock, Qty 9

0

52

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

In Stock, only 4 left!

0

61

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

71

Bad Boy 018-6054-00

1/2-13 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 3 left!

0

83

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

88

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

89

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

97

Bad Boy 025-0002-00

5/8" Split Collar

$11.99

$

Usually ships in 4-7 days

0

106

Bad Boy 026-0205-22

2022 Maverick Rear Cover Assembly

$182.99

$

Usually ships in 4-7 days

0

110

Bad Boy 028-0008-00

Dial Rod Plunger

$33.99

$

Usually ships in 4-7 days

0

113

Bad Boy 028-0070-17

ZT Deck Height Bar Assembly

$31.99

$

Usually ships in 4-7 days

0

119

Bad Boy 030-7042-00

5/16-18 X 3/4HEX WASHER SLOT (F) TCS ZINC

$1.49

$

Usually ships in 4-7 days

0

161

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

168

Bad Boy 051-0001-00

15" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

169

Bad Boy 051-0054-00

Honda Maverick Fuel Line Assembly

$22.99

$

Usually ships in 0 days

0

170

Bad Boy 051-2014-00

37" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

184

Bad Boy 067-0020-01

ZT/Mav EPA Cannister Assy

$91.99

$

Usually ships in 4-7 days

0

185

Bad Boy 067-0020-63

2019 Honda Maverick EPA Cannister Assy

$91.99

$

Usually ships in 4-7 days

0

186

Bad Boy 067-2020-00

2021 Maverick Right Side Tank

$272.99

$

Usually ships in 4-7 days

0

187

Bad Boy 067-2021-00

2021 Maverick Left Side Tank

$387.99

$

Usually ships in 4-7 days

0

193

Bad Boy 070-5492-00

2022 Maverick Frame - Painted

$

$

Not available

196

Bad Boy 077-9000-00

MZ/ZT Deck Height Dial

$22.99

$

In Stock, only 2 left!

0

197

Bad Boy 079-3460-19

2019 ZT/Maverick Control Panel Assembly

$164.99

$

Usually ships in 4-7 days

0

199

Bad Boy 079-3560-22

2022 Maverick HD Honda Control Panel Assembly

$

$

Not available

202

Bad Boy 086-3002-00

Honda E-Throttle Adapter

$

$

Not available

203

Bad Boy 086-3050-19

Wiring Harness

$341.99

$

Usually ships in 4-7 days

0

208

Bad Boy 089-0005-00

2016 2x2 ROPS

$452.99

$

Usually ships in 4-7 days

0

213

Bad Boy 091-0378-22

2022 Maverick 726cc Backplate Cluster

$15.99

$

Usually ships in 4-7 days

0

214

Bad Boy 091-0380-18

MAV HD/kohler bkplt decal

$6.99

$

Usually ships in 4-7 days

0

224

Bad Boy 091-4050-00

Heat Shield (Fiberglass Adhesive)

$15.99

$

Usually ships in 4-7 days

0

227

Bad Boy 091-4071-00

Honda Maverick HD 688cc Series Backplate Cluster

$11.99

$

Usually ships in 4-7 days

0

228

Bad Boy 091-4079-00

MavHD Honda 779cc Back Plate Decal

$11.99

$

Usually ships in 4-7 days

0

235

Bad Boy 216-1000-17

2017 MZ/ZT/MAV Tach Wire Assy
