Maverick HD - Bad Boy Zero-Turn Mower (2022) FRONT FORK Parts Diagram

Zero-Turn Mower

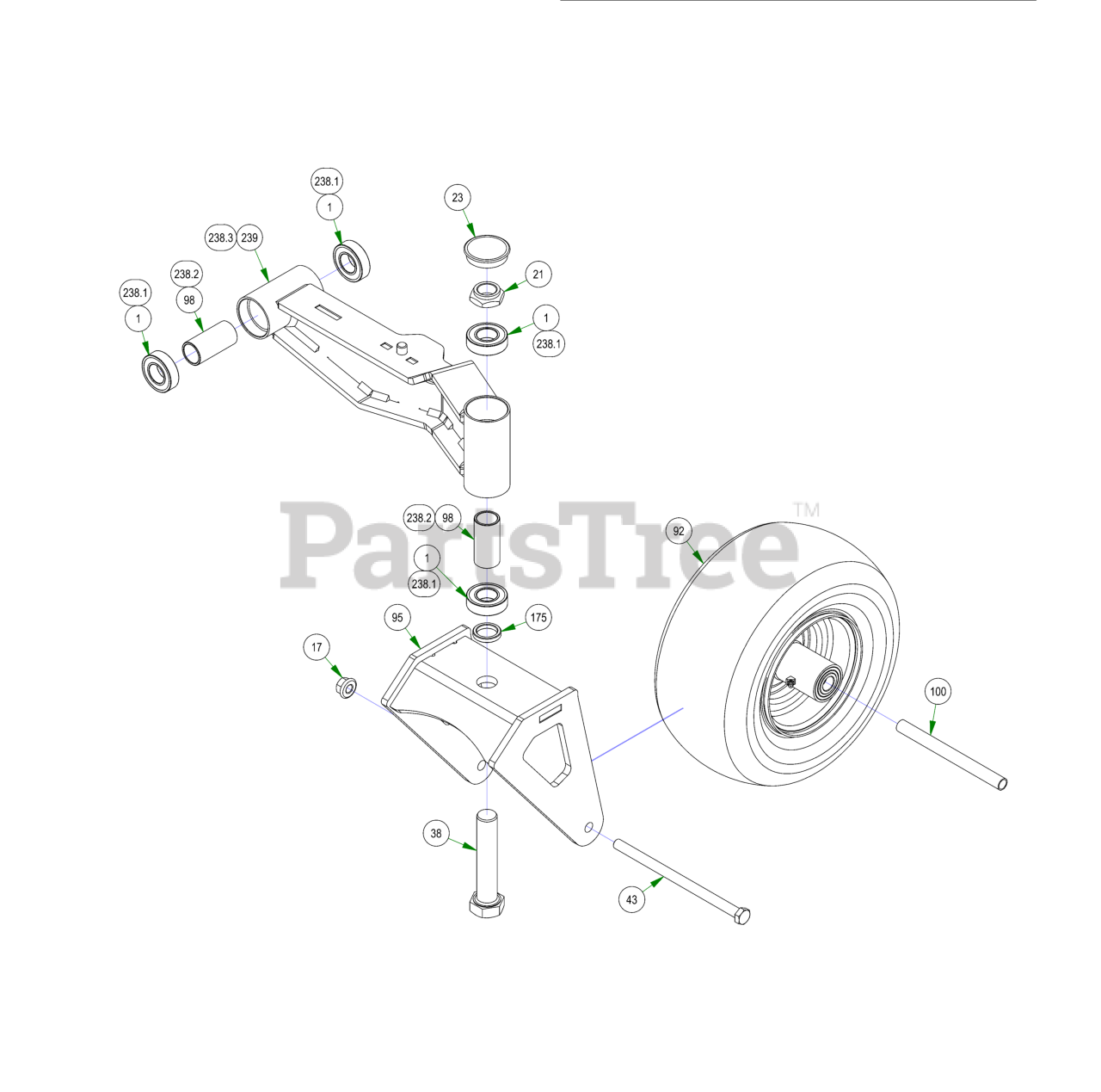

FRONT FORK Parts Diagram

1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

21

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

$

In Stock, Qty 10

0

23

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

38

Bad Boy 018-0005-00

1"-14 X 5 HEX CAP SCREW (GR.8) ZINC YELLOW

$7.99

$

In Stock, only 4 left!

0

43

Bad Boy 018-0040-00

1/2-13 X 8-1/2 HEX CAP SCREW (GR.5) ZINC

$7.49

$

In Stock, Qty 15

0

92

Bad Boy 022-3088-00

13x6.50-6 Black No Flat Assembly

$166.99

$

In Stock, Qty 20+

0

95

Bad Boy 023-1010-00

2019 Stand-on Front Fork Weldment

$166.99

$

In Stock, only 4 left!

0

98

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

100

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

175

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 9

0

238

Bad Boy 250-2801-21

2021 Maverick LH Front Suspension Arm Assy (48", 54" & 60")

$151.99

$

Usually ships in 4-7 days

0

239

Bad Boy 250-2802-22

2022 42" Maverick I-Beam Front Arm - LH - Painted

$170.99

$

Usually ships in 4-7 days

0

238.1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

238.2

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

238.3

Bad Boy 250-2801-00

2021 Maverick I-Beam Front Arm LH Weldment - Painted

$99.99

$

Usually ships in 4-7 days

0
