Maverick HD - Bad Boy Zero-Turn Mower (2022) 60" Deck Parts Diagram

Zero-Turn Mower

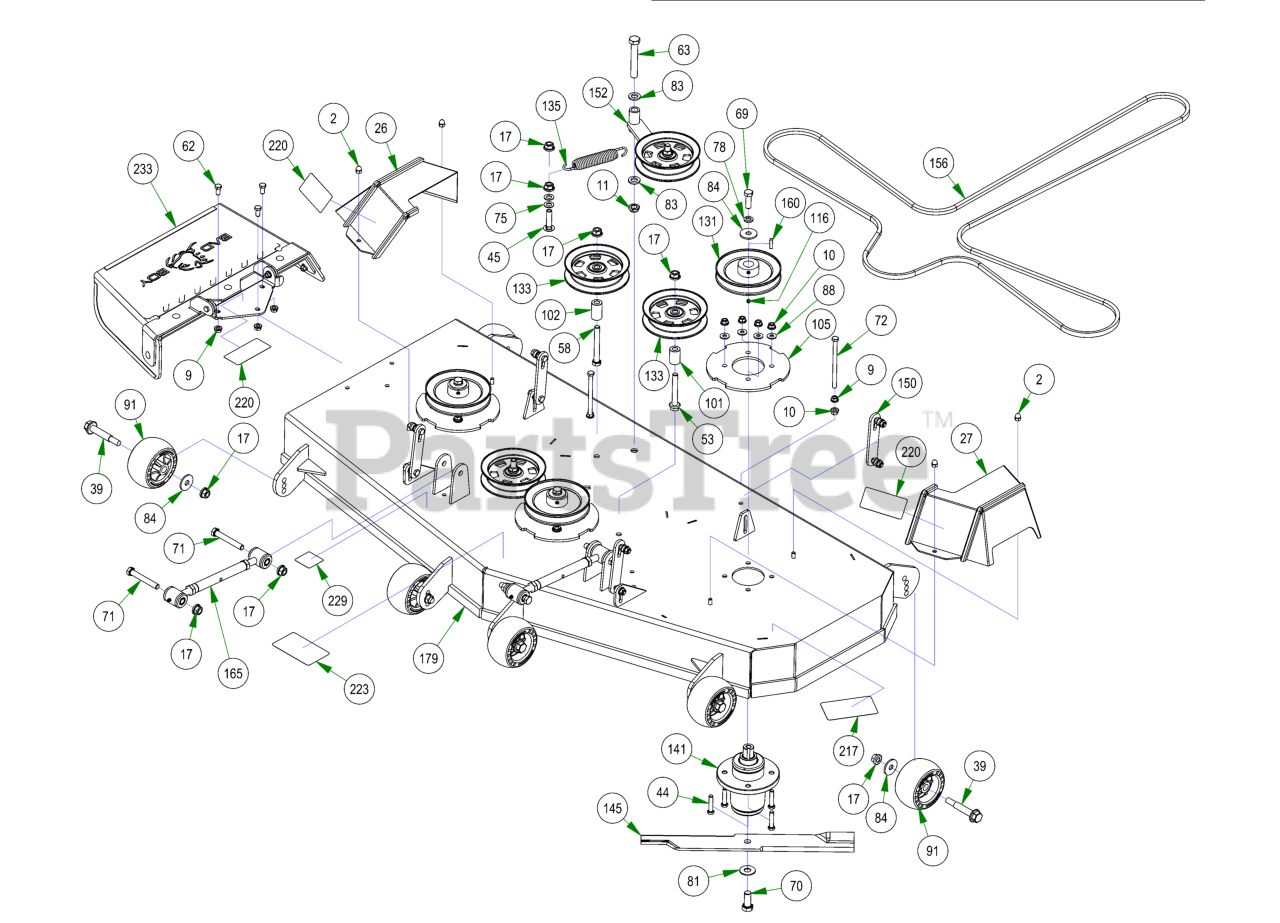

60" Deck Parts Diagram

  • Title

2

Bad Boy 013-0004-00

5/16-18 ACORN NUT HIGH-CROWN ZC

$3.49

$

In Stock, Qty 8

0

9

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

11

Bad Boy 013-5301-00

5/8-11 NYLON INSERT JAM LOCKNUT ZINC

$0.99

$

In Stock, Qty 6

0

17

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

26

Bad Boy 014-5020-00

2021 Maverick 54”/60” RH Pulley Cover

$30.99

$

In Stock, Qty 5

0

27

Bad Boy 014-5021-00

2021 Maverick 54”/60” LH Pulley Cover

$30.99

$

In Stock, Qty 5

0

39

Bad Boy 018-0010-00

Deck Wheel Bolt

$6.99

$

In Stock, Qty 20+

0

44

Bad Boy 018-0075-00

3/8-16 X 1-3/4 HEX C/S (GR.5) ZC

$3.49

$

In Stock, Qty 5

0

45

Bad Boy 018-1050-00

1/2-13 X 2 CARRIAGE BOLT ZINC

$1.99

$

In Stock, only 2 left!

0

53

Bad Boy 018-2018-00

1/2-13 X 3-1/2 HEX FLANGE BOLT (GR.8) ZINC

$3.99

$

In Stock, Qty 6

0

58

Bad Boy 018-5019-00

1/2-13 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.99

$

In Stock, Qty 6

0

62

Bad Boy 018-5250-00

3/8-16 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

63

Bad Boy 018-5311-00

5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.49

$

In Stock, Qty 8

0

69

Bad Boy 018-6019-00

1/2-20 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 20+

0

70

Bad Boy 018-6020-00

5/8-18 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$2.99

$

In Stock, Qty 20+

0

71

Bad Boy 018-6054-00

1/2-13 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 3 left!

0

72

Bad Boy 018-7060-00

3/8-16 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

75

Bad Boy 019-0007-00

.517 SQ WDTH ID X .937 OD X .060 THICK F/W PHOS/OIL

$1.49

$

In Stock, only 2 left!

0

78

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

81

Bad Boy 019-5038-00

5/8 USS FLAT WASHER (1-3/4" OD) GR.8 ZINC YELLOW

$1.99

$

In Stock, Qty 20+

0

83

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

84

Bad Boy 019-6020-00

1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC

$5.49

$

In Stock, Qty 20+

0

88

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

91

Bad Boy 022-1000-00

Deck Wheel

$18.99

$

In Stock, Qty 20+

0

101

Bad Boy 025-5338-00

.502 ID X .750 OD X 1.500 Long Spacer

$3.99

$

In Stock, Qty 6

0

102

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, Qty 5

0

105

Bad Boy 026-0025-00

Deck Spindle Support Plate

$15.99

$

In Stock, only 2 left!

0

116

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

131

Bad Boy 033-6004-00

6 1/4" Drive Pulley

$37.99

$

In Stock, Qty 20+

0

133

Bad Boy 033-7201-25

5-3/4 Idler Pulley

$37.99

$

In Stock, Qty 20+

0

135

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

141

Bad Boy 037-4000-00

OUTLAW SPINDLE ASSEMBLY

$332.99

$

In Stock, Qty 20+

0

145

Bad Boy 038-6060-00

60" High Lift Fusion Blade

$24.99

$

In Stock, Qty 20+

0

150

Bad Boy 039-2127-17

Deck Hanger Assembly

$16.99

$

In Stock, only 3 left!

0

152

Bad Boy 039-6945-17

2017 MZ/ZT Deck Idler Assembly

$75.99

$

In Stock, Qty 5

0

156

Bad Boy 041-1650-00

B165 Belt

$96.99

$

In Stock, Qty 20+

0

160

Bad Boy 042-6030-00

1/4 X 1 SQ MACHINERY KEY 1018 STL PLN

$4.99

$

In Stock, Qty 20+

0

165

Bad Boy 048-6000-00

2018 Maverick Turnbuckle (Top Link)

$85.99

$

In Stock, only 3 left!

0

179

Bad Boy 060-6017-00

2017 60" ZT Deck Welded Assembly

$1139.99

$

Usually ships in 4-7 days

0

217

Bad Boy 091-0905-18

2018 60" Deck Decal

$6.99

$

Usually ships in 4-7 days

0

220

Bad Boy 091-3012-00

Danger Decal-Spindle/Discharge

$3.49

$

In Stock, only 3 left!

0

223

Bad Boy 091-3309-00

Deck Belt Route Decal

$6.99

$

Usually ships in 4-7 days

0

229

Bad Boy 091-8001-00

Deck Impact Patent Decal 9591803

$0.99

$

Usually ships in 4-7 days

0

233

Bad Boy 210-6005-98

Discharge Chute Assembly

$170.99

$

In Stock, only 3 left!

0
