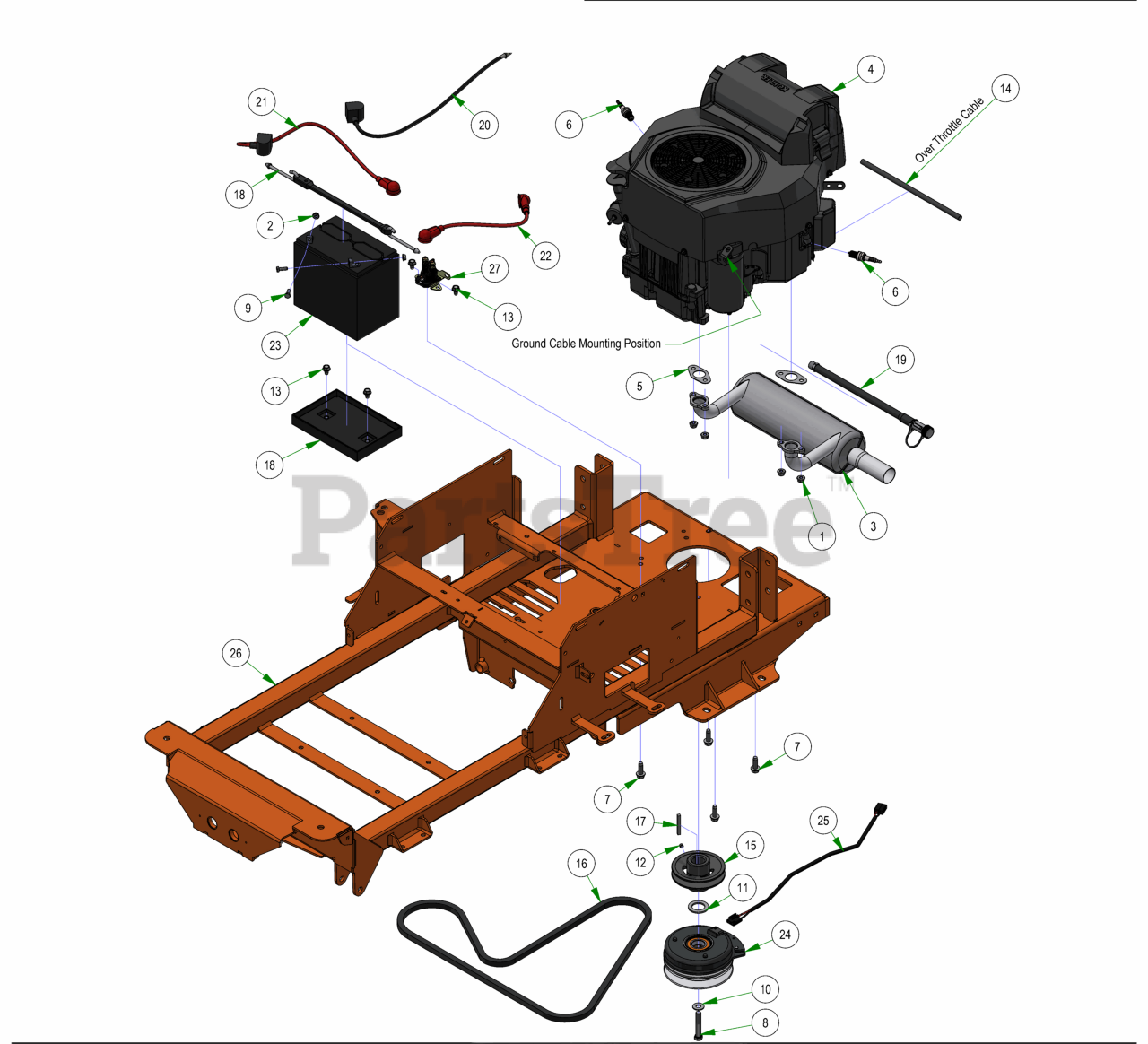

Maverick - Bad Boy Zero-Turn Mower (2025) KOHLER Parts Diagram

Zero-Turn Mower

KOHLER Parts Diagram

  • Title

1

Bad Boy 013-8240-00

M8 Nut Connects the 015-1012-00 and the 015-8240-00

$7.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-9001-00

1 4-20 HEX SERRATED FLANGE NUT HARD ZINC

$0.99

$

In Stock, only 4 left!

0

3

Bad Boy 015-0051-00

Kohler Muffler

$247.99

$

In Stock, only 2 left!

0

4

Bad Boy 015-2030-00

Kohler-2014 CZT Outlaw 747cc

$3190.99

$

Usually ships in 4-7 days

0

5

Bad Boy 015-2751-00

Exhaust Gasket

$6.99

$

In Stock, only 1 left!

0

6

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

7

Bad Boy 018-1075-00

3 8-16 X 1-1 8 HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS ZINC YELLOW

$1.99

$

In Stock, Qty 11

0

8

Bad Boy 018-5300-21

7 16-20 X 2.5" HEX Bolt GR.8 W Patch

$3.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-8052-00

1 4-20 X 3 4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

10

Bad Boy 019-5029-00

3 8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

11

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

12

Bad Boy 030-0050-00

5 16-24 X 1 4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

13

Bad Boy 030-7044-00

5 16-18 X 1 2 HWH unslot (F) tcs zinc

$1.49

$

Usually ships in 4-7 days

0

14

Bad Boy 032-6000-00

Braided Heat Shielding, 12"

$2.49

$

Usually ships in 4-7 days

0

15

Bad Boy 033-5035-00

4 3 4 Motor Pulley

$45.99

$

In Stock, only 2 left!

0

16

Bad Boy 041-7400-00

75.8" Pump Belt

$68.99

$

In Stock, Qty 16

0

17

Bad Boy 042-5020-00

1 4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 1 left!

0

18

Bad Boy 043-8930-98

2023 Battery Hold Down Assembly

$28.99

$

In Stock, only 2 left!

0

19

Bad Boy 051-5401-00

Kohler Oil Drain

$33.99

$

In Stock, only 4 left!

0

20

Bad Boy 064-0030-00

24 inch Black Cable – MZ ZT

$19.99

$

Usually ships in 4-7 days

0

21

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

22

Bad Boy 064-5301-00

12" Red Battery Cable

$18.99

$

In Stock, only 2 left!

0

23

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

24

Bad Boy 070-0059-00

120 Ft Lb. Clutch - 1 1 8" Shaft

$410.99

$

Usually ships in 0 days

0

25

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

26

Bad Boy 070-2503-00

2025 Maverick Frame

$

$

Currently unavailable

27

Bad Boy 108-0001-00

Solenoid

$31.99

$

In Stock, Qty 10

0
