Maverick - Bad Boy Zero-Turn Mower (2024) FRAME SUB ASSEMBLIES (CONT.) Parts Diagram

Zero-Turn Mower

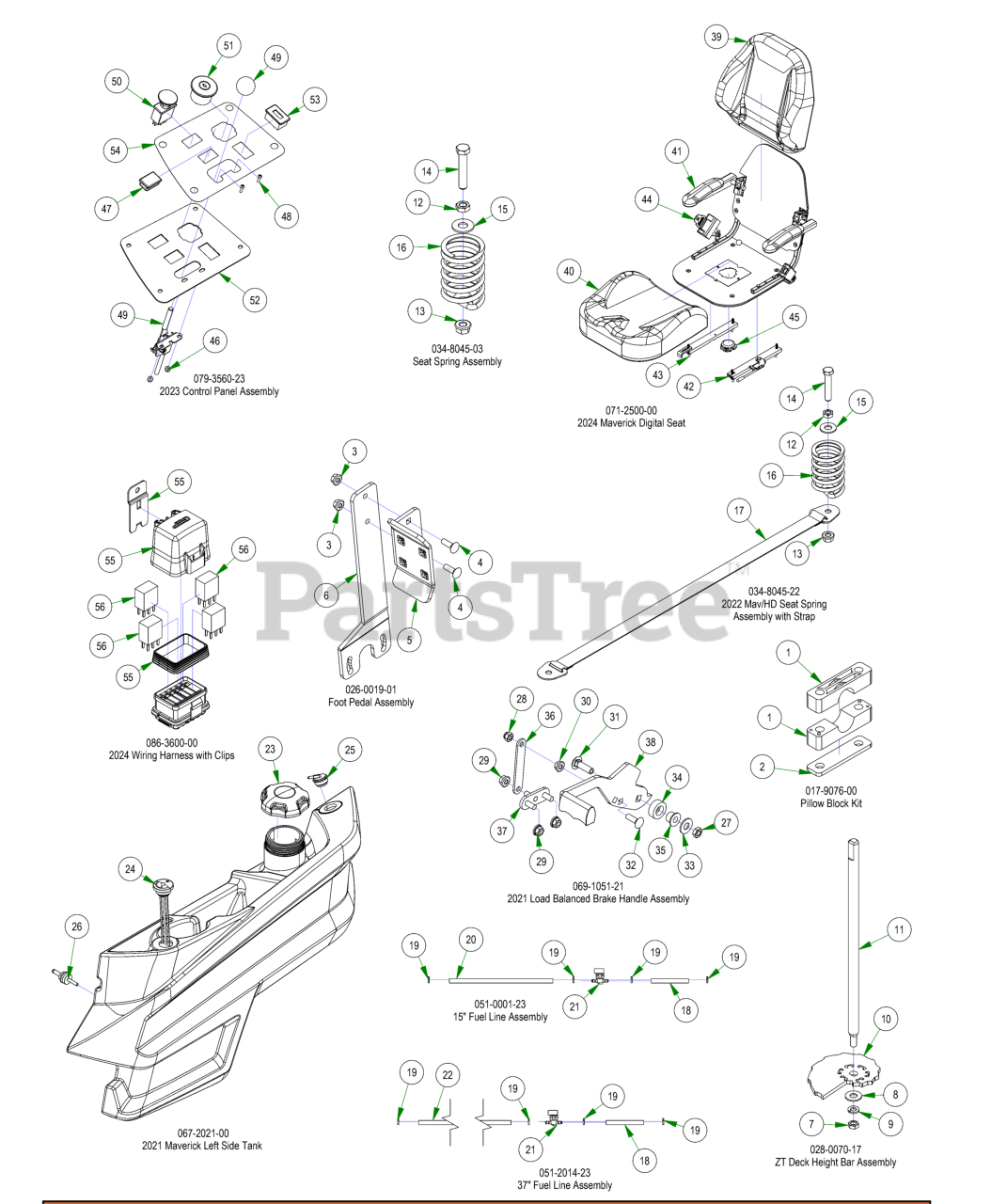

FRAME SUB ASSEMBLIES (CONT.) Parts Diagram

  • Title

1

Bad Boy 017-9077-00

Pillow Block MZ

$22.99

$

Usually ships in 4-7 days

0

2

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

0

3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

4

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

5

Bad Boy 026-0019-00

2017 MZ/ZT Shallow Foot Pedal

$33.99

$

Usually ships in 4-7 days

0

6

Bad Boy 031-0500-00

2017 MZ/ZT Deck Pedal Lever

$33.99

$

Usually ships in 4-7 days

0

7

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

8

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

9

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 8

0

10

Bad Boy 026-1100-00

2017 MZ/ZT Cam Plate

$16.99

$

Usually ships in 4-7 days

0

11

Bad Boy 028-0014-00

2017 Deck Height Dial Rod ZT

$33.99

$

Usually ships in 4-7 days

0

12

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

13

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 6

0

15

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

16

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

17

Bad Boy 064-8083-00

Seat Strap with Buckles

$26.99

$

In Stock, only 3 left!

0

18

Bad Boy 051-8067-00

4" 1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0

19

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

20

Bad Boy 051-8067-00

11" 1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0

21

Bad Boy 067-6057-00

2 Way Fuel Shut-Off Valve

$17.99

$

Usually ships in 4-7 days

0

22

Bad Boy 051-2014-01

37" 1/4 Fuel Line

$20.99

$

Usually ships in 4-7 days

0

23

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 3 left!

0

24

Bad Boy 067-4090-00

Fuel Gauge w/Grommet

$49.99

$

In Stock, Qty 19

0

25

Bad Boy 067-6070-00

Rollover Valve W/Grommet

$26.99

$

In Stock, Qty 20+

0

26

Bad Boy 067-9903-00

Fuel Pick-up for 067-2021-00

$

$

Currently unavailable

27

Bad Boy 013-0012-00

3/8-16 HEX JAM 2-WAY REVERSIBLE CENTER LOCKNUT ZINC

$3.49

$

In Stock, Qty 5

0

28

Bad Boy 013-8042-00

5/16-18 NYLON INSERT CAP LOCKNUT ZINC (BLK CAP)

$1.49

$

Usually ships in 4-7 days

0

29

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

30

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

31

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

32

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

33

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

34

Bad Boy 025-0001-00

2015 Brake Lever Spacer

$8.49

$

In Stock, Qty 5

0

35

Bad Boy 032-5053-00

.377 ID X .625 OD X .500 HGT X .880 FLNG DIA X .060 FLNG THK

$3.49

$

In Stock, only 2 left!

0

36

Bad Boy 039-0170-00

Brake Cable Extension Plate

$11.99

$

Usually ships in 4-7 days

0

37

Bad Boy 039-0171-00

Brake Load Balancer Lower Weldment

$11.99

$

Usually ships in 4-7 days

0

38

Bad Boy 069-1051-00

Load Balanced Brake Handle with Grip

$68.99

$

Usually ships in 4-7 days

0

39

Bad Boy 071-2500-01

Back Cover 2024 Maverick Digital Seat

$113.99

$

Usually ships in 4-7 days

0

40

Bad Boy 071-2500-02

Seat Cover 2024 Maverick Digital Seat

$113.99

$

Usually ships in 4-7 days

0

41

Bad Boy 071-2500-03

Extended Pin (Poly Pad) Arms Pair 2024 Maverick

$148.99

$

Usually ships in 4-7 days

0

42

Bad Boy 071-2500-04

Seat Slide 6.5" Latch Slid w/3 holes 2024 Maverick

$

$

Currently unavailable

43

Bad Boy 071-2500-05

Seat Slide (Slave) w/3 holes 2024 Maverick

$

$

Currently unavailable

44

Bad Boy 071-2500-06

Seat Belt Assembly for 2024 Maverick Digital Seat

$136.99

$

Usually ships in 4-7 days

0

45

Bad Boy 071-8061-00

13/14 MZ/Outlaw Seat Switch

$20.99

$

In Stock, only 3 left!

0

46

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

47

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

48

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

49

Bad Boy 055-8020-00

Throttle Lever Assembly

$41.99

$

In Stock, Qty 20+

0

50

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

51

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

52

Bad Boy 079-3461-00

2022 Maverick HD control panel

$25.99

$

Usually ships in 4-7 days

0

53

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

54

Bad Boy 091-4072-00

2023 MZ/Magnum/ZT/Maverick Control Panel Decal

$10.99

$

Usually ships in 4-7 days

0

55

Bad Boy 086-1202-01

Relay Block Cover Replacement Kit

$19.99

$

Usually ships in 4-7 days

0

56

Bad Boy 086-1202-19

Relay

$26.99

$

In Stock, Qty 8

0
