Maverick - Bad Boy Zero-Turn Mower (2024) DECK SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower

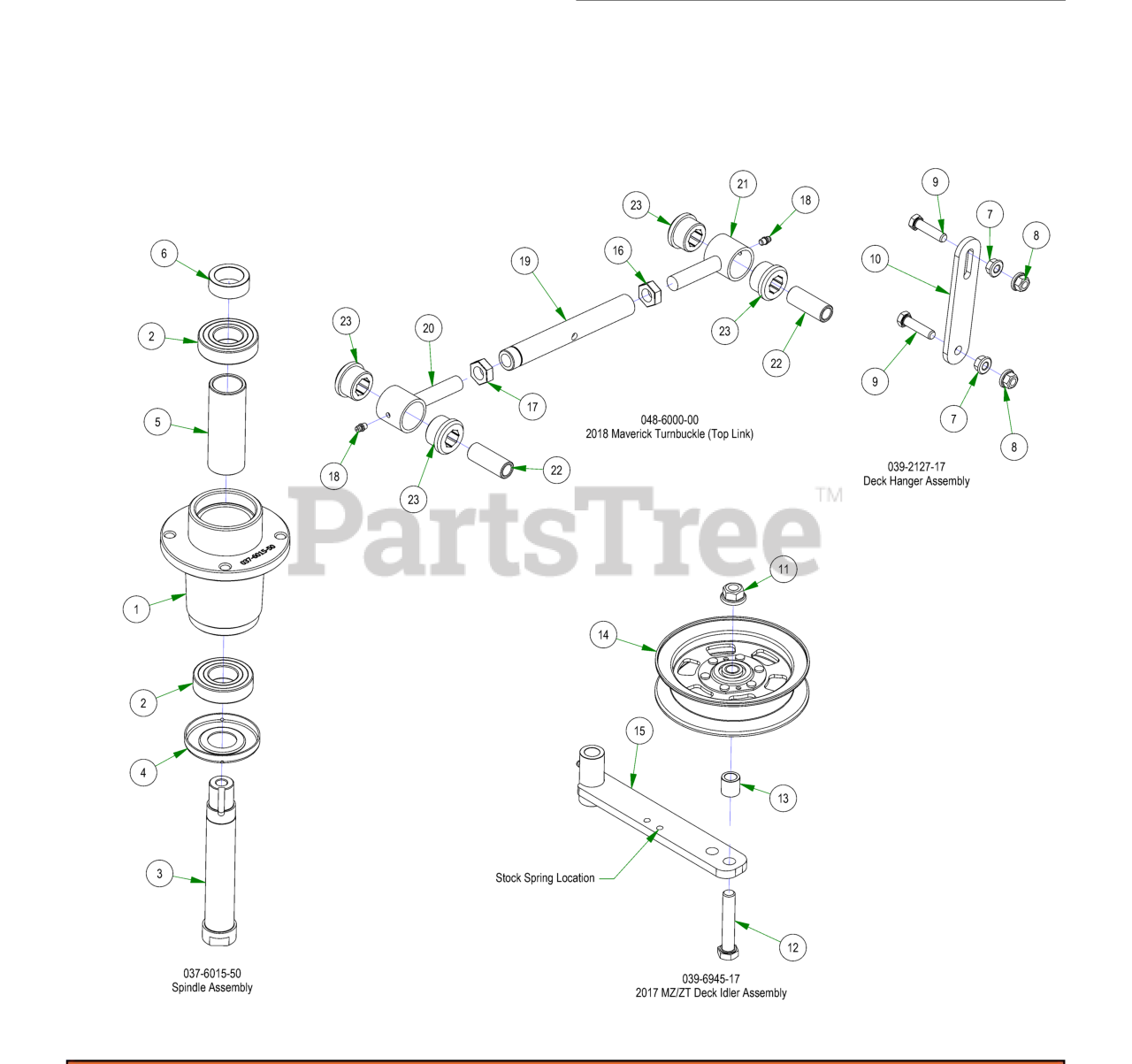

DECK SUB ASSEMBLIES Parts Diagram

  • Title

1

Bad Boy 037-6017-50

Spindle Housing

$136.99

$

Usually ships in 4-7 days

0

2

Bad Boy 037-6023-00

Bearing - 6206

$

$

Not available

3

Bad Boy 037-6026-00

Spindle Shaft

$89.99

$

In Stock, Qty 12

0

4

Bad Boy 037-8002-00

Spindle Dust Cap

$12.99

$

In Stock, Qty 8

0

5

Bad Boy 037-8050-00

Spindle Spacer

$9.49

$

In Stock, only 2 left!

0

6

Bad Boy 037-9050-00

Locking Collar w/ 1/4"-20 Set Screw

$7.99

$

In Stock, Qty 6

0

7

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

9

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

10

Bad Boy 039-2127-00

2017 MZ/ZT Deck Hanger

$11.99

$

Usually ships in 0 days

0

11

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

12

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

13

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 15

0

14

Bad Boy 033-8050-00

5" Idler Pully

$37.99

$

In Stock, Qty 20+

0

15

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

0

16

Bad Boy 013-0019-00

NUT, 5/8-18

$4.99

$

Usually ships in 4-7 days

0

17

Bad Boy 013-0020-00

NUT, 5/8-18LH

$4.99

$

Usually ships in 4-7 days

0

18

Bad Boy 024-0001-00

1/4-28 Grease Fitting

$0.99

$

Usually ships in 4-7 days

0

19

Bad Boy 048-6001-00

2018 Maverick Toplink Body

$30.99

$

Usually ships in 4-7 days

0

20

Bad Boy 048-6002-00

2018 Maverick Bushing Retainer Left-Handed

$30.99

$

Usually ships in 4-7 days

0

21

Bad Boy 048-6003-00

2018 Maverick Bushing Retainer Right-Handed

$30.99

$

Usually ships in 4-7 days

0

22

Bad Boy 048-6004-00

2018 Maverick Bushing Sleeve

$12.99

$

Usually ships in 4-7 days

0

23

Bad Boy 048-6005-00

2018 Maverick Bushing

$34.99

$

Usually ships in 4-7 days

0
