Maverick - Bad Boy Zero-Turn Mower (2023) TRANSAXLE Parts Diagram

Zero-Turn Mower

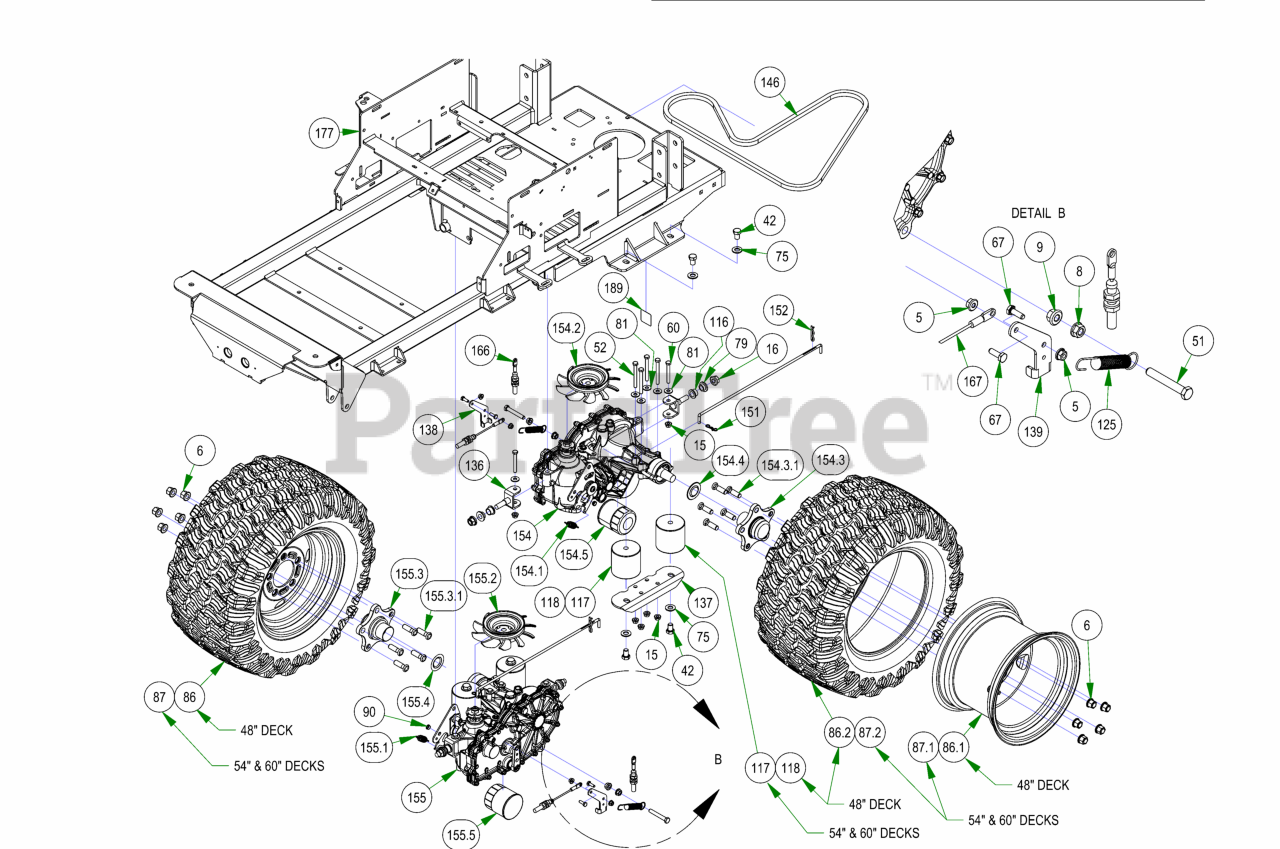

TRANSAXLE Parts Diagram

  • Title

5

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

6

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

8

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

9

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

15

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

16

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

42

Bad Boy 018-1055-00

1/2-13 X 3/4 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

51

Bad Boy 018-2071-00

3/8-16 X 2-1/2 HEX TAP BOLT (GR.5) ZINC Fully Threaded

$1.99

$

Usually ships in 4-7 days

0

52

Bad Boy 018-4701-00

5/16-18 X 3 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

60

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

67

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

75

Bad Boy 019-5702-00

1/2 SAE FLAT WASHER (1-1/16" OD) GR.8 ZINC YELLOW

$0.99

$

In Stock, only 2 left!

0

79

Bad Boy 019-8027-00

.525 ID SHOULDER WASHER NYLON

$0.99

$

In Stock, only 2 left!

0

81

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

86

Bad Boy 022-4040-00

23x9-12 Reaper Turf Tire & Wheel Assembly

$341.99

$

Usually ships in 4-7 days

0

87

Bad Boy 022-4200-00

23x11-12 Reaper Turf Assembly

$331.99

$

Usually ships in 4-7 days

0

90

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

103

Bad Boy 028-0070-00

Neutral Rod

$13.99

$

Usually ships in 4-7 days

0

116

Bad Boy 032-5052-00

.627 ID X .753 OD X .500 LGTH X 1.000 FLG OD X .094 FLG THICK FLANGED BEARING OIL-IMPREG BRNZ

$4.99

$

In Stock, Qty 11

0

117

Bad Boy 032-9000-00

Vibration Mount-Green Dot

$75.99

$

In Stock, only 2 left!

0

118

Bad Boy 032-9002-00

Vibration Mount- Red Dot

$75.99

$

In Stock, only 3 left!

0

125

Bad Boy 034-1026-00

Brake Return Spring

$15.99

$

In Stock, only 3 left!

0

136

Bad Boy 039-0001-00

Maverick Rear Transaxle Pivot Bracket

$16.99

$

In Stock, only 3 left!

0

137

Bad Boy 039-1306-00

Rear Suspension Transaxle Mount

$16.99

$

Usually ships in 4-7 days

0

138

Bad Boy 039-1320-00

Brake Arm Ext (Left)

$6.49

$

Usually ships in 4-7 days

0

139

Bad Boy 039-1321-00

Brake Arm Ext (Right)

$8.49

$

Usually ships in 4-7 days

0

146

Bad Boy 041-7400-00

75.8" Pump Belt

$68.99

$

In Stock, Qty 16

0

151

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

152

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

0

154

Bad Boy 050-0075-02

2021 LH 3200 Transaxle

$911.99

$

Usually ships in 4-7 days

0

155

Bad Boy 050-0080-02

2021 RH 3200 Transaxle

$1139.99

$

Usually ships in 4-7 days

0

166

Bad Boy 064-3050-21

2021 Load Balanced Brake Cable 1

$60.99

$

In Stock, only 4 left!

0

167

Bad Boy 064-3051-21

2021 Load Balanced Brake Cable 2

$60.99

$

In Stock, only 2 left!

0

177

Bad Boy 070-2303-00

2023 Maverick Frame - Painted

$

$

Currently unavailable

189

Bad Boy 091-0019-00

Patent Decal

$3.99

$

Usually ships in 0 days

0

86.1

Bad Boy 022-3011-00

12x7" Black Wheel

$125.99

$

Usually ships in 4-7 days

0

86.2

Bad Boy 022-4035-00

23x9-12 Reaper Turf Tire Only

$196.99

$

Usually ships in 4-7 days

0

87.1

Bad Boy 022-4070-00

12x8.5 Black Wheel

$150.99

$

Usually ships in 4-7 days

0

87.2

Bad Boy 022-4195-00

Tire, 23/11x12 Reaper Turf

$257.99

$

Usually ships in 4-7 days

0

154.1

Bad Boy 034-9080-00

Gold Transaxle Spring

$15.99

$

In Stock, Qty 7

0

154.2

Bad Boy 050-2070-00

2021 ZT/Maverick Transaxle Fan/Pulley Kit

$90.99

$

In Stock, only 4 left!

0

154.3

Bad Boy 050-2077-00

5 Bolt Hub Kit

$109.99

$

Usually ships in 4-7 days

0

154.4

Bad Boy 050-8010-00

2021 ZT/Maverick Transaxle Seat Kit (ZT-2800)

$124.99

$

In Stock, only 2 left!

0

154.5

Bad Boy 063-1050-00

ZT Hydraulic Filter

$24.99

$

In Stock, Qty 20+

0

155.1

Bad Boy 034-9080-00

Gold Transaxle Spring

$15.99

$

In Stock, Qty 7

0

155.2

Bad Boy 050-2070-00

2021 ZT/Maverick Transaxle Fan/Pulley Kit

$90.99

$

In Stock, only 4 left!

0

155.3

Bad Boy 050-2077-00

5 Bolt Hub Kit

$109.99

$

Usually ships in 4-7 days

0

155.4

Bad Boy 050-8010-00

2021 ZT/Maverick Transaxle Seat Kit (ZT-2800)

$124.99

$

In Stock, only 2 left!

0

155.5

Bad Boy 063-1050-00

ZT Hydraulic Filter

$24.99

$

In Stock, Qty 20+

0

154.3.1

Bad Boy 050-2012-00

Transaxle Wheel Studs/ Drum Brake Studs

$5.99

$

In Stock, Qty 20+

0

155.3.1

Bad Boy 050-2012-00

Transaxle Wheel Studs/ Drum Brake Studs

$5.99

$

In Stock, Qty 20+
