Maverick - Bad Boy Zero-Turn Mower (2022) FRONT FORK Parts Diagram

Zero-Turn Mower

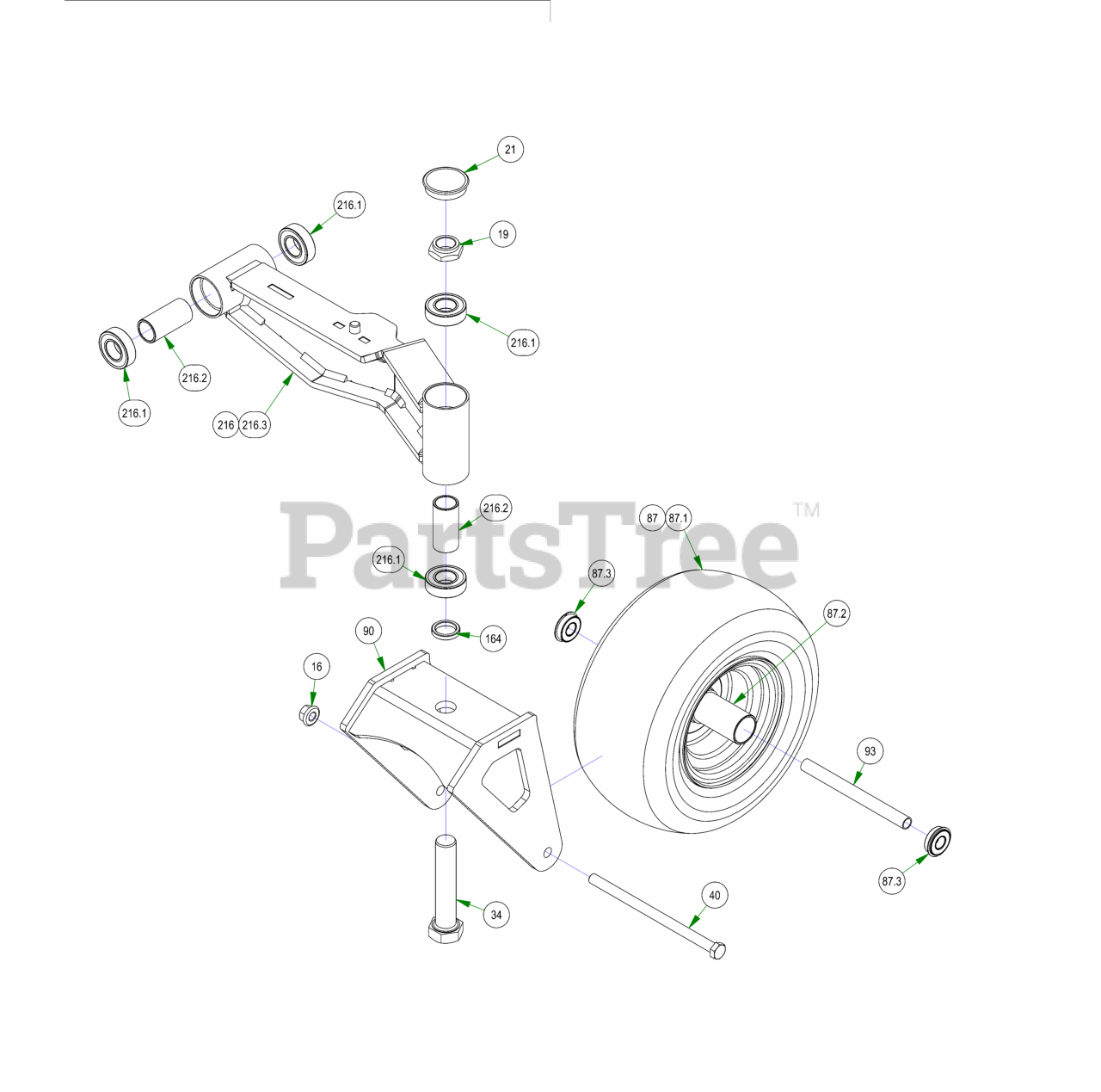

FRONT FORK Parts Diagram

  • Title

16

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

19

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

$

In Stock, Qty 10

0

21

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

34

Bad Boy 018-0005-00

1"-14 X 5 HEX CAP SCREW (GR.8) ZINC YELLOW

$7.99

$

In Stock, only 4 left!

0

40

Bad Boy 018-0040-00

1/2-13 X 8-1/2 HEX CAP SCREW (GR.5) ZINC

$7.49

$

In Stock, Qty 15

0

87

Bad Boy 022-2017-00

13x6.5-6 Black Tire and Wheel Assembly

$100.99

$

In Stock, Qty 13

0

90

Bad Boy 023-1010-00

2019 Stand-on Front Fork Weldment

$166.99

$

In Stock, only 4 left!

0

93

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

164

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 9

0

216

Bad Boy 250-2801-21

2021 Maverick LH Front Suspension Arm Assy (48", 54" & 60")

$151.99

$

Usually ships in 4-7 days

0

87.1

Bad Boy 022-5347-00

13 x 6.50 - 6 Tire

$102.99

$

In Stock, only 2 left!

0

87.2

Bad Boy 022-7007-00

Front Tire Rim

$60.99

$

Usually ships in 4-7 days

0

87.3

Bad Boy 022-7009-00

Ball Bearing w/Retainer, 99502H-NR, .625 Bore x 1.375 OD x .4375 Width

$14.99

$

In Stock, Qty 20+

0

216.1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

216.2

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

216.3

Bad Boy 250-2801-00

2021 Maverick I-Beam Front Arm LH Weldment - Painted

$99.99

$

Usually ships in 4-7 days

0
