Maverick - Bad Boy Zero-Turn Mower (2022) FRAME SUB ASSEMBLIES (CONT.) Parts Diagram

Zero-Turn Mower

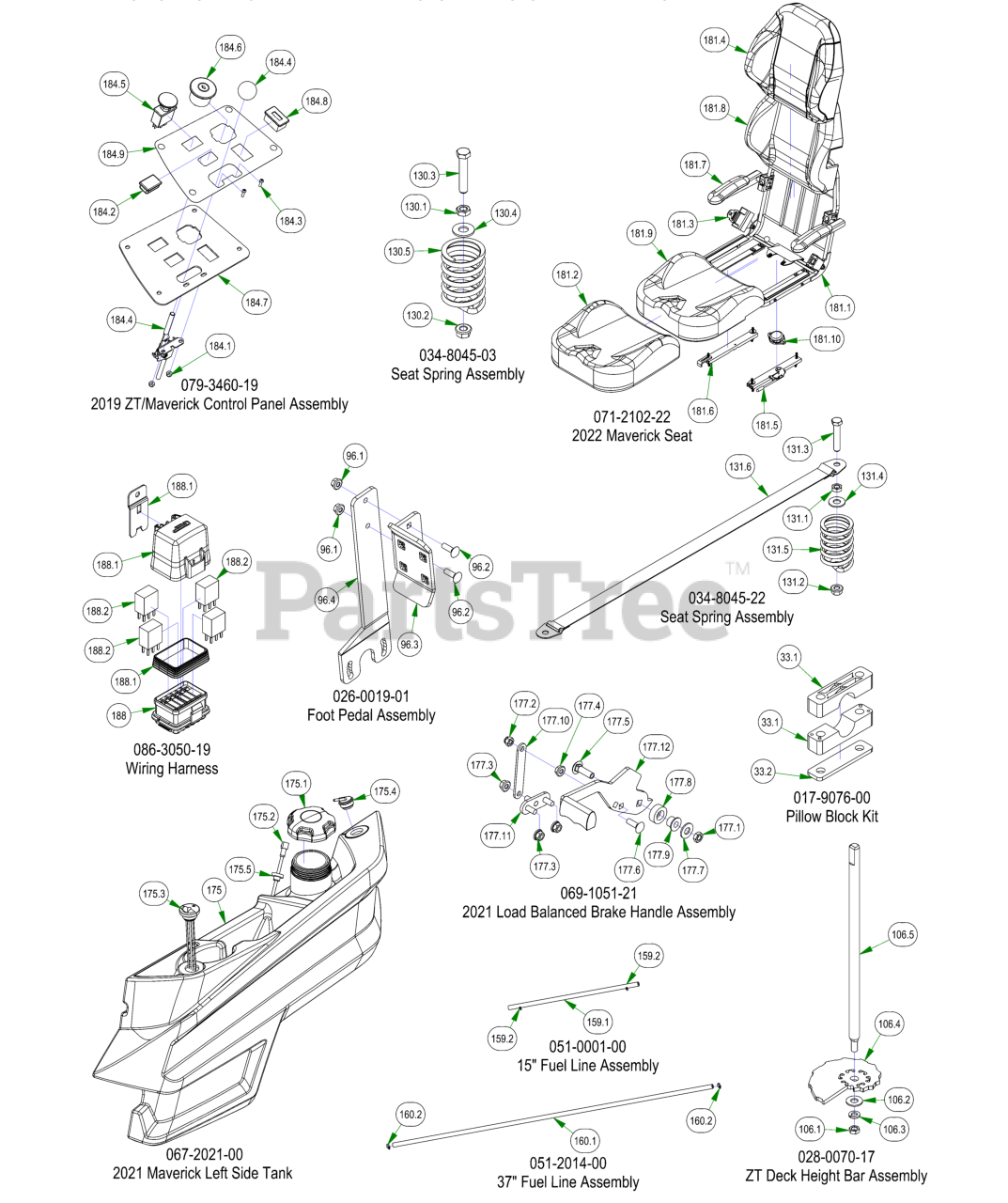

FRAME SUB ASSEMBLIES (CONT.) Parts Diagram

  • Title

33

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

96

Bad Boy 026-0019-01

Foot Pedal Assembly

$99.99

$

Usually ships in 4-7 days

0

106

Bad Boy 028-0070-17

ZT Deck Height Bar Assembly

$31.99

$

Usually ships in 4-7 days

0

130

Bad Boy 034-8045-03

Seat Spring Assembly

$34.99

$

Usually ships in 4-7 days

0

131

Bad Boy 034-8045-22

Seat Spring Assembly

$34.99

$

Usually ships in 4-7 days

0

159

Bad Boy 051-0001-00

15" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

160

Bad Boy 051-2014-00

37" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

175

Bad Boy 067-2021-00

2021 Maverick Left Side Tank

$387.99

$

Usually ships in 4-7 days

0

177

Bad Boy 069-1051-21

2021 Load Balanced Brake Handle Assembly

$75.99

$

Usually ships in 4-7 days

0

181

Bad Boy 071-2102-22

2022 Maverick Seat

$754.99

$

Usually ships in 4-7 days

0

184

Bad Boy 079-3460-19

2019 ZT/Maverick Control Panel Assembly

$164.99

$

Usually ships in 4-7 days

0

188

Bad Boy 086-3050-19

Wiring Harness

$341.99

$

Usually ships in 4-7 days

0

33.1

Bad Boy 017-9077-00

Pillow Block MZ

$22.99

$

Usually ships in 4-7 days

0

33.2

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

0

96.1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

96.2

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

96.3

Bad Boy 026-0019-00

2017 MZ/ZT Shallow Foot Pedal

$33.99

$

Usually ships in 4-7 days

0

96.4

Bad Boy 031-0500-00

2017 MZ/ZT Deck Pedal Lever

$33.99

$

Usually ships in 4-7 days

0

106.1

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

106.2

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

106.3

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

106.4

Bad Boy 026-1100-00

2017 MZ/ZT Cam Plate

$16.99

$

Usually ships in 4-7 days

0

106.5

Bad Boy 028-0014-00

2017 Deck Height Dial Rod ZT

$33.99

$

Usually ships in 4-7 days

0

130.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

130.2

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

130.3

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

130.4

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

130.5

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

131.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

131.2

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

131.3

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

131.4

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

131.5

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

131.6

Bad Boy 064-8083-00

Seat Strap with Buckles

$26.99

$

In Stock, only 3 left!

0

159.1

Bad Boy 051-8067-00

1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0

159.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

160.1

Bad Boy 051-2014-01

37" 1/4 Fuel Line

$20.99

$

Usually ships in 4-7 days

0

160.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

175.1

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 3 left!

0

175.2

Bad Boy 067-0011-00

Pick-Up

$24.99

$

In Stock, only 2 left!

0

175.3

Bad Boy 067-4090-00

Fuel Gauge w/Grommet

$49.99

$

In Stock, Qty 20+

0

175.4

Bad Boy 067-6070-00

Rollover Valve W/Grommet

$26.99

$

In Stock, Qty 20+

0

175.5

Bad Boy 067-6080-00

Pick-Up Grommet

$8.49

$

In Stock, only 3 left!

0

177.1

Bad Boy 013-0012-00

3/8-16 HEX JAM 2-WAY REVERSIBLE CENTER LOCKNUT ZINC

$3.49

$

In Stock, Qty 5

0

177.2

Bad Boy 013-8042-00

5/16-18 NYLON INSERT CAP LOCKNUT ZINC (BLK CAP)

$1.49

$

Usually ships in 4-7 days

0

177.3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

177.4

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

177.5

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

177.6

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

177.7

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

177.8

Bad Boy 025-0001-00

2015 Brake Lever Spacer

$8.49

$

In Stock, Qty 5

0

177.9

Bad Boy 032-5053-00

.377 ID X .625 OD X .500 HGT X .880 FLNG DIA X .060 FLNG THK

$3.49

$

In Stock, only 2 left!

0

181.1

Bad Boy 071-2113-00

400 Series Universal Mount Frame 3/4"

$

$

Currently unavailable

181.2

Bad Boy 071-2114-00

Seat Cover

$113.99

$

Usually ships in 4-7 days

0

181.3

Bad Boy 071-2115-00

Seat Belt Set

$136.99

$

Usually ships in 4-7 days

0

181.4

Bad Boy 071-2116-00

Back Cover

$125.99

$

Usually ships in 4-7 days

0

181.5

Bad Boy 071-2117-00

Bad Boy Seat Slide

$

$

Not available

181.6

Bad Boy 071-2118-00

Bad Boy Slave Slide

$113.99

$

Usually ships in 4-7 days

0

181.7

Bad Boy 071-2119-00

Poly Pad w/ Shorter AFT Bracket

$159.99

$

Usually ships in 4-7 days

0

181.8

Bad Boy 071-5067-01

Seat Back Mold

$68.99

$

Usually ships in 4-7 days

0

181.9

Bad Boy 071-5068-01

Seat Bottom Mold

$

$

Currently unavailable

184.1

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

184.2

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

184.3

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

184.4

Bad Boy 055-8020-00

Throttle Lever Assembly

$41.99

$

In Stock, Qty 20+

0

184.5

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

184.6

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

184.7

Bad Boy 079-3460-00

2014 ZT Control Panel

$25.99

$

Usually ships in 4-7 days

0

184.8

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

184.9

Bad Boy 091-0338-22

Rambler Instrument Panel Decal

$18.99

$

Usually ships in 4-7 days

0

188.1

Bad Boy 086-1202-01

Relay Block Cover Replacement Kit

$19.99

$

Usually ships in 4-7 days

0

188.2

Bad Boy 086-1202-19

Relay

$26.99

$

In Stock, Qty 9

0

177.10

Bad Boy 039-0170-00

Brake Cable Extension Plate

$11.99

$

Usually ships in 4-7 days

0

177.11

Bad Boy 039-0171-00

Brake Load Balancer Lower Weldment

$11.99

$

Usually ships in 4-7 days

0

177.12

Bad Boy 069-1051-00

Load Balanced Brake Handle with Grip

$68.99

$

Usually ships in 4-7 days

0

181.10

Bad Boy 071-5070-00

Seat Switch

$60.99

$

Usually ships in 4-7 days

0
