Bad Boy Maverick - Bad Boy Zero-Turn Mower (2022) FRAME SUB ASSEMBLIES Parts Lookup with Diagrams

99

Bad Boy 026-0205-22

2022 Maverick Rear Cover Assembly

$182.99

$

Usually ships in 4-7 days

143

Bad Boy 039-5944-05

Maverick Pump Idler

$75.99

$

Usually ships in 4-7 days

173

Bad Boy 067-0020-01

ZT/Mav EPA Cannister Assy

$91.99

$

Usually ships in 4-7 days

185

Bad Boy 079-3470-21

2021 Maverick Floorboard Assembly

$148.99

$

Usually ships in 4-7 days

215

Bad Boy 250-2751-21

2021 Maverick RH Short Front Suspension Arm Assy (48")

$227.99

$

Usually ships in 4-7 days

216

Bad Boy 250-2801-21

2021 Maverick LH Front Suspension Arm Assy (48", 54" & 60")

$151.99

$

Usually ships in 4-7 days

217

Bad Boy 250-2851-21

2021 Maverick RH Long Front Suspension Arm Assy (54" & 60")

$170.99

$

Usually ships in 4-7 days

99.1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

99.2

Bad Boy 014-5300-00

2021 Maverick Rear Cover Assembly

$219.99

$

Usually ships in 4-7 days

99.3

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

99.4

Bad Boy 026-0226-00

2022 Maverick Rear Cover Side Plate - Painted

$45.99

$

Usually ships in 4-7 days

143.1

Bad Boy 013-5300-00

1/2-13 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 6

143.2

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

143.3

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

143.4

Bad Boy 018-0015-00

1/2-13 X 2-1/2 HEX CAP SCREW GR 5 ZINC

$3.49

$

Usually ships in 4-7 days

143.5

Bad Boy 018-6016-00

5/8-11 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

143.6

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

143.7

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

143.8

Bad Boy 025-5203-00

.51 ID X .75 OD X .75 LGTH SOLID SPACER ZINC

$3.49

$

In Stock, Qty 17

143.9

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

173.1

Bad Boy 051-2020-01

1/4" Vinyl Tubing, 46" Long

$13.99

$

Usually ships in 4-7 days

173.2

Bad Boy 051-2025-02

3/16" Vinyl Tubing, 55" Long

$13.99

$

Usually ships in 4-7 days

173.3

Bad Boy 067-0020-00

Carbon Canister

$66.99

$

In Stock, only 3 left!

173.4

Bad Boy 072-8070-00

3/16 Vinyl Clamp

$1.99

$

Usually ships in 4-7 days

173.5

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

185.1

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

185.2

Bad Boy 079-3470-18

2018 Maverick Floorboard

$113.99

$

Usually ships in 4-7 days

185.3

Bad Boy 081-4001-00

2021 Maverick Floor Mat W/ Reaper Tread

$56.99

$

Usually ships in 4-7 days

215.1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

215.2

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

215.3

Bad Boy 250-2751-00

2021 Maverick I-Beam Front Arm RH Short Weldment - Painted

$113.99

$

Usually ships in 0 days

216.1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

216.2

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

216.3

Bad Boy 250-2801-00

2021 Maverick I-Beam Front Arm LH Weldment - Painted

$99.99

$

Usually ships in 4-7 days

217.1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

217.2

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

217.3

Bad Boy 250-2851-00

2021 Maverick I-Beam Front Arm RH Long Weldment - Painted

$99.99

$

Usually ships in 4-7 days

143.10

Bad Boy 033-8000-00

5 3/4 Idler Pulley, 5/8 Bore

$37.99

$

In Stock, only 3 left!

143.11

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

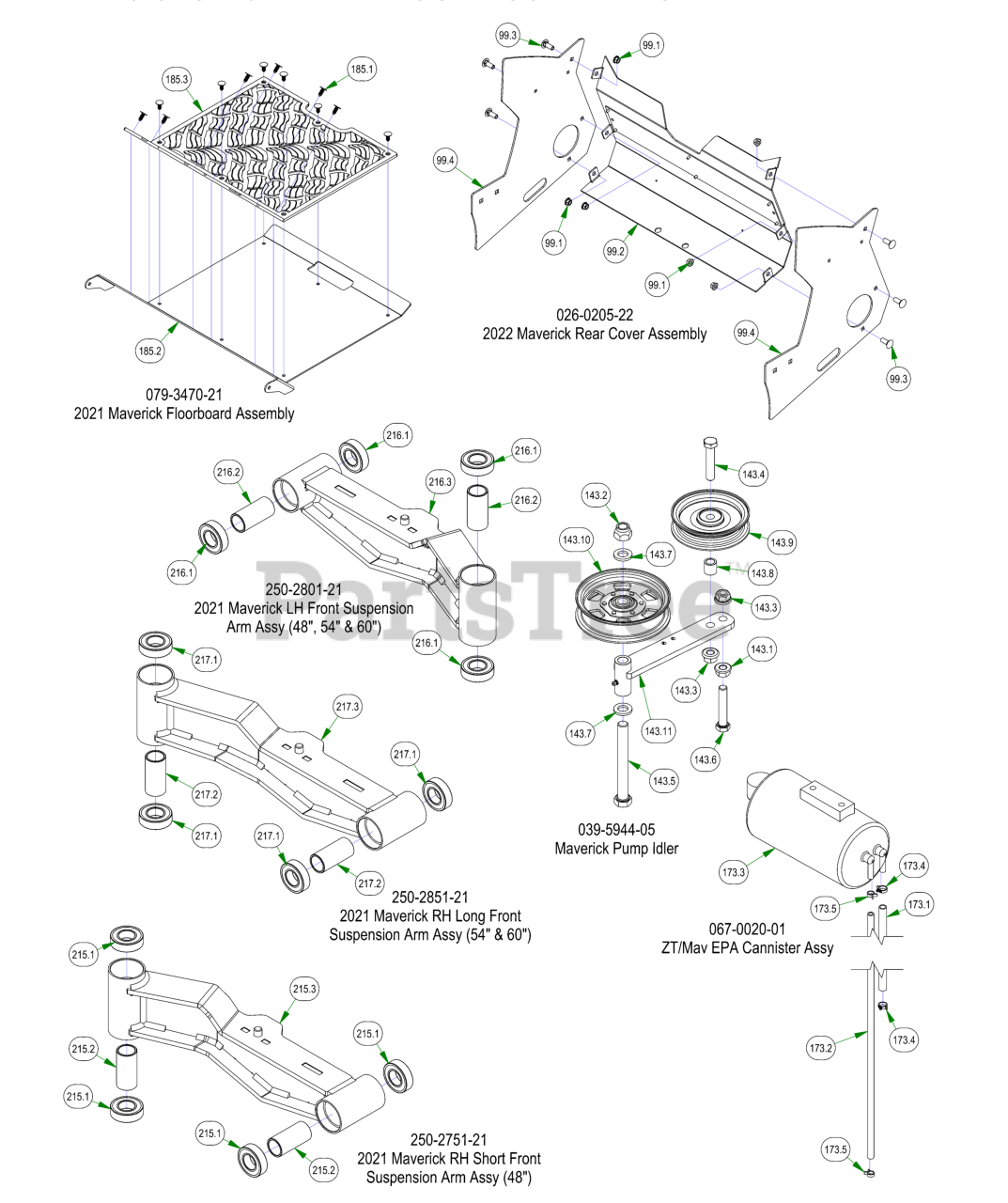

Maverick - Bad Boy Zero-Turn Mower (2022) FRAME SUB ASSEMBLIES Parts Diagram

FRAME SUB ASSEMBLIES Parts Diagram
