Maverick - Bad Boy Zero-Turn Mower (2021) KOHLER 747cc Parts Diagram

Zero-Turn Mower

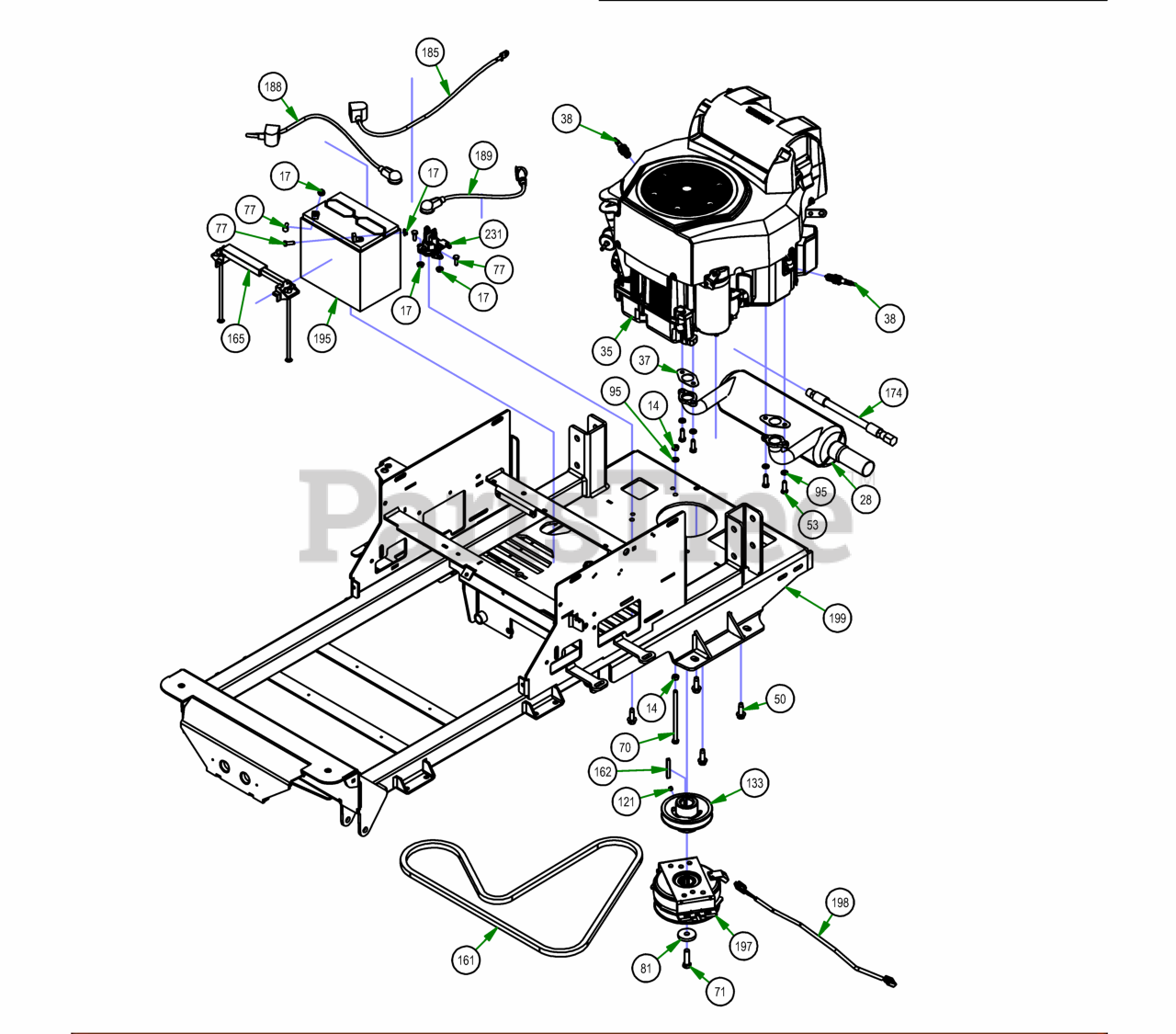

KOHLER 747cc Parts Diagram

  • Title

14

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

17

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

28

Bad Boy 015-0051-00

Kohler Muffler

$247.99

$

In Stock, only 2 left!

0

35

Bad Boy 015-2030-00

Kohler-2014 CZT/Outlaw 747cc

$3190.99

$

Usually ships in 4-7 days

0

37

Bad Boy 015-2751-00

Exhaust Gasket

$6.99

$

In Stock, only 3 left!

0

38

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

50

Bad Boy 018-1075-00

3/8-16 X 1-1/8 HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS ZINC YELLOW

$1.99

$

In Stock, Qty 11

0

53

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

70

Bad Boy 018-5350-00

5/16-18 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 2 left!

0

71

Bad Boy 018-5450-00

7/16-20 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$2.49

$

In Stock, only 3 left!

0

77

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

81

Bad Boy 019-0010-00

CLUTCH WASHER

$6.49

$

In Stock, only 4 left!

0

95

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

121

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

133

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

161

Bad Boy 041-7400-00

75.8" Pump Belt

$68.99

$

In Stock, Qty 16

0

162

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

165

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, Qty 9

0

174

Bad Boy 051-5401-00

Oil drain Hose

$33.99

$

In Stock, only 4 left!

0

185

Bad Boy 064-0030-00

24 inch Black Cable – MZ/ZT

$19.99

$

Usually ships in 4-7 days

0

188

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

189

Bad Boy 064-5301-00

12" Red Battery Cable

$18.99

$

In Stock, only 2 left!

0

195

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

197

Bad Boy 070-0056-00

Clutch

$415.99

$

In Stock, only 3 left!

0

198

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

199

Bad Boy 070-5491-00

2021 Maverick Frame - Painted

$

$

Not available

213

Bad Boy 091-0019-00

Patent Decal

$3.99

$

Usually ships in 0 days

0

231

Bad Boy 108-0001-00

Solenoid

$31.99

$

In Stock, Qty 10

0
