Maverick - Bad Boy Zero-Turn Mower (2021) FRAME SUB ASSEMBLIES (CONT.) Parts Diagram

Zero-Turn Mower

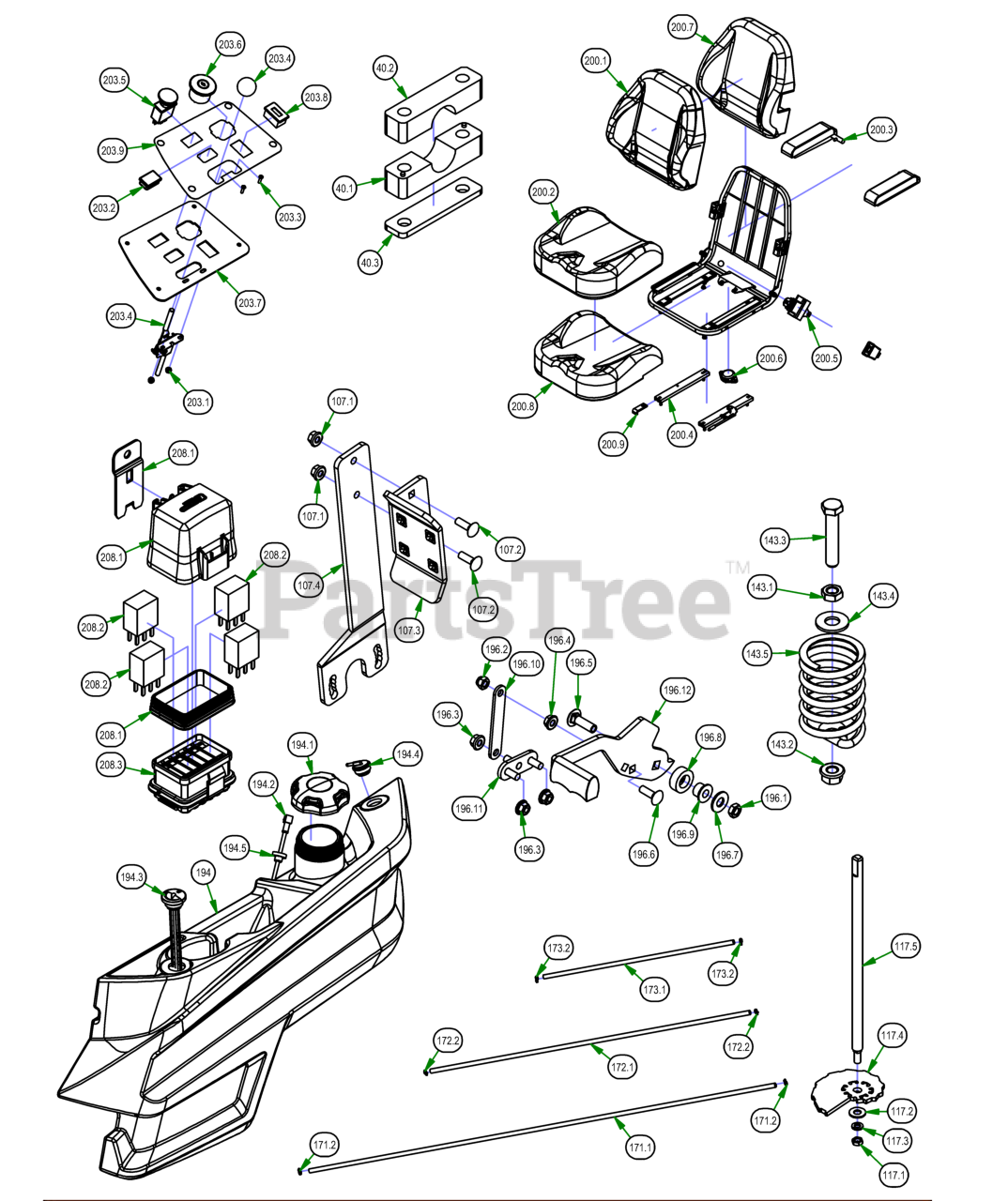

FRAME SUB ASSEMBLIES (CONT.) Parts Diagram

  • Title

40

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

107

Bad Boy 026-0019-01

Foot Pedal Assembly

$99.99

$

Usually ships in 4-7 days

0

117

Bad Boy 028-0070-17

ZT Deck Height Bar Assembly

$31.99

$

Usually ships in 4-7 days

0

143

Bad Boy 034-8045-03

Seat Spring Assembly

$34.99

$

Usually ships in 4-7 days

0

171

Bad Boy 051-0054-00

Honda Maverick Fuel Line Assembly

$22.99

$

Usually ships in 0 days

0

172

Bad Boy 051-2014-00

37" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

173

Bad Boy 051-2015-00

2015 ZT KawaFuel Line Assy-22"

$32.99

$

Usually ships in 4-7 days

0

194

Bad Boy 067-2021-00

2021 Maverick Left Side Tank

$387.99

$

Usually ships in 4-7 days

0

196

Bad Boy 069-1051-21

2021 Load Balanced Brake Handle Assembly

$75.99

$

Usually ships in 4-7 days

0

200

Bad Boy 071-2102-00

2021 Maverick Seat

$754.99

$

Usually ships in 4-7 days

0

203

Bad Boy 079-3460-19

2019 ZT/Maverick Control Panel Assembly

$164.99

$

Usually ships in 4-7 days

0

208

Bad Boy 086-3050-19

Wiring Harness

$341.99

$

Usually ships in 4-7 days

0

40.1

Bad Boy 017-9077-00

Pillow Block MZ male

$22.99

$

Usually ships in 4-7 days

0

40.2

Bad Boy 017-9078-00

Pillow Block MZ female

$22.99

$

Usually ships in 0 days

0

40.3

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

0

107.1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

107.2

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

107.3

Bad Boy 026-0019-00

2017 MZ/ZT Shallow Foot Pedal

$33.99

$

Usually ships in 4-7 days

0

107.4

Bad Boy 031-0500-00

2017 MZ/ZT Deck Pedal Lever

$33.99

$

Usually ships in 4-7 days

0

117.1

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

117.2

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

117.3

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

117.4

Bad Boy 026-1100-00

2017 MZ/ZT Cam Plate

$16.99

$

Usually ships in 4-7 days

0

117.5

Bad Boy 028-0014-00

2017 Deck Height Dial Rod ZT

$33.99

$

Usually ships in 4-7 days

0

143.1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

143.2

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

143.3

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

143.4

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

143.5

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

171.1

Bad Boy 051-8067-00

1/4 Fuel Line, 54"

$6.99

$

In Stock, only 3 left!

0

171.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

172.1

Bad Boy 051-2014-01

37" 1/4 Fuel Line

$20.99

$

Usually ships in 4-7 days

0

172.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

173.1

Bad Boy 051-8067-00

1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0

173.2

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

194.1

Bad Boy 066-8083-00

Fuel Cap

$25.99

$

In Stock, only 3 left!

0

194.2

Bad Boy 067-0011-00

Pick-Up

$24.99

$

In Stock, only 2 left!

0

194.3

Bad Boy 067-4090-00

Fuel Gauge w/Grommet

$49.99

$

In Stock, Qty 20+

0

194.4

Bad Boy 067-6070-00

Rollover Valve W/Grommet

$26.99

$

In Stock, Qty 20+

0

194.5

Bad Boy 067-6080-00

Pick-Up Grommet

$8.49

$

In Stock, only 3 left!

0

196.1

Bad Boy 013-0012-00

3/8-16 HEX JAM 2-WAY REVERSIBLE CENTER LOCKNUT ZINC

$3.49

$

In Stock, Qty 5

0

196.2

Bad Boy 013-8042-00

5/16-18 NYLON INSERT CAP LOCKNUT ZINC (BLK CAP)

$1.49

$

Usually ships in 4-7 days

0

196.3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

196.4

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

196.5

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

196.6

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

196.7

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

196.8

Bad Boy 025-0001-00

2015 Brake Lever Spacer

$8.49

$

In Stock, Qty 5

0

196.9

Bad Boy 032-5053-00

.377 ID X .625 OD X .500 HGT X .880 FLNG DIA X .060 FLNG THK

$3.49

$

In Stock, only 2 left!

0

200.1

Bad Boy 071-2102-03

Back Cover for 071-2102-00

$166.99

$

Usually ships in 4-7 days

0

200.2

Bad Boy 071-2102-02

Seat Cover for 071-2101-00/071-2102-00

$149.99

$

Usually ships in 4-7 days

0

200.3

Bad Boy 071-2054-00

2017 ZT/Maverick/2020 ZTElite/Avenger Arm Rest Kit

$159.99

$

Usually ships in 0 days

0

200.4

Bad Boy 071-5015-00

Seat Rails for Outlaw Seat/2020 ZT Elite/ZTAvenger

$99.99

$

In Stock, only 3 left!

0

200.5

Bad Boy 071-5083-00

Seat Belt for 071-5080-17

$121.99

$

Usually ships in 4-7 days

0

200.6

Bad Boy 071-8061-00

13/14 MZ/Outlaw Seat Switch

$20.99

$

In Stock, only 3 left!

0

200.7

Bad Boy 071-2102-01

Foam Molded Back for 071-2102-00

$74.99

$

Usually ships in 4-7 days

0

200.8

Bad Boy 071-2042-01

Seat Cover Molded Foam for 071-2040-18/071-5080-18

$105.99

$

Usually ships in 4-7 days

0

200.9

Bad Boy 039-2157-00

Black Seat stop from Seat King

$15.99

$

Usually ships in 4-7 days

0

203.1

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut Zinc Orange Nylon

$0.99

$

In Stock, only 2 left!

0

203.2

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

203.3

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

203.4

Bad Boy 055-8020-00

Throttle Lever Assembly

$41.99

$

In Stock, Qty 20+

0

203.5

Bad Boy 056-8058-00

PTO Engager

$36.99

$

In Stock, Qty 20+

0

203.6

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

203.7

Bad Boy 079-3460-00

Control Panel

$25.99

$

Usually ships in 4-7 days

0

203.8

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

203.9

Bad Boy 091-0338-18

2018 MZ/Magnum/ZT/Maverick Control Panel Decal

$15.99

$

Usually ships in 4-7 days

0

208.1

Bad Boy 086-1202-01

Relay Block Cover Replacement Kit

$19.99

$

Usually ships in 4-7 days

0

208.2

Bad Boy 086-1202-19

Relay

$26.99

$

In Stock, Qty 9

0

208.3

Bad Boy 086-3050-19

Wiring Harness

$341.99

$

Usually ships in 4-7 days

0

196.10

Bad Boy 039-0170-00

Brake Cable Extension Plate

$11.99

$

Usually ships in 4-7 days

0

196.11

Bad Boy 039-0171-00

Brake Load Balancer Lower Weldment

$11.99

$

Usually ships in 4-7 days

0

196.12

Bad Boy 069-1051-00

Load Balanced Brake Handle with Grip

$68.99

$

Usually ships in 4-7 days

0
