Maverick - Bad Boy Zero-Turn Mower (2021) DRIVE ARM SUBASSEMBLIES Parts Diagram

Zero-Turn Mower

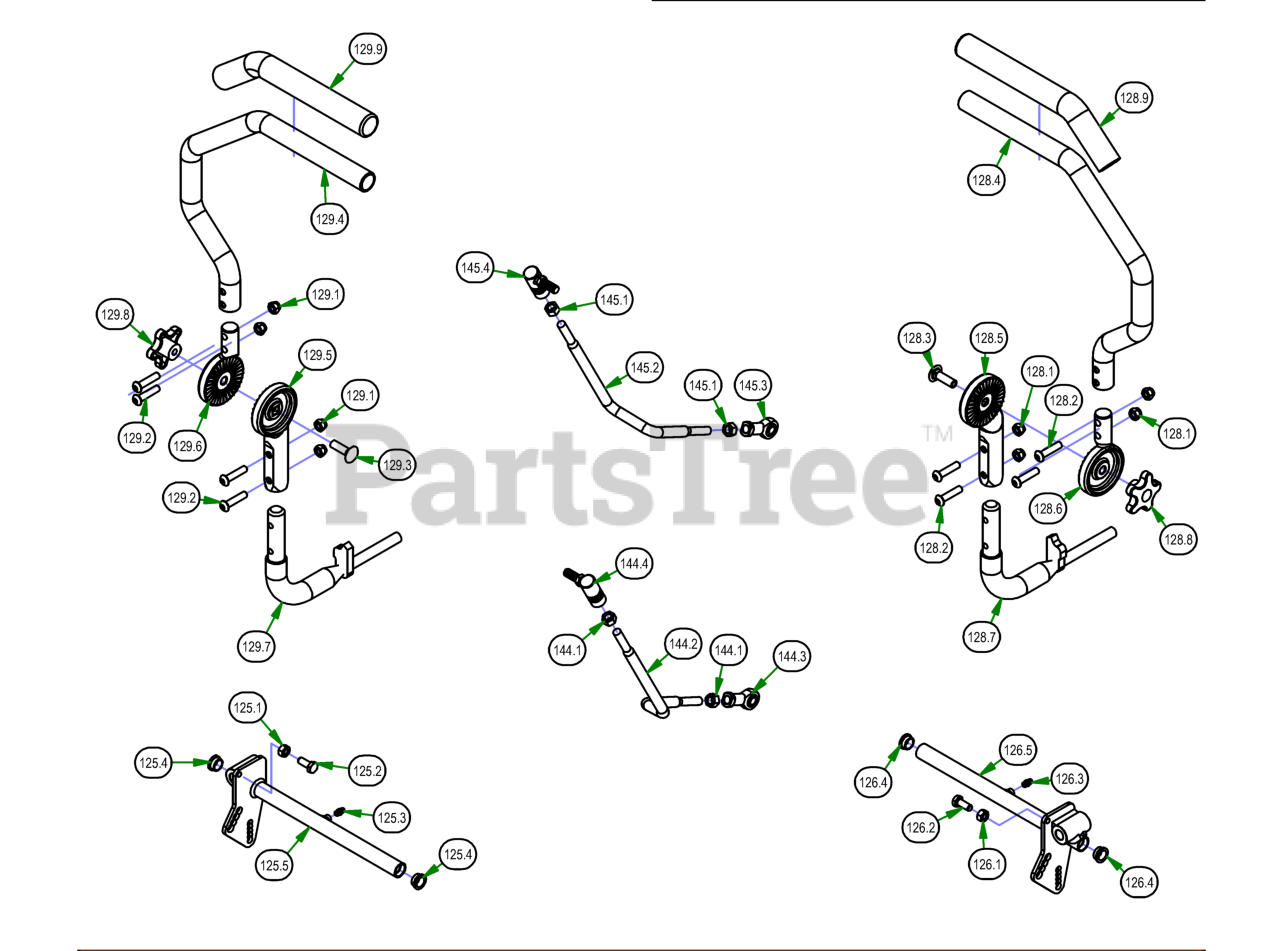

DRIVE ARM SUBASSEMBLIES Parts Diagram

  • Title

125

Bad Boy 031-0053-21

2021 Maverick Drive Arm Actuator RH Assembly

$45.99

$

Usually ships in 4-7 days

0

126

Bad Boy 031-0054-21

2021 Maverick Drive Arm Actuator LH Assembly

$45.99

$

Usually ships in 4-7 days

0

128

Bad Boy 031-9000-18

2018 Adjustable Steering Arm - Left

$164.99

$

Usually ships in 4-7 days

0

129

Bad Boy 031-9050-18

2018 Adjustable Steering Arm - Right

$164.99

$

Usually ships in 4-7 days

0

144

Bad Boy 035-5450-00

Push Rod-Right

$36.99

$

Usually ships in 4-7 days

0

145

Bad Boy 035-5451-00

Push Rod-Left

$45.99

$

Usually ships in 4-7 days

0

125.1

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

125.2

Bad Boy 018-8063-00

5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

125.3

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

125.4

Bad Boy 031-0032-00

2019 Drive Arm Bushing

$7.99

$

Usually ships in 4-7 days

0

125.5

Bad Boy 031-0053-00

2021 Drive Actuator RH Weldment

$

$

Not available

126.1

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

126.2

Bad Boy 018-8063-00

5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

126.3

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

126.4

Bad Boy 031-0032-00

2019 Drive Arm Bushing

$7.99

$

Usually ships in 4-7 days

0

126.5

Bad Boy 031-0054-00

2021 Drive Actuator LH Weldment

$

$

Not available

128.1

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

128.2

Bad Boy 018-2020-18

5/16-18 UNC X 1-3/8" BHCS, TORX DRIVE, GR 5

$1.99

$

In Stock, Qty 5

0

128.3

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

128.4

Bad Boy 031-9010-18

Upper Tube-Adjustable Steering

$30.99

$

Usually ships in 4-7 days

0

128.5

Bad Boy 031-9014-18

2018 Lower Adjuster - Steering Arm- Left

$56.99

$

Usually ships in 4-7 days

0

128.6

Bad Boy 031-9017-18

2018 Upper Adjuster - Steering Arm- Left

$56.99

$

Usually ships in 4-7 days

0

128.7

Bad Boy 031-9020-18

Steering Arm Elbow (Left)

$90.99

$

Usually ships in 4-7 days

0

128.8

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

128.9

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0

129.1

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

129.2

Bad Boy 018-2020-18

5/16-18 UNC X 1-3/8" BHCS, TORX DRIVE, GR 5

$1.99

$

In Stock, Qty 5

0

129.3

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

129.4

Bad Boy 031-9010-18

Upper Tube-Adjustable Steering

$30.99

$

Usually ships in 4-7 days

0

129.5

Bad Boy 031-9015-18

2018 Lower Adjuster - Steering Arm- Right

$56.99

$

Usually ships in 4-7 days

0

129.6

Bad Boy 031-9016-18

2018 Upper Adjuster - Steering Arm- Right

$56.99

$

Usually ships in 4-7 days

0

129.7

Bad Boy 031-9025-18

Steering Arm Elbow (Right)

$90.99

$

Usually ships in 4-7 days

0

129.8

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

129.9

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0

144.1

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

144.2

Bad Boy 035-5450-00

Push Rod - Right

$36.99

$

Usually ships in 4-7 days

0

144.3

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

144.4

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0

145.1

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

145.2

Bad Boy 035-5451-00

Push Rod - Left

$45.99

$

Usually ships in 4-7 days

0

145.3

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

145.4

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0
