Maverick - Bad Boy Zero-Turn Mower (2020) LOWER FRAME ASSEMBLY Parts Diagram

Zero-Turn Mower

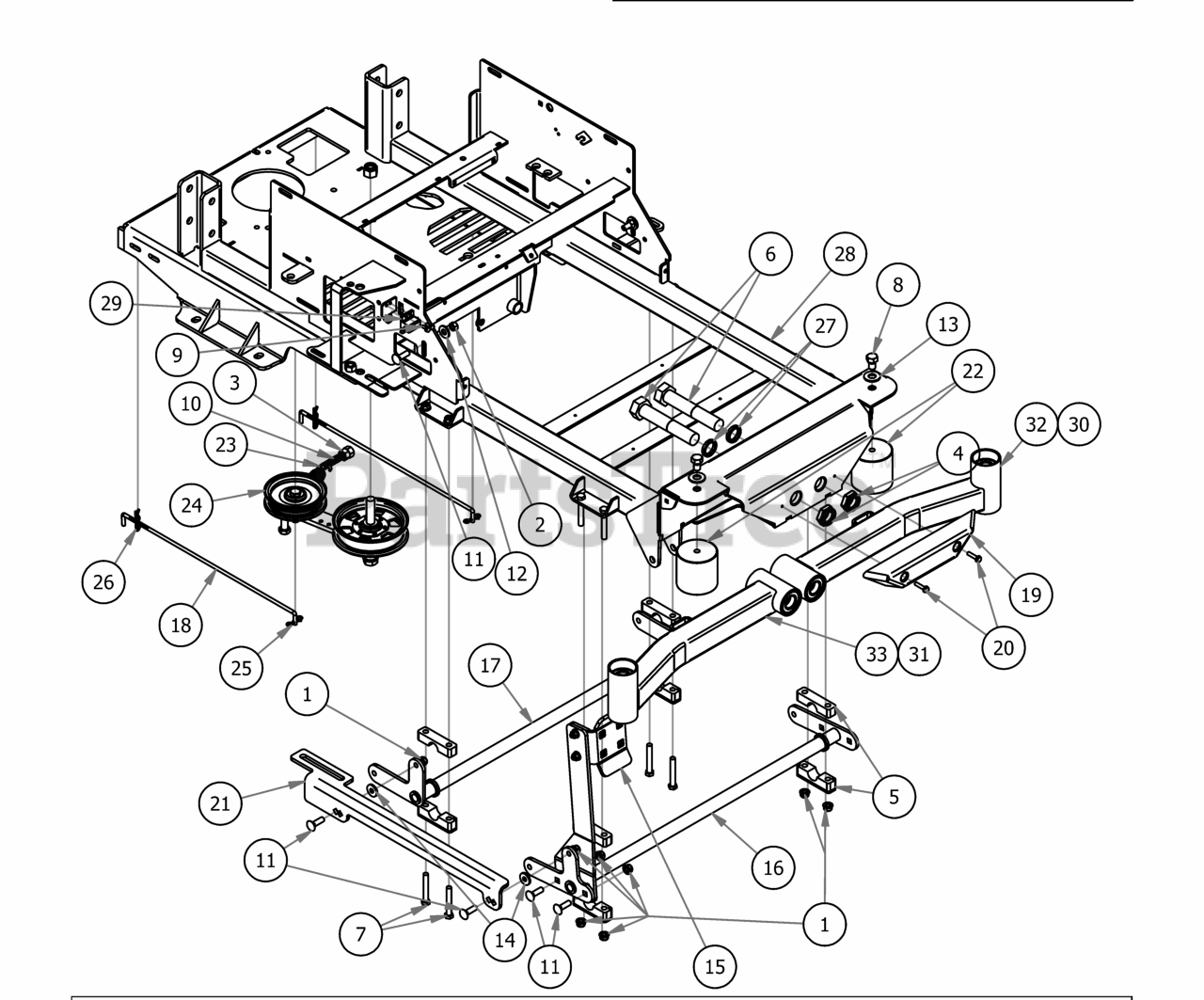

LOWER FRAME ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

3

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

4

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 10

0

5

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

6

Bad Boy 018-0026-00

1-14 x 5.5 Hex Bolt Grade 8 Zinc Yellow

$14.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-0028-00

3/8-16 x 2 1/2" Hex Bolt

$4.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-1055-00

1/2" x 3/4" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-1080-00

12-24x 1/2 HWH Bolt

$2.49

$

Usually ships in 4-7 days

0

10

Bad Boy 018-2004-50

All Thread-Pump Idler Tensioner

$13.99

$

In Stock, Qty 6

0

11

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

12

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

13

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 1 left!

0

14

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

0

15

Bad Boy 026-0019-01

Foot Pedal Assembly

$99.99

$

Usually ships in 4-7 days

0

16

Bad Boy 028-0002-00

Actuator Bar Front- 2017 MZ/ZT

$83.99

$

Usually ships in 4-7 days

0

17

Bad Boy 028-0003-00

Actuator Bar Rear- 2017 MZ/ZT

$83.99

$

Usually ships in 4-7 days

0

18

Bad Boy 028-0070-00

Neutral Rod

$13.99

$

Usually ships in 4-7 days

0

19

Bad Boy 029-7040-00

Front Bumper

$33.99

$

Usually ships in 4-7 days

0

20

Bad Boy 030-7040-00

1/4 x 1 Hex Head Tek screw

$1.49

$

Usually ships in 4-7 days

0

21

Bad Boy 031-0510-00

2017 MZ/ZT Actuator Linkage

$49.99

$

Usually ships in 4-7 days

0

22

Bad Boy 032-9002-00

Vibration Mount- Red Dot

$75.99

$

In Stock, only 3 left!

0

23

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

24

Bad Boy 039-5944-05

Maverick Pump Idler

$75.99

$

Usually ships in 4-7 days

0

25

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

26

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

0

27

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 9

0

28

Bad Boy 070-5490-18

2018 Maverick Frame

$

$

Currently unavailable

29

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 20+

0

30

Bad Boy 250-2700-00

2018 Maverick Suspension Arm Assembly-Left Short (48" Deck Only)

$

$

Not available

31

Bad Boy 250-2750-00

2018 Maverick Suspension Arm Assembly-Right Short (48" Deck Only)

$

$

Currently unavailable

32

Bad Boy 250-2800-98

2018 Maverick Suspension Arm Assembly-Long, Left

$99.99

$

Usually ships in 4-7 days

0

33

Bad Boy 250-2850-98

2018 Maverick Suspension Arm Assembly-Long, Right

$99.99

$

Usually ships in 4-7 days

0
