Maverick - Bad Boy Zero-Turn Mower (2020) FRONT FORK ASSEMBLY Parts Diagram

Zero-Turn Mower

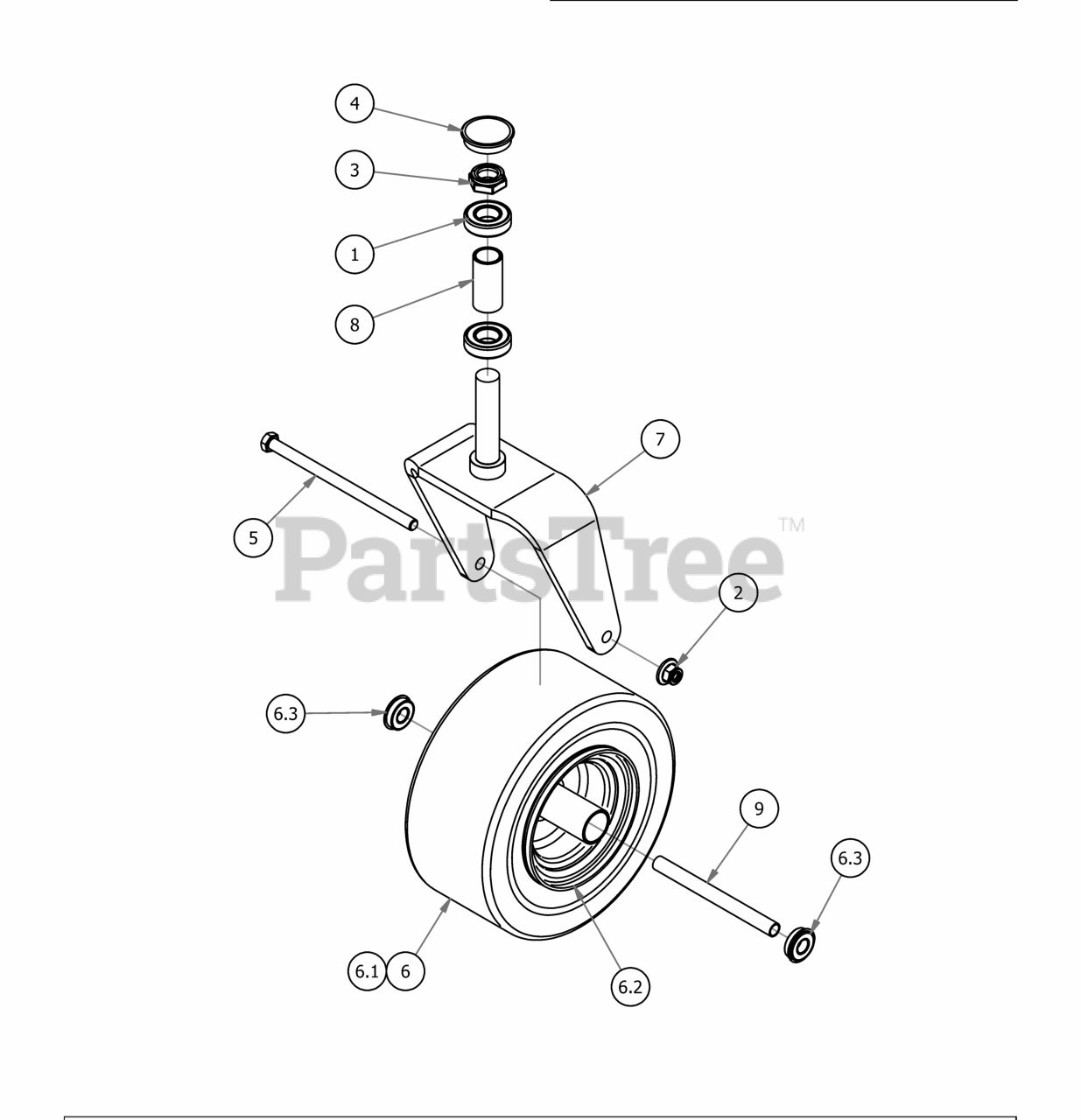

FRONT FORK ASSEMBLY Parts Diagram

  • Title
1

Bad Boy 010-1050-00

Caster Bearing 2016 - 1641 Bearing

$19.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 10

0

4

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 15

0

5

Bad Boy 018-7010-00

1/2" x 9" GR 5 Hex Bolt

$6.49

$

In Stock, Qty 17

0

6

Bad Boy 022-2017-00

Tire and Wheel Assembly

$100.99

$

In Stock, Qty 13

0

7

Bad Boy 023-7913-00

Front Fork

$148.99

$

In Stock, only 4 left!

0

8

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

9

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

6.1

Bad Boy 022-5347-00

13 x 6.50 - 6 Tire

$102.99

$

In Stock, only 2 left!

0

6.2

Bad Boy 022-7007-00

Front Tire Rim

$60.99

$

Usually ships in 4-7 days

0

6.3

Bad Boy 022-7009-00

BEARING WITH RETAINER

$14.99

$

In Stock, Qty 20+

0
