Maverick - Bad Boy Zero-Turn Mower (2019) ENGINE - 747cc KOHLER Parts Diagram

Zero-Turn Mower

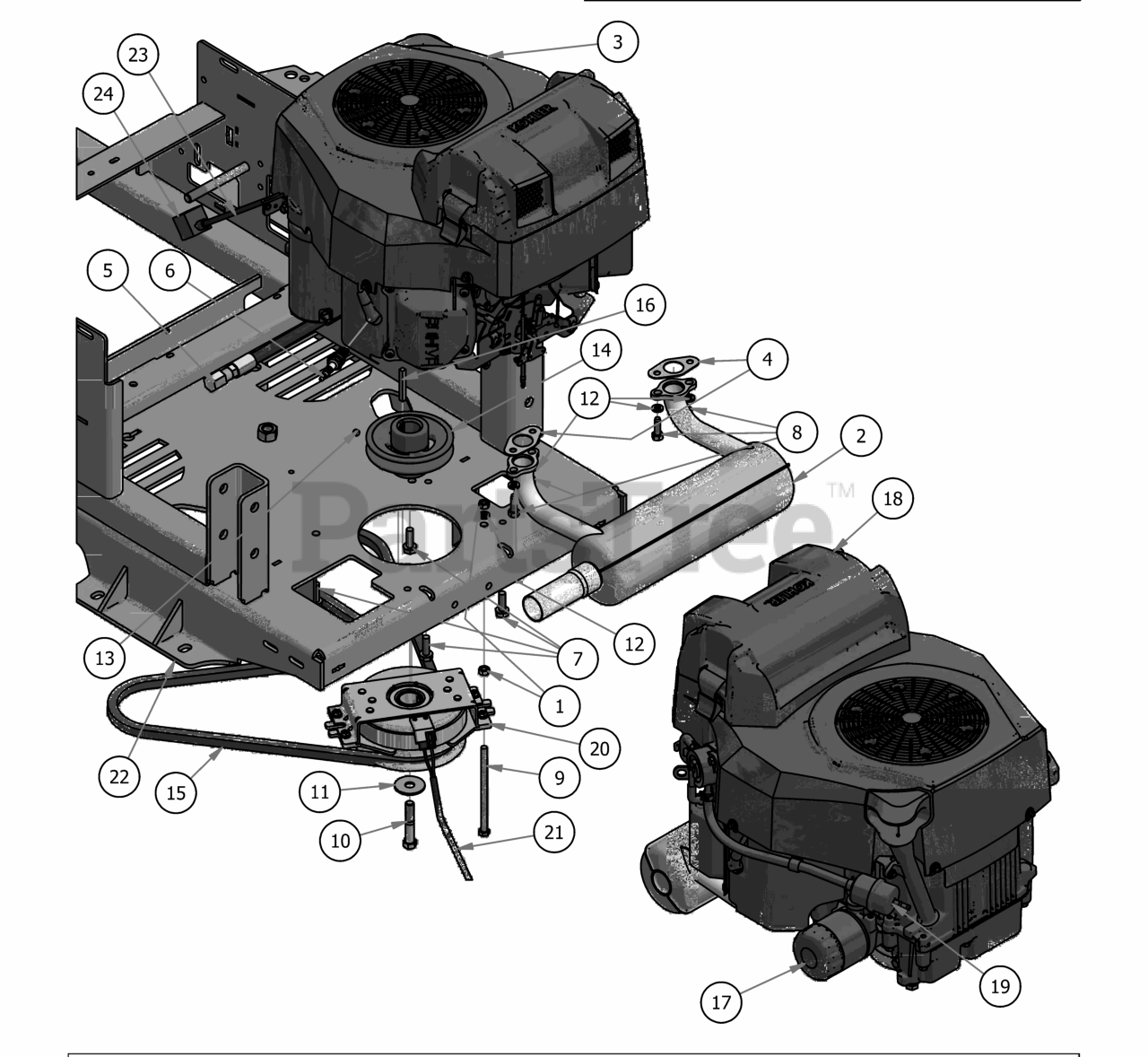

ENGINE - 747cc KOHLER Parts Diagram

  • Title

1

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, Qty 5

0

2

Bad Boy 015-0051-00

Kohler Muffler

$247.99

$

In Stock, only 2 left!

0

3

Bad Boy 015-2030-00

Kohler 747cc Engine

$3190.99

$

Usually ships in 4-7 days

0

4

Bad Boy 015-2751-00

Exhaust Gasket

$6.99

$

In Stock, only 3 left!

0

5

Bad Boy 051-5401-00

Oil drain Valve

$33.99

$

In Stock, only 4 left!

0

6

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

7

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, Qty 11

0

8

Bad Boy 018-2007-00

5/16-18 x 1 GR 5 Hex Bolt Zinc

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 018-5350-00

5/16-18 x 5-1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 2 left!

0

10

Bad Boy 018-5450-00

7/16"-20 x 2.5" Hex Bolt Gr. 8

$2.49

$

In Stock, only 3 left!

0

11

Bad Boy 019-6020-00

1/2" Belleville Washer

$5.49

$

In Stock, Qty 20+

0

12

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

13

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 2 left!

0

15

Bad Boy 041-7400-00

75.8 Pump Belt

$68.99

$

In Stock, Qty 16

0

16

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 1 left!

0

17

Bad Boy 063-5000-00

725 & 747 Kohler Oil Filter

$23.99

$

In Stock, Qty 6

0

18

Bad Boy 063-5005-00

725 Kohler air filter

$53.99

$

In Stock, Qty 7

0

19

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 19

0

20

Bad Boy 070-0056-00

Clutch

$415.99

$

In Stock, only 3 left!

0

21

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

22

Bad Boy 070-5490-18

2018 Maverick Frame

$

$

Currently unavailable

23

Bad Boy 086-0005-00

Ground Cable

$10.99

$

Usually ships in 4-7 days

0

24

Bad Boy 103-5400-00

Black Boot For Ground Cable

$4.99

$

Usually ships in 4-7 days

0
