Bad Boy Maverick - Bad Boy Zero-Turn Mower (2018) MAVERICK LOWER FRAME ASSEMBLY Parts Lookup with Diagrams

1

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

2

Bad Boy 035-7033-00

Actuator

$465.99

$

Usually ships in 4-7 days

3

Bad Boy 025-7036-00

1/2 x 1/2 Spacer

$4.99

$

In Stock, only 2 left!

4

Bad Boy 018-6036-00

1/2 x 2-3/4 Hex Bolt

$1.99

$

In Stock, only 4 left!

5

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$1.99

$

In Stock, Qty 20+

6

Bad Boy 031-0060-00

ZT Neutral level rod 2011

$15.99

$

Usually ships in 4-7 days

7

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

8

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

9

Bad Boy 030-7040-00

1/4 x 1 Hex Head Tek screw

$1.49

$

Usually ships in 4-7 days

10

Bad Boy 070-5490-18

2018 Maverick Frame

$

Currently unavailable 

11

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 4 left!

12

Bad Boy 010-1050-00

Caster Bearing 2016 - 1641 Bearing

$19.99

$

In Stock, Qty 20+

13

Bad Boy 032-9002-00

Vibration Mount- Red Dot

$75.99

$

In Stock, only 3 left!

14

Bad Boy 018-1055-00

1/2" x 3/4" Hex Bolt

$3.49

$

Usually ships in 4-7 days

15

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 1 left!

16

Bad Boy 018-0026-00

1-14 x 5.5 Hex Bolt Grade 8 Zinc Yellow

$14.99

$

Usually ships in 4-7 days

17

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 8

18

Bad Boy 029-7040-00

Front Bumper

$33.99

$

Usually ships in 4-7 days

19

Bad Boy 014-3010-00

5/8 Round Insert

$1.99

$

Usually ships in 4-7 days

20

Bad Boy 018-2004-50

All Thread-Pump Idler Tensioner

$13.99

$

In Stock, Qty 5

21

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

22

Bad Boy 058-1000-00

1" x .25" Spacer

$6.99

$

In Stock, Qty 5

23

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 20+

24

Bad Boy 018-1080-00

12-24x 1/2 HWH Bolt

$2.49

$

Usually ships in 4-7 days

25

Bad Boy 250-2800-00

2018 Maverick Suspension Arm Assembly-Left Long

$99.99

$

Usually ships in 4-7 days

26

Bad Boy 250-2850-00

2018 Maverick Suspension Arm Assembly-Right Long

$75.99

$

Usually ships in 4-7 days

27

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

28

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

29

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

30

Bad Boy 028-0002-00

Actuator Bar Front- 2017 MZ/ZT

$83.99

$

Usually ships in 4-7 days

31

Bad Boy 028-0003-00

Actuator Bar Rear- 2017 MZ/ZT

$83.99

$

Usually ships in 4-7 days

32

Bad Boy 018-0028-00

3/8-16 x 2 1/2" Hex Bolt

$4.99

$

Usually ships in 4-7 days

33

Bad Boy 013-5202-00

3/8 Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

34

Bad Boy 031-0510-00

2017 MZ/ZT Actuator Linkage

$49.99

$

Usually ships in 4-7 days

35

Bad Boy 032-4051-00

Snubbing Washer

$18.99

$

Usually ships in 4-7 days

36

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

37

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

38

Bad Boy 039-5944-05

EZT Pump Idler

$75.99

$

Usually ships in 4-7 days

39

Bad Boy 250-2700-00

2018 Maverick Suspension Arm Assembly-Left Short (48" Deck Only)

$

Not available 

40

Bad Boy 250-2750-00

2018 Maverick Suspension Arm Assembly-Right Short (48" Deck Only)

$

Currently unavailable 

36.1

Bad Boy 017-9077-00

Pillow Block MZ male

$22.99

$

Usually ships in 4-7 days

36.2

Bad Boy 017-9078-00

Pillow Block MZ female

$22.99

$

Usually ships in 0 days

36.3

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

38.1

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, Qty 20+

38.2

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 4 left!

38.3

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

38.4

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

38.5

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

38.6

Bad Boy 033-7201-00

5-3/4 Idler Pulley-Don Dye

$37.99

$

In Stock, Qty 20+

38.7

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 17

38.8

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

38.9

Bad Boy 018-6016-00

5/8" x 5 1/2 Hex Bolt

$3.49

$

Usually ships in 4-7 days

38.10

Bad Boy 018-0015-00

1/2" x 3" Hex Bolt

$3.49

$

Usually ships in 4-7 days

38.11

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

38.12

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

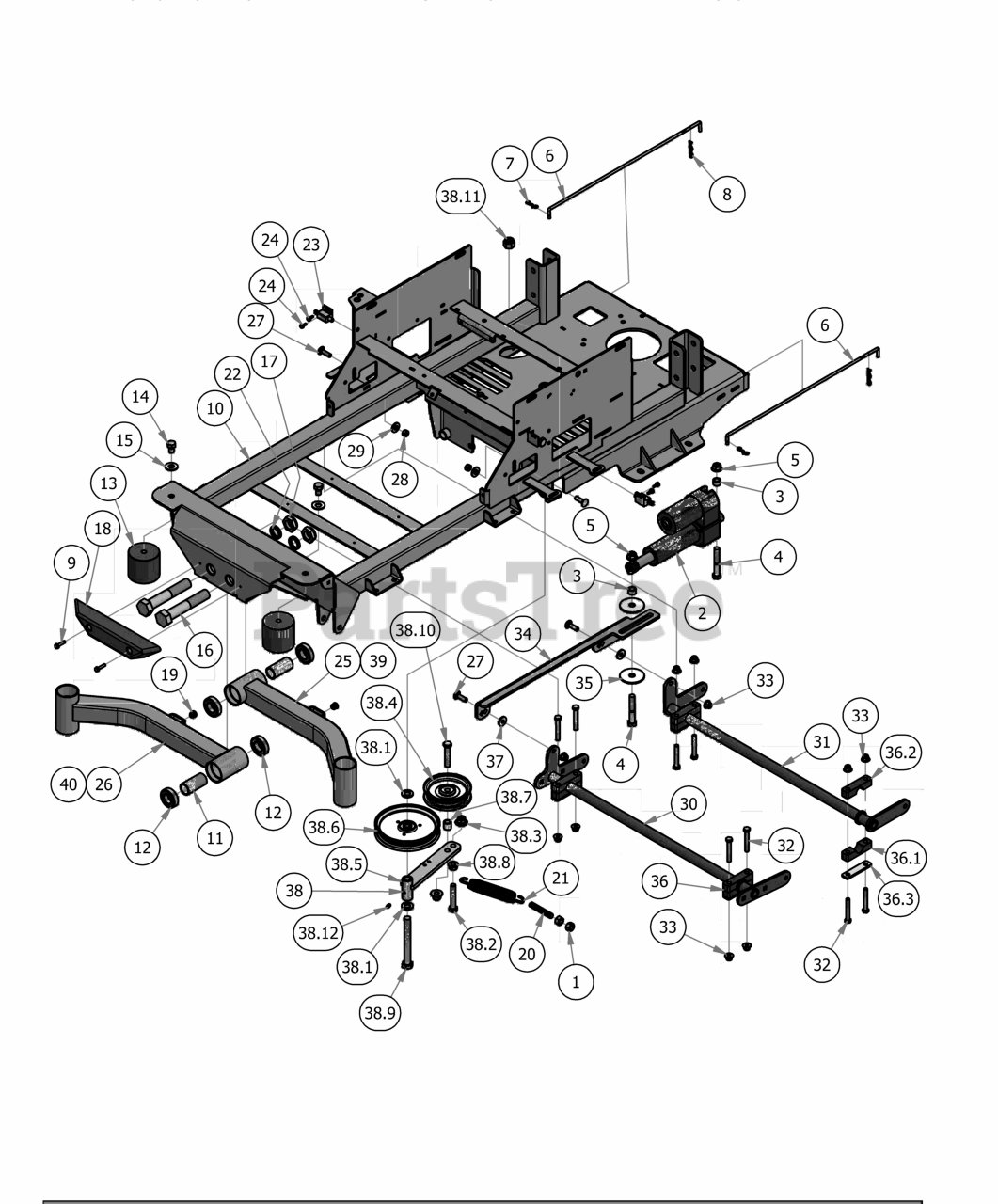

Maverick - Bad Boy Zero-Turn Mower (2018) MAVERICK LOWER FRAME ASSEMBLY Parts Diagram

MAVERICK LOWER FRAME ASSEMBLY Parts Diagram
