Maverick - Bad Boy Zero-Turn Mower (2018) DECK SUB-ASSEMBLIES Parts Diagram

Zero-Turn Mower

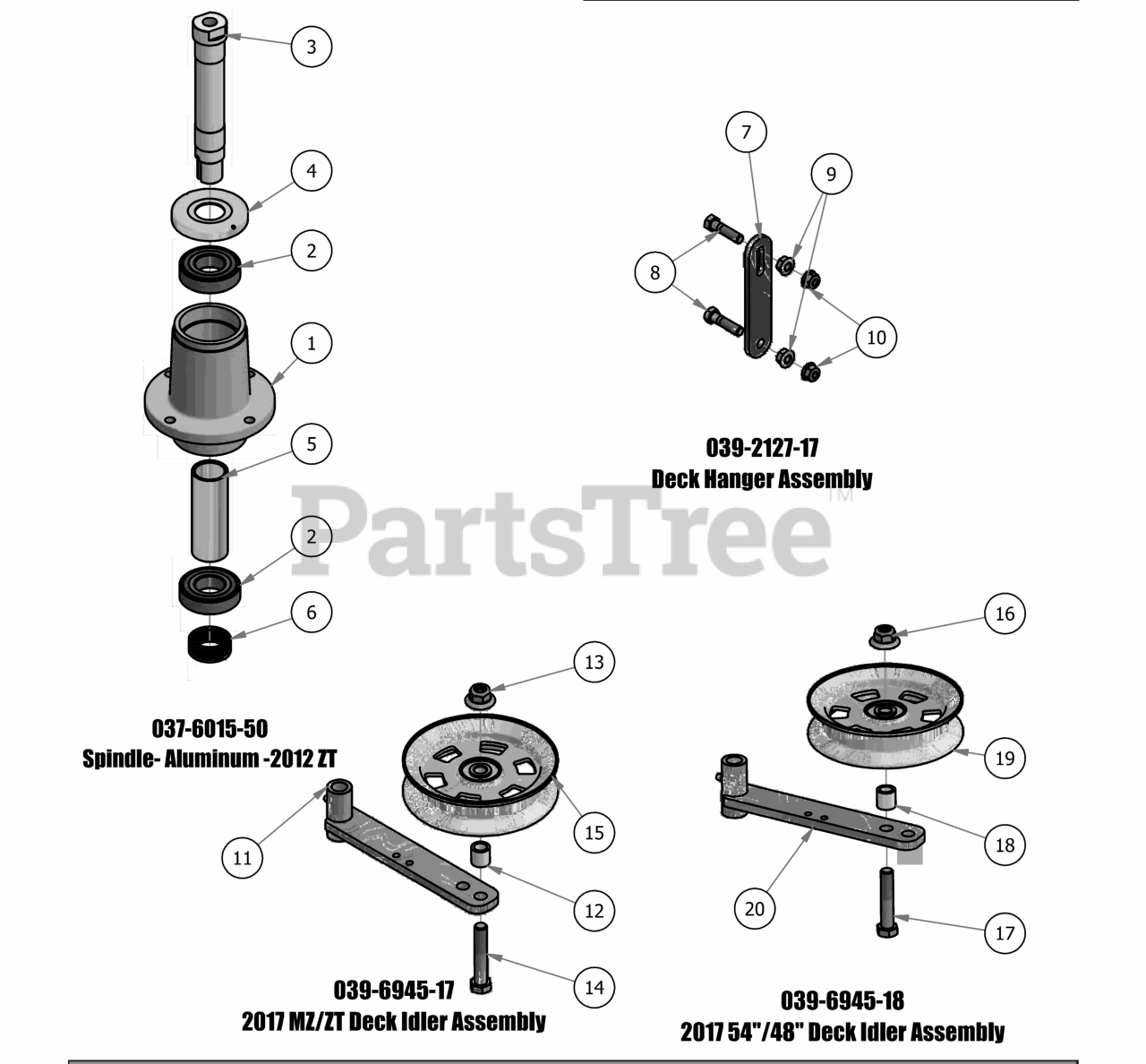

DECK SUB-ASSEMBLIES Parts Diagram

  • Title

1

Bad Boy 037-6017-50

Aluminum Spindle Housing -2010

$136.99

$

Usually ships in 4-7 days

0

2

Bad Boy 037-6023-00

Spindle Bearing, 2004 and up

$

$

Not available

3

Bad Boy 037-6026-00

Short Spindle Shaft w/Locking

$89.99

$

In Stock, Qty 12

0

4

Bad Boy 037-8002-00

Dust Cover

$12.99

$

In Stock, Qty 8

0

5

Bad Boy 037-8050-00

Tube Spacer for Spindle Shaft

$9.49

$

In Stock, only 2 left!

0

6

Bad Boy 037-9050-00

Collar Spacer - Top of Spindle

$7.99

$

In Stock, Qty 6

0

7

Bad Boy 039-2127-00

2017 MZ/ZT Deck Hanger

$11.99

$

Usually ships in 0 days

0

8

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

9

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

11

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

0

12

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 17

0

13

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 4 left!

0

15

Bad Boy 033-8050-00

5" Idler Pully

$37.99

$

In Stock, Qty 20+

0

16

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

17

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, only 4 left!

0

18

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 17

0

19

Bad Boy 033-8050-00

5" Idler Pully

$37.99

$

In Stock, Qty 20+

0

20

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

0
