Maverick - Bad Boy Zero-Turn Mower (2018) ADJUSTABLE DRIVE ARM ASSEMBLIES Parts Diagram

Zero-Turn Mower

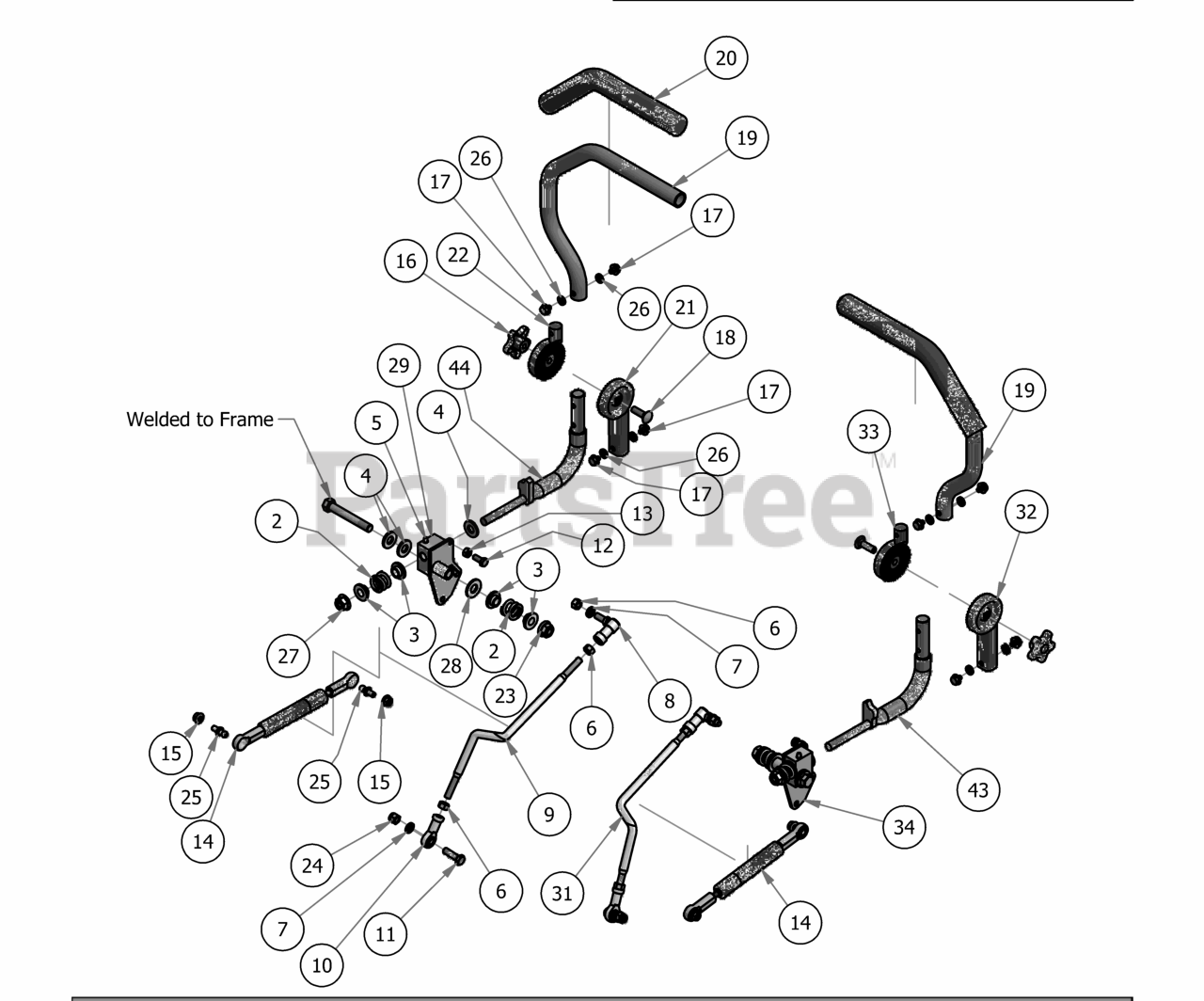

ADJUSTABLE DRIVE ARM ASSEMBLIES Parts Diagram

  • Title

2

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

3

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

Usually ships in 4-7 days

0

4

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

5

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

6

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

7

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

8

Bad Boy 099-2009-00

3/8-24 Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0

9

Bad Boy 035-5451-00

Push Rod - Left

$45.99

$

Usually ships in 4-7 days

0

10

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 17

0

12

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, Qty 5

0

14

Bad Boy 087-0001-00

Steering Damper

$66.99

$

In Stock, Qty 5

0

15

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

16

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

17

Bad Boy 018-2020-00

5/16-18 1/2 HWH Bolt-Steering

$1.99

$

In Stock, Qty 6

0

18

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

19

Bad Boy 031-9010-00

Upper Tube-Adjustable Steering

$

$

Currently unavailable

20

Bad Boy 069-4010-00

Black Steering Grip

$8.49

$

In Stock, Qty 17

0

21

Bad Boy 031-9014-00

Lower Adjuster - Steering Arm- Left

$56.99

$

Usually ships in 4-7 days

0

22

Bad Boy 031-9017-00

Upper Adjuster-Steering Arm- Left

$

$

Not available

23

Bad Boy 013-0085-00

1/2-13 Hex Flange (GR.G) ZC

$1.49

$

Usually ships in 4-7 days

0

24

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 4 left!

0

26

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

27

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flange Nut Zinc Orange Nylon

$1.99

$

In Stock, Qty 20+

0

28

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

Usually ships in 4-7 days

0

29

Bad Boy 031-0017-98

2017 Drive Lever Housing - Left

$33.99

$

Usually ships in 4-7 days

0

31

Bad Boy 035-5450-00

Push Rod - Right

$36.99

$

Usually ships in 4-7 days

0

32

Bad Boy 031-9015-00

Lower Adjuster - Steering Arm- Right

$

$

Not available

33

Bad Boy 031-9016-00

Upper Adjust Steering Arm- Right

$

$

Not available

34

Bad Boy 031-0018-98

2017 Drive Lever Housing - Right

$24.99

$

Usually ships in 4-7 days

0

43

Bad Boy 031-9025-70

Stering Arm Elbow (Right)

$90.99

$

Usually ships in 4-7 days

0

44

Bad Boy 031-9020-70

Stering Arm Elbow (Left)

$90.99

$

In Stock, only 2 left!

0
