Master Pro - Husqvarna Walk-Behind Mower (1996-03) CUTTING EQUIPMENT Parts Diagram

Walk-Behind Mower

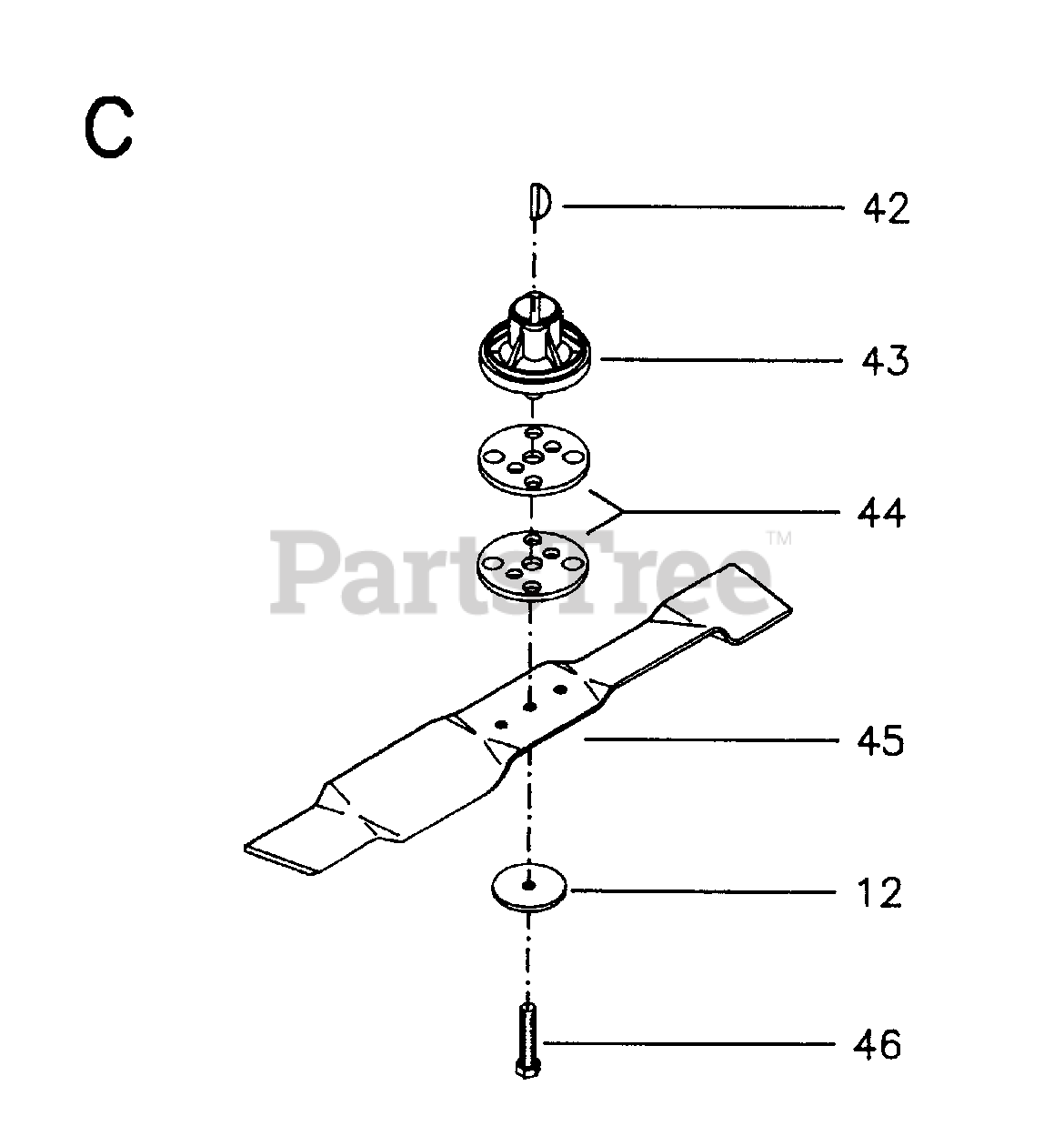

CUTTING EQUIPMENT Parts Diagram

  • Title

535 08 87-01

Husqvarna 535088701

HARNESS, TILT SENSOR

$

$

Not available

732 25 12-01

Husqvarna 732251201

NUT M4
(Superseded to 588222101)

$3.99

$

Usually ships in 3-10 days

0

535 04 95-02

Husqvarna 535049502

SCREW

$

$

Not available

732 25 12-01

Husqvarna 732251201

NUT M4
(Superseded to 588222101)

$3.99

$

Usually ships in 3-10 days

0

734 11 37-41

Husqvarna 734113741

WASHER

$4.99

$

Usually ships in 3-10 days

0

735 21 36-01

Husqvarna 735213601

Lock Washer

$2.99

$

Usually ships in 3-10 days

0

535 07 63-01

Husqvarna 535076301

HARNESS

$

$

Not available

535 06 44-01

Husqvarna 535064401

SWITCH

$

$

Not available

725 64 49-01

Husqvarna 725644901

BOLT REAR WHEEL

$2.99

$

Usually ships in 3-10 days

0

535 06 14-02

Husqvarna 535061402

LH END CAP WHEEL

$

$

Not available

535 05 86-01

Husqvarna 535058601

CHASSIS

$

$

Not available

535 06 25-01

Husqvarna 535062501

COVER REAR WHEEL

$

$

Not available

535 09 02-01

Husqvarna 535090201

SENSOR, TILT

$

$

Not available

535 06 48-01

Husqvarna 535064801

PLATE ON/OFF

$

$

Not available

535 03 11-01

Husqvarna 535031101

TERMINAL GROUND

$

$

Not available

535 06 45-01

Husqvarna 535064501

BUZZER EXTERNAL

$

$

Not available

535 06 43-01

Husqvarna 535064301

WIRE GROUND

$

$

Not available

535 03 61-01

Husqvarna 535036101

SCREW

$

$

Not available

535 08 37-01

Husqvarna 535083701

KEYPAD
(Superseded to 544338001)

$

$

Not available

535 07 71-01

Husqvarna 535077101

SPACER SWITCH

$

$

Not available

535 04 95-02

Husqvarna 535049502

SCREW

$

$

Not available

535 08 20-01

Husqvarna 535082001

WHEEL MOTOR LH/RH

Note: Motor w/o gearbox 535 10 66-01

$

$

Not available

535 08 85-01

Husqvarna 535088501

CONTROL BOARD

$

$

Not available

535 04 97-01

Husqvarna 535049701

WHEEL REAR

$

$

Not available

535 06 14-01

Husqvarna 535061401

RH END CAP WHEEL

$

$

Not available

46

Husqvarna 515123931

SCREW

$

$

Not available

45

Husqvarna 531005045

BLADE

$

$

Not available

12

Husqvarna 515796001

WASHER

$5.99

$

Usually ships in 3-10 days

0

42

Husqvarna 516921200

WOODRUFF KEY

$

$

Not available

43

Husqvarna 531005029

BLADE ADAPTER

$

$

Not available

44

Husqvarna 516438701

STEEL PLATE ADAPTER

$22.99

$

In Stock, only 4 left!

0
