MAG-72 - Scag Magnum III 72" Three-Wheel Riding Mower (SN: 70000 - 79999) Throttle Linkage Parts Diagram

Magnum III 72" Three-Wheel Riding Mower

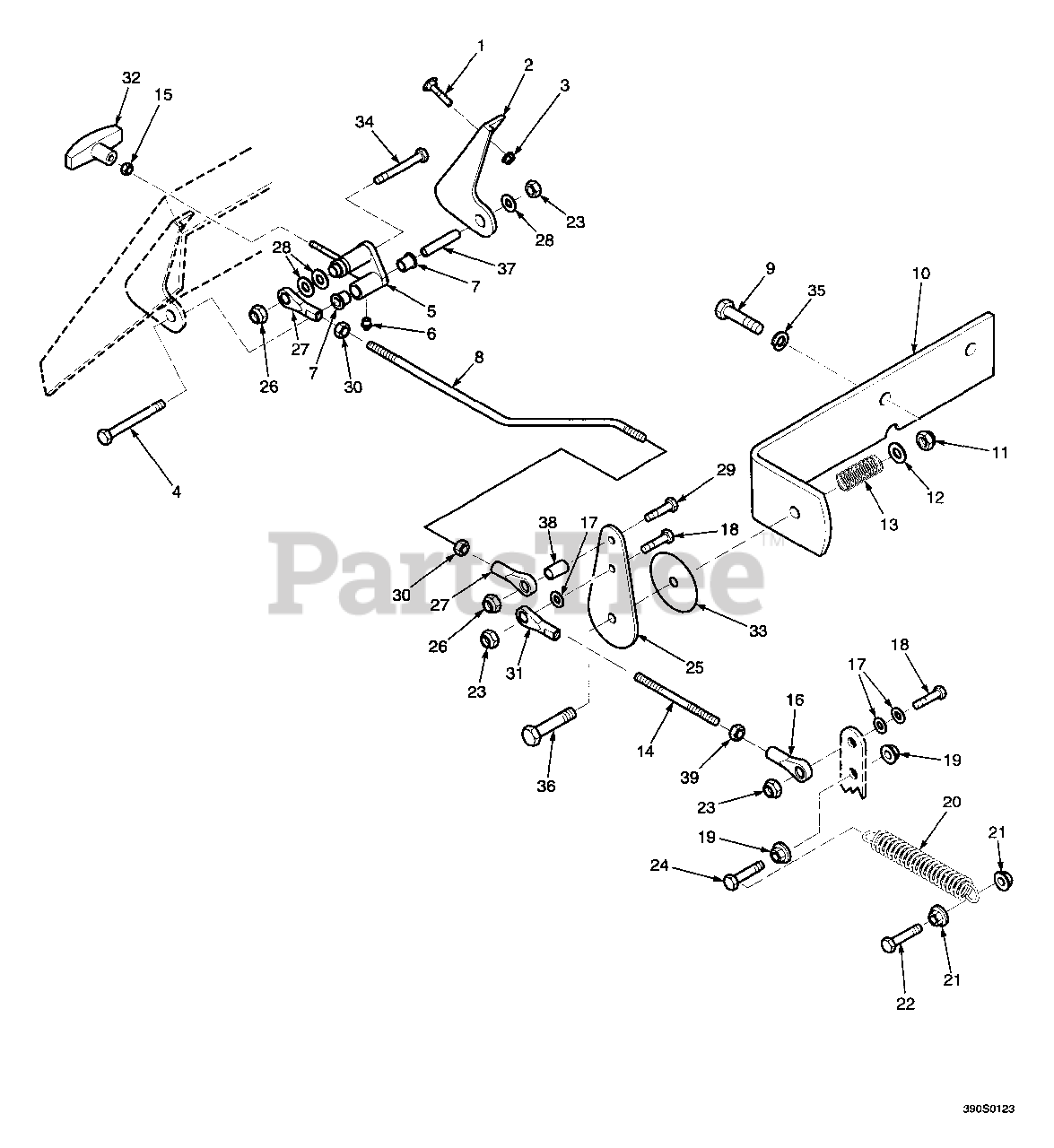

Throttle Linkage Parts Diagram

  • Title

1

Scag 04003-02

Carriage Bolt, 1/4-20 x .75

$0.99

$

In Stock, Qty 20+

0

2

Scag 421776

Mounting Base, Throttle

$

$

Not available

3

Scag 04019-02

Serr. Fl. Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

4

Scag 04001-13

Bolt, Hex Head, 5/16-18 x 2-3/4

$0.99

$

In Stock, only 1 left!

0

5

Scag 46877

Lever, Throttle

Note: Includes 6, 7

$

$

Not available

6

Scag 48114-05

Grease Fitting

$1.49

$

In Stock, Qty 9

0

7

Scag 48100-04

Bushing, Oilite - .5O I.D.

$0.99

$

In Stock, only 4 left!

0

8

Scag 44115

Rod, Throttle Control

$

$

Not available

9

Scag 04002-11

Bolt, Hex Head, M10 - 1.25 x 30

$

$

Not available

10

Scag 45822

Mounting Bracket, Throttle

$

$

Not available

11

Scag 04021-13

Hex Locknut, Elastic Stop, 5/8-11

$1.49

$

In Stock, Qty 20+

0

12

Scag 04041-10

Flatwasher, 5/8

$1.99

$

Usually ships in 2-12 days

0

13

Scag 481244

Spring, Friction Control

$

$

Not available

14

Scag 04004-26

Stud, 5/16-24 x 4.50

$

$

Not available

15

Scag 04020-03

Hex Nut, 5/16-18

$0.99

$

In Stock, only 1 left!

0

16

Scag 481189

Rod End, 5/16-24 RH Thread

$24.99

$

Usually ships in 2-12 days

0

17

Scag 04040-04

Flatwasher, 5/16 (.344 x.688 x .065)

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-10

Bolt, Hex Head, 5/16-18 x 1-1/4

$0.99

$

In Stock, Qty 14

0

19

Scag 04019-02

Serr. Fl. Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

20

Scag 481314

Spring, Throttle Control

$10.99

$

Usually ships in 2-12 days

0

21

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-39

Bolt, Hex Head, 5/16-18 x 2-1/4

$0.99

$

In Stock, Qty 10

0

23

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-59

Bolt, Hex Head, 1/4-20 x 1-14

$0.99

$

In Stock, Qty 5

0

25

Scag 421997

Lever, Throttle

$

$

Not available

26

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

27

Scag 48464

Ball Joint, 3/8-24 RH Thread

$23.99

$

In Stock, only 1 left!

0

28

Scag 04040-04

Flatwasher, 5/16

$0.99

$

In Stock, Qty 20+

0

29

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2

$0.99

$

In Stock, Qty 20+

0

30

Scag 04020-14

Hex Nut, 3/8-24

$0.99

$

In Stock, only 3 left!

0

31

Scag 481188

Rod End, 5/16-24 LH Thread

$26.99

$

Usually ships in 2-12 days

0

32

Scag 481092

Knob, Shifter

$

$

Not available

33

Scag 481243

Disc, Friction

$

$

Not available

34

Scag 04001-51

Bolt, Hex Head, 3/8-16 x 3-3/4

$1.49

$

In Stock, Qty 8

0

35

Scag 04030-05

Lockwasher, 7/16

$0.99

$

In Stock, Qty 5

0

36

Scag 04001-125

Bolt, Hex Head, 5/8-11 X 3-1/2

$5.99

$

In Stock, only 4 left!

0

37

Scag 43110

Sleeve

$8.49

$

Usually ships in 2-12 days

0

38

Scag 43212

Sleeve

$4.49

$

In Stock, Qty 5

0

39

Scag 04020-13

Hex Nut, 5/16-24

$0.99

$

Usually ships in 2-12 days

0
