MAG-72 - Scag Magnum III 72" Three-Wheel Riding Mower (SN: 70000 - 79999) Parking Brake Linkage Parts Diagram

Magnum III 72" Three-Wheel Riding Mower

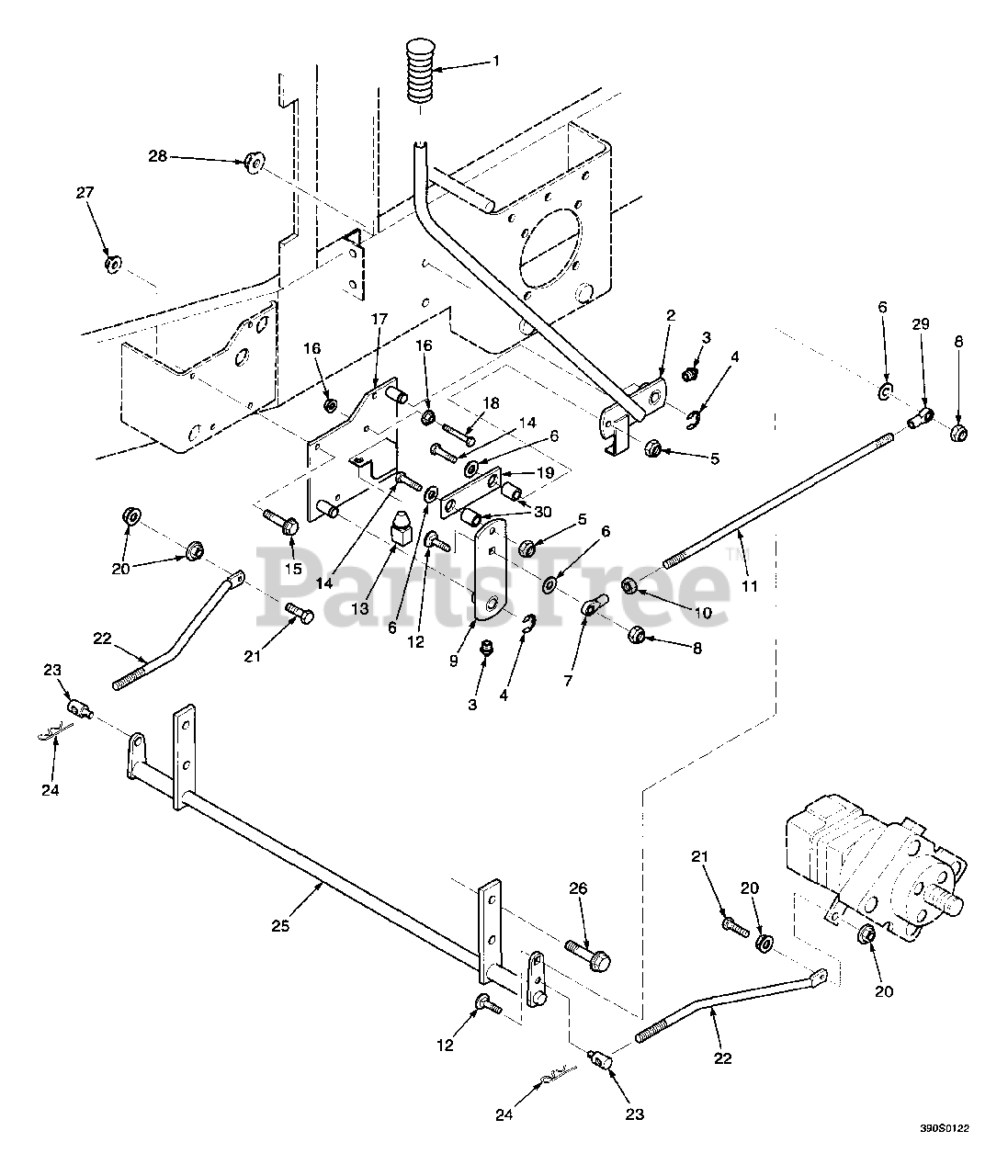

Parking Brake Linkage Parts Diagram

  • Title

1

Scag 48093

Grip, Handle

$1.99

$

In Stock, only 1 left!

0

2

Scag 45716

Lever, Brake

$

$

Not available

3

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

4

Scag 04050-01

Retaining Ring, .625 Ext

$0.99

$

In Stock, Qty 20+

0

5

Scag 04020-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

6

Scag 04041-07

Washer, Flat, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

7

Scag 48464

Ball Joint, 3/8-24 RH Thd

$23.99

$

In Stock, only 1 left!

0

8

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 45782

Arm, Weldment

$

$

Not available

10

Scag 04020-14

Hex Nut, 3/8-24

$0.99

$

In Stock, only 3 left!

0

11

Scag 04004-23

Rod, Parking Brake

$7.99

$

Usually ships in 2-12 days

0

12

Scag 04003-05

Carriage Bolt, 3/8-16 x 1-1/2

$0.99

$

In Stock, Qty 18

0

13

Scag 481474

Switch, Interlock

$106.99

$

In Stock, only 1 left!

0

14

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1.00

$0.99

$

In Stock, Qty 7

0

15

Scag 04017-17

Serr. Fl. Hex Head Capscrew, 5/16-18 x 1.00

$0.99

$

Usually ships in 2-12 days

0

16

Scag 04019-04

Serr. Fl. Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

17

Scag 45781

Mounting Base, Parking Brake

$

$

Not available

18

Scag 04001-21

Bolt, Hex head, 3/8-16 x 1-1/4

$0.99

$

In Stock, Qty 20+

0

19

Scag 421338

Link, Cam

$94.99

$

Usually ships in 2-12 days

0

20

Scag 04019-02

Serr. Fl. Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

21

Scag 04001-59

Bolt, Hex Head, 1/4-20 x 1-1/4

$0.99

$

In Stock, Qty 6

0

22

Scag 44108

Rod, Brake Actuator

$13.99

$

Usually ships in 2-12 days

0

23

Scag 43032

Swivel

$6.49

$

In Stock, Qty 8

0

24

Scag 04062-02

Hair Pin, Cotter, .08 x 1.19

$0.99

$

In Stock, Qty 20+

0

25

Scag 45705

Actuator, Brake

$

$

Not available

26

Scag 04017-37

Serr. Fl. Hex Head Capscrew, 1/2-13 x 1-3/4

$2.49

$

In Stock, only 3 left!

0

27

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

28

Scag 04019-06

Serr. Fl. Hex Nut, 1/2-13

$0.99

$

In Stock, Qty 11

0

29

Scag 48544

Ball Joint, 3/8-24 LH Thread

$27.99

$

Usually ships in 2-12 days

0

30

Scag 43212

Sleeve

$4.49

$

In Stock, Qty 5

0

?31

Scag 44124

Rod, Interlock

$19.99

$

Usually ships in 2-12 days

0

?32

Scag 45834

Bracket, Neutral Lockout Mounting

$

$

Not available

?33

Scag 04001-51

Bolt, Hex Head, 3/8-16 x 3.75

$1.49

$

In Stock, Qty 8

0

?34

Scag 45835

Bracket, Neutral Lockout

$54.99

$

Usually ships in 2-12 days

0

?35

Scag 04003-03

Carriage Bolt

$1.49

$

In Stock, Qty 5

0
