MAG-72 - Scag Magnum III 72" Three-Wheel Riding Mower (SN: 70000 - 79999) Instrument Panel Parts Diagram

Magnum III 72" Three-Wheel Riding Mower

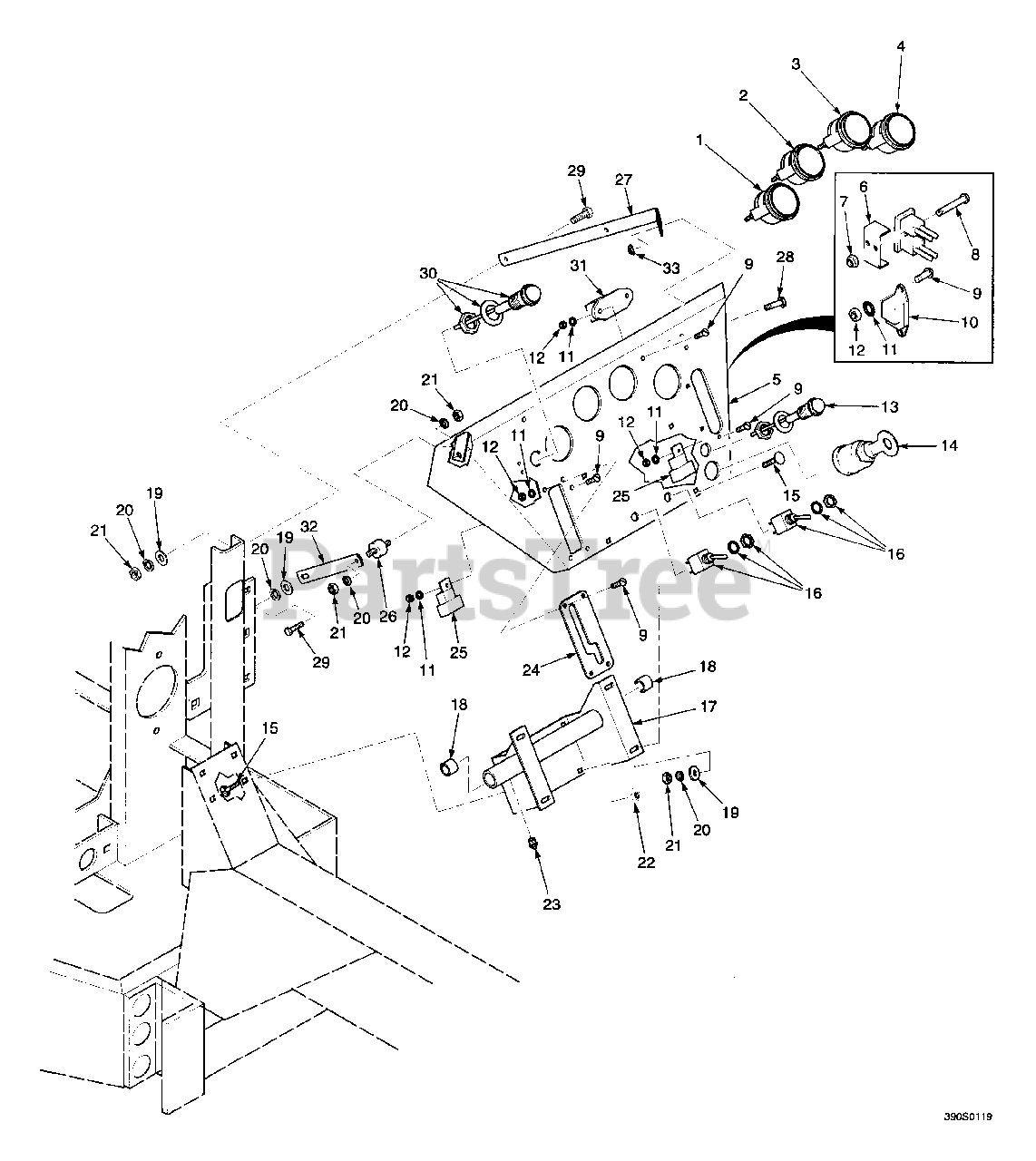

Instrument Panel Parts Diagram

  • Title

1

Scag 48023

Hourmeter

$64.99

$

Usually ships in 2-12 days

0

2

Scag 481183

Gauge, Water Temperature

$139.99

$

Usually ships in 2-12 days

0

3

Scag 481306

Gauge, Fuel Level

$

$

Not available

4

Scag 481184

Voltmeter

$96.99

$

Usually ships in 2-12 days

0

5

Scag 46873

Instrument Panel with Decal

$

$

Not available

6

Scag 42413

Bracket, Fuse Holder

$41.99

$

Usually ships in 2-12 days

0

7

Scag 04021-01

Hex Locknut, Elastic Stop, #10-32

$0.99

$

In Stock, Qty 10

0

8

Scag 04010-11

Screw, Round Head, #10-32 x 1-1/2

$0.99

$

Usually ships in 2-12 days

0

9

Scag 04010-01

Screw, Round Head, #10-32 x 1/2

$0.99

$

In Stock, Qty 20+

0

10

Timer, Glow Plug

Note: Available only through engine manufacturer

$

$

Not available

11

Scag 04031-01

Lockwasher, External Tooth, #10

$0.99

$

In Stock, Qty 20+

0

12

Scag 04020-01

Hex Nut, #10-32

$8.99

$

In Stock, Qty 20+

0

13

Scag 481182

Indicator Light, Glow Plug, Yellow Lens

$48.99

$

Usually ships in 2-12 days

0

14

Keyswitch

Note: Available only through engine manufacturer

$

$

Not available

15

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 20+

0

16

Scag 481087

Switch, Deck Lift

$36.99

$

Usually ships in 2-12 days

0

17

Scag 46874

Mounting Bracket, Instrument Panel

Note: Includes 18, 23

$

$

Not available

18

Scag 48100-06

Bushing, Oilite - .75 I.D.

$1.49

$

In Stock, only 1 left!

0

19

Scag 04040-04

Flatwasher, 5/16 (.281 x .625 x .065)

$0.99

$

In Stock, Qty 20+

0

20

Scag 04030-03

Lockwasher, 5/16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04020-03

Hex Nut, 5/16-18

$0.99

$

In Stock, only 1 left!

0

22

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

24

Scag 421788

Guide, Clutch Lever

$

$

Not available

25

Scag 48788

Relay, Synchronize Start and Cutter Blade

$29.99

$

In Stock, only 2 left!

0

26

Scag 481311

Rubber Isolator

$22.99

$

Usually ships in 2-12 days

0

27

Scag 422193

Brace, Instrument Panel

$

$

Not available

28

Scag 04001-59

Serr. Flg. Hex Head Capscrew, 5/6-18 x 3/4

$0.99

$

In Stock, Qty 6

0

29

Scag 04001-08

Bolt, Hex Head, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 20+

0

30

Scag 481181

Indicator Light, Oil Pressure, Red Lens

$84.99

$

Usually ships in 2-12 days

0

31

Scag 481316

Timer, Delay Circuit

$361.99

$

Usually ships in 2-12 days

0

32

Scag 422004

Bracket, Support Brace

$95.99

$

Usually ships in 2-12 days

0

33

Scag 04019-02

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

?34

Scag 04021-19

Hex Nut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 10

0

?35

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

?36

Scag 04001-32

Bolt, Hex Head, 3/8-16 x 1-1/4

$0.99

$

In Stock, Qty 14

0
