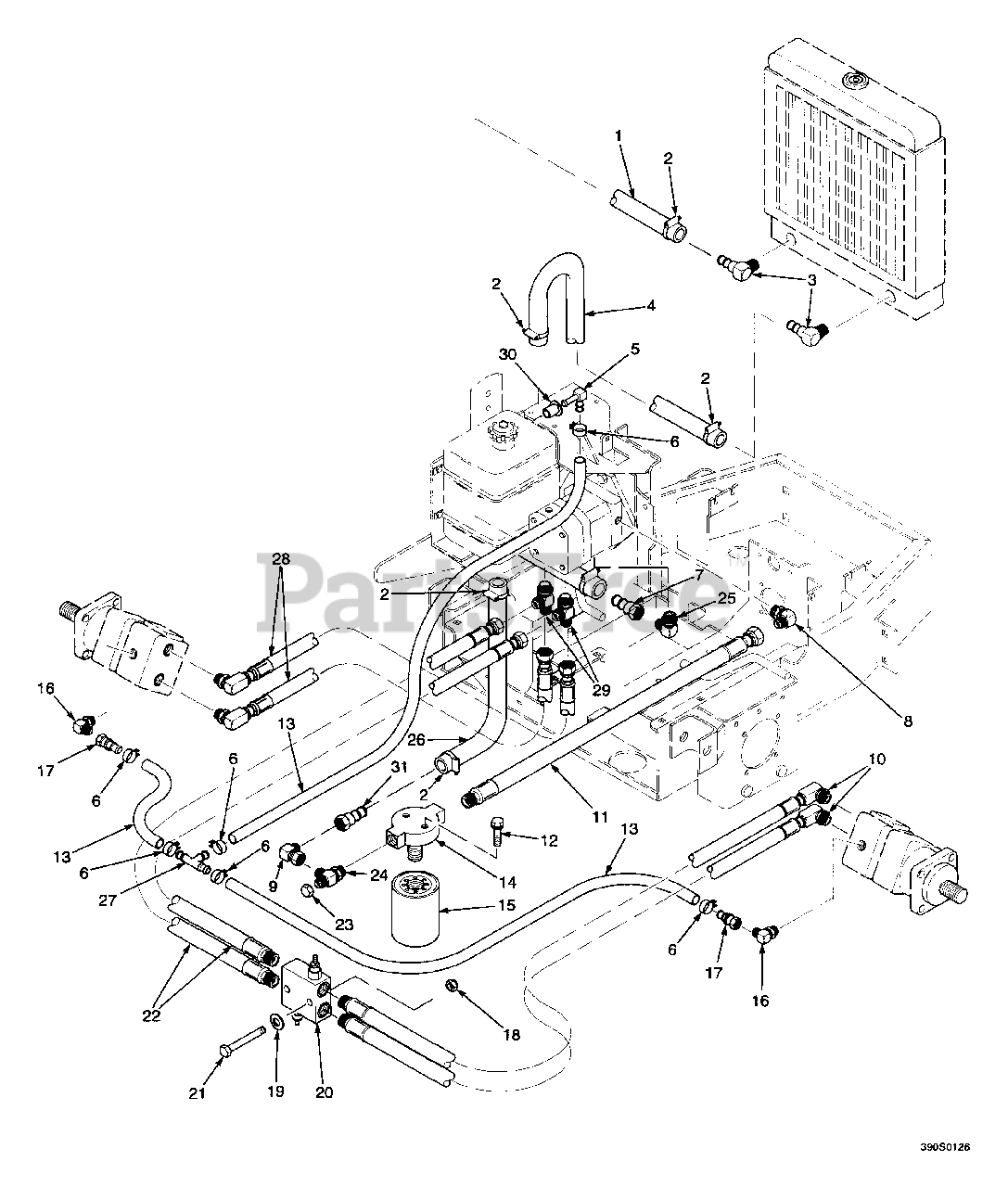

MAG-72 - Scag Magnum III 72" Three-Wheel Riding Mower (SN: 70000 - 79999) Hydraulic Circuits Parts Diagram

Magnum III 72" Three-Wheel Riding Mower

Hydraulic Circuits Parts Diagram

  • Title

1

Scag 481292

Hose, 5/6 Hose Barb

Note: Pump to Oil Cooler

$64.99

$

Usually ships in 2-12 days

0

2

Scag 48136-04

Clamp, Hose

$8.49

$

Usually ships in 2-12 days

0

3

Scag 481301-01

Elbow, 90ø,

$

$

Not available

4

Scag 481202

Hose, 5/8 & 3/8 Hose Barb

Note: Oil Cooler to Reservoir

$

$

Not available

5

Scag 48939

Elbow, 90ø
(Superseded to 483748)

$9.49

$

In Stock, only 2 left!

0

6

Scag 48059-01

Clamp, Hose

$0.99

$

In Stock, Qty 7

0

7

Scag 48936-02

Coupling, Hose, 7/8-14 SAE x 5/8 Hose Barb

$16.99

$

Usually ships in 2-12 days

0

8

Scag 48350-13

Elbow, 90ø, 1-1/16-12 JIC x 7/8-14 O-Ring

$23.99

$

Usually ships in 2-12 days

0

9

Scag 481203-01

Elbow, 90ø, 3/4 JIC Swivel x 3/4 JIC

$

$

Not available

10

Scag 481197

Hose Assembly, Left Motor

$96.99

$

Usually ships in 2-12 days

0

11

Scag 481201

Hose Assembly, Pump Inlet

$183.99

$

Usually ships in 2-12 days

0

12

Scag 04017-05

Serr. Fl. Hex Head Capscrew, 1/4-20 x 3/4

$0.99

$

In Stock, Qty 20+

0

13

Scag 48482

Hose, Hydraulic, 1/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 481174

Filter Head

$50.99

$

Usually ships in 2-12 days

0

15

Scag 48758

Filter, Hydraulic

$27.99

$

In Stock, Qty 20+

0

16

Scag 48350-03

Elbow, 90ø

$21.99

$

Usually ships in 2-12 days

0

17

Scag 48353-02

Coupling, Hose

$4.49

$

Usually ships in 2-12 days

0

18

Scag 04021-10

Hex Nut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

19

Scag 04040-04

Flatwasher, 5/16 (.344 x .688 x .065)

$0.99

$

In Stock, Qty 20+

0

20

Scag 481196

Relief Valve, Dual Cross-Over

$757.99

$

Usually ships in 2-12 days

0

21

Scag 04001-39

Bolt, Hex Head, 5/16-18 x 2-1/4

$0.99

$

In Stock, Qty 10

0

22

Scag 481199

Hose Assembly, Pump to Valve

$57.99

$

Usually ships in 2-12 days

0

23

Scag 48571-03

Tube Cap, 1-1/16-12

$

$

Not available

24

Scag 48937-02

Tee, Run, 3/4 x 3/4

$

$

Not available

25

Scag 48350-05

Elbow, 90ø, 7/8-14 JIC x 7/8-14 O-ring

$32.99

$

Usually ships in 2-12 days

0

26

Scag 48602

Hose, 3/4

Note: Reservoir to Filter

$1.99

$

Usually ships in 2-12 days

0

27

Scag 48935-01

Tee, Pushlock, 1/2

$17.99

$

Usually ships in 2-12 days

0

28

Scag 481198

Hose Assembly, Right Motor

$77.99

$

Usually ships in 2-12 days

0

29

Scag 48937-01

Tee, Run

$45.99

$

Usually ships in 2-12 days

0

30

Scag 48309

Bushing
(Superseded to 482571)

$12.99

$

In Stock, Qty 20+

0

31

Scag 48936-01

Hose Barb to JIC Swivel

$33.99

$

Usually ships in 2-12 days

0
