MAG-72 - Scag Magnum III 72" Three-Wheel Riding Mower (SN: 70000 - 79999) Fuel Tank And Lines Parts Diagram

Magnum III 72" Three-Wheel Riding Mower

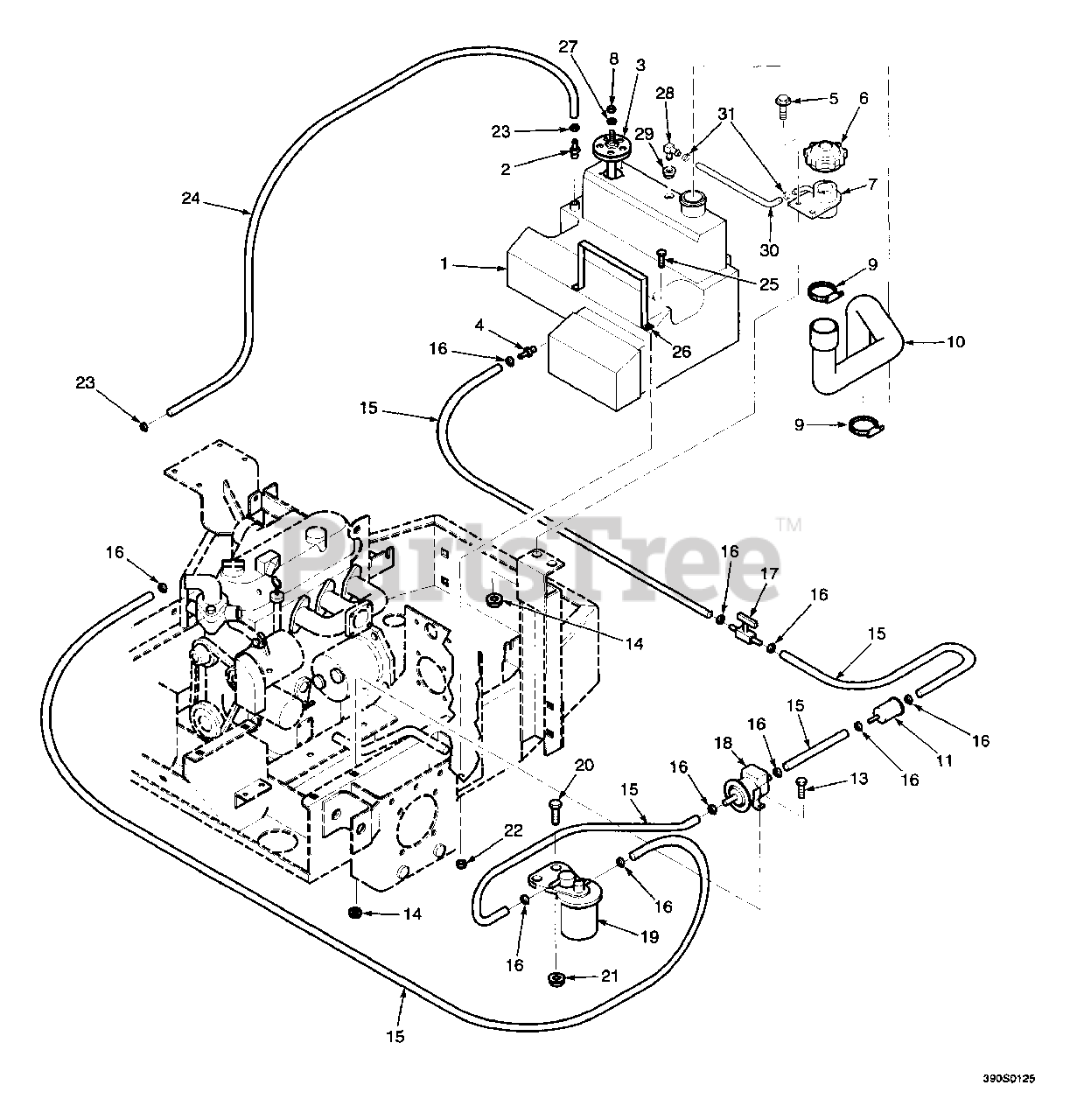

Fuel Tank And Lines Parts Diagram

  • Title

1

Scag 46933

Fuel Tank

Note: Includes 2, 3, 4

$

$

Not available

2

Scag 481313

Fitting, Return Line

$

$

Not available

3

Scag 481304

Sender Unit, Fuel Level

Note: Includes Gasket and Screws

$

$

Not available

4

Scag 481312

Fitting, Hose
(Superseded to 483749)

$11.99

$

In Stock, only 1 left!

0

5

Scag 04017-16

Serr. Fl. Hex Head Capscrew, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 10

0

6

Scag 481298

Cap, Diesel Fuel
(Superseded to 481604)

$55.99

$

Usually ships in 2-12 days

0

7

Scag 45864

Fill Neck Wlmt.

$

$

Not available

8

Scag 04020-01

Hex Nut, #10-32

$8.99

$

In Stock, Qty 20+

0

9

Scag 48136-08

Clamp, Hose

$4.49

$

Usually ships in 2-12 days

0

10

Scag 481296

Hose, Fuel Fill

$153.99

$

Usually ships in 2-12 days

0

11

Scag 481307

Fuel Pre-Filter

$47.99

$

Usually ships in 2-12 days

0

?12

Scag 48030-08

Clamp, Fuel Filter

$

$

Not available

13

Scag 04017-05

Serr. Fl. Hex Head Capscrew, 1/4-20 x 3/4

$0.99

$

In Stock, Qty 20+

0

14

Scag 04019-02

Serr. Fl. Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

15

Scag 481178

Hose, Fuel Line

$

$

Not available

16

Scag 48136-05

Clamp Hose

$3.99

$

In Stock, only 2 left!

0

17

Scag 481308

Valve, Fuel Shutoff

$41.99

$

Usually ships in 2-12 days

0

18

Fuel Pump, Electric

Note: Available only through engine manufacturer

$

$

Not available

19

Fuel Filter Kubota P/N 70000-43081

Note: Available only through engine manufacturer

$

$

Not available

20

Scag 04017-17

Serr. Fl. Hex Head Capscrew, 5/16-18 x 1

$0.99

$

Usually ships in 2-12 days

0

21

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

22

Scag 04021-08

Hex Locknut, Elastic Stop, 1/4-20

$0.99

$

In Stock, Qty 9

0

23

Scag 48059-03

Fuel Hose Clamp, 3/16

$

$

Not available

24

Scag 481179

Hose Fuel Line, 3/16 x 33"

$0.99

$

Usually ships in 2-12 days

0

25

Scag 04017-04

Serr. Fl. Hex Head Capscrew, 1/4-20 x 1-1/2

$0.99

$

In Stock, Qty 20+

0

26

Scag 422003

Strap, Fuel Tank

$30.99

$

Usually ships in 2-12 days

0

27

Scag 04030-01

Lockwasher, #10

$0.99

$

Usually ships in 2-12 days

0

28

Scag 481431

Elbow, 90 Deg.

$

$

Not available

29

Scag 481432

Bushing, Fuel Tank

$12.99

$

In Stock, only 1 left!

0

30

Scag 48351-10

Hose, Fuel Vent, 1/2 x 21.5"
(Superseded to 48351)

$0.99

$

In Stock, Qty 12

0

31

Scag 48502-04

Clamp, Hose .75 OD Hose

$

$

Not available
