MAG-72 - Scag Magnum III 72" Three-Wheel Riding Mower (SN: 70000 - 79999) Cutter Deck Parts Diagram

Magnum III 72" Three-Wheel Riding Mower

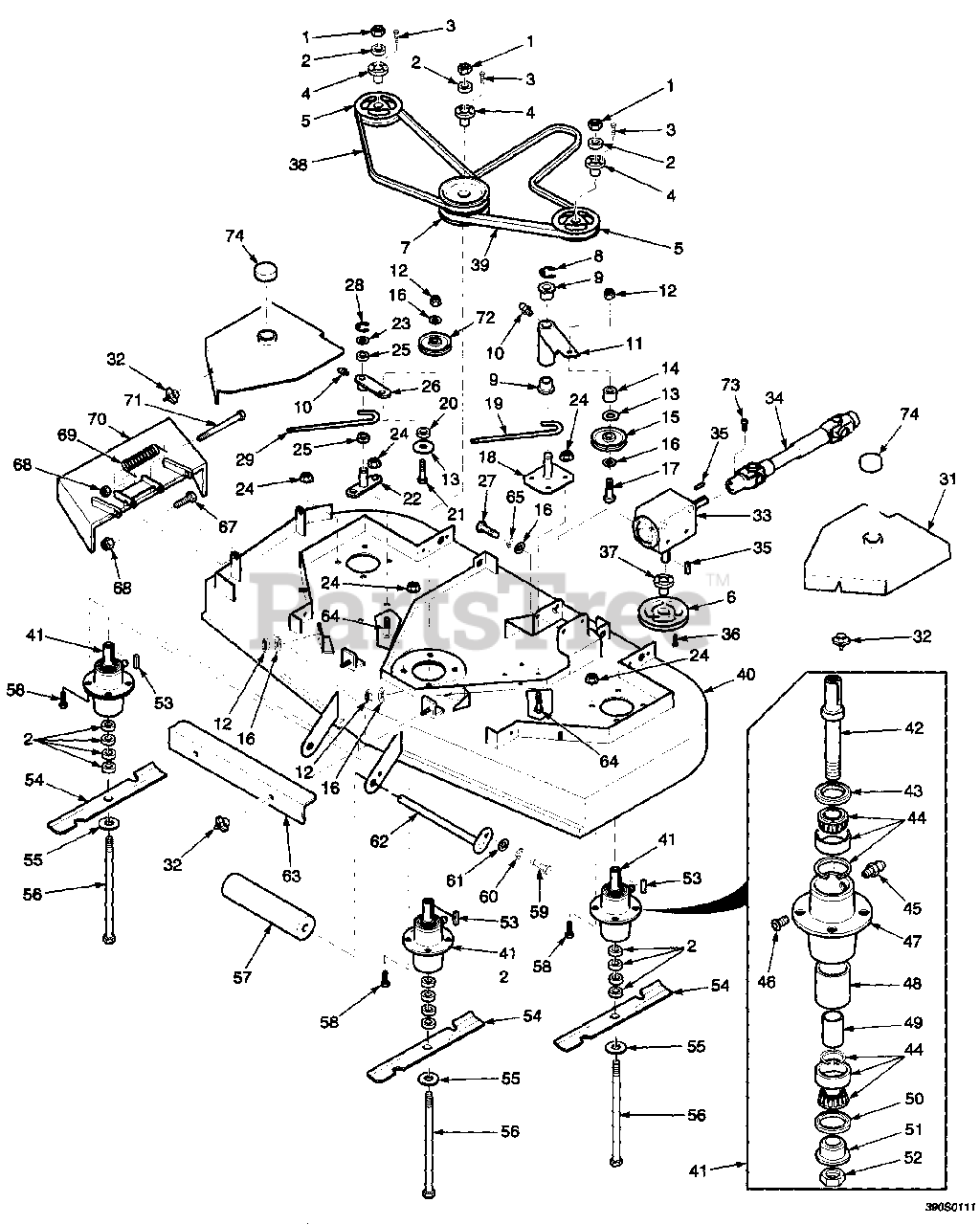

Cutter Deck Parts Diagram

  • Title

1

Scag 04020-09

Nut, Hex, 5/8-11

$0.99

$

In Stock, Qty 20+

0

2

Scag 43278

Spacer, Cutter Blade
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

3

Scag 04001-01

Bolt, Hex Head, 1/4-20 x 3/4 Gr.5

$0.99

$

In Stock, Qty 18

0

4

Scag 48926

Taper Hub, 1.125 Bore

$31.99

$

In Stock, Qty 20+

0

5

Scag 48924

Pulley, 5.75 Dia.
(Superseded to 482744)

$30.99

$

In Stock, only 1 left!

0

6

Scag 48924

Pulley, 5.75 Dia.
(Superseded to 482744)

$30.99

$

In Stock, only 1 left!

0

7

Scag 48923

Pulley, 5.75 Double Groove

$113.99

$

In Stock, only 1 left!

0

8

Scag 04050-05

Retaining Ring, .75 Ext "E"

$0.99

$

In Stock, Qty 20+

0

9

Scag 48100-02

Bushing, Oilite - 1.125 ID

$3.99

$

In Stock, only 2 left!

0

10

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

11

Scag 46866

Arm, Idler

Note: Includes 9 & 10

$

$

Not available

12

Scag 04021-09

Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 04041-12

Flat Washer, 3/8 (.375 x 1.50 x .060)

$0.99

$

In Stock, Qty 9

0

14

Scag 43277

Spacer, J-Hook

$6.49

$

In Stock, only 1 left!

0

15

Scag 48269

Pulley, Idler
(Superseded to 483215)

$62.99

$

In Stock, Qty 20+

0

16

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-54

Bolt, Hex Head, 3/8-16 x 3

$1.49

$

In Stock, Qty 10

0

18

Scag 45720

Pivot, Idler Arm

$

$

Not available

19

Scag 44107

J-Hook

$6.99

$

Usually ships in 2-12 days

0

20

Scag 43077

Spacer, J-Hook

$4.99

$

In Stock, only 1 left!

0

21

Scag 04001-46

Bolt, Hex Head, 3/8-16 x 2-1/4

$0.99

$

In Stock, Qty 20+

0

22

Scag 45037

Idler Pivot

$31.99

$

Usually ships in 2-12 days

0

23

Scag 04041-08

Flatwasher, 3/4 (.776 x 1.25 x .059)

$0.99

$

In Stock, Qty 20+

0

Scag 04041-08S

Flatwasher, 3/4 (.776 x 1.25 x .035)

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

25

Scag 48100-05

Bushing, Oilite - 3/4 ID

$0.99

$

In Stock, only 3 left!

0

26

Scag 46081

Idler Arm

Note: Includes 10 & 25

$47.99

$

Usually ships in 2-12 days

0

27

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1

$0.99

$

In Stock, Qty 7

0

28

Scag 04050-02

Retaining Ring, .75 Ext "E"

$0.99

$

In Stock, Qty 7

0

29

Scag 44078

Pull Rod, Idler

$6.99

$

In Stock, only 2 left!

0

?30

Scag 45818

Belt Cover, RH

$121.99

$

Usually ships in 2-12 days

0

31

Scag 45815

Belt Cover, LH

$

$

Not available

32

Scag 04029-03

Wingnut, Plastic, 3/8-16

$2.49

$

In Stock, Qty 20+

0

33

Scag 481214

Gearbox, Deck Drive

$1985.99

$

Usually ships in 2-12 days

0

34

Scag 481213

Drive Shaft

$780.99

$

Usually ships in 2-12 days

0

35

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4

$1.49

$

In Stock, only 4 left!

0

36

Scag 04001-109

Bolt, Hex Head, 1/4-20 x 1-3/8

Note: Full Thread

$2.49

$

In Stock, only 2 left!

0

37

Scag 48141

Tapered Hub, 1.00 Bore

$30.99

$

In Stock, only 1 left!

0

38

Scag 481295

Belt, Cutter Deck

$65.99

$

In Stock, only 1 left!

0

39

Scag 48089

Belt, Cutter Deck

$62.99

$

In Stock, only 4 left!

0

40

Scag 46868

Cutter Deck with Decals

$3645.99

$

Usually ships in 2-12 days

0

41

Scag 46631

Spindle Assembly
(Superseded to 461663)

$263.99

$

In Stock, Qty 20+

0

42

Scag 43298

Shaft, Cutter Spindle
(Superseded to 43589)

$59.99

$

In Stock, only 1 left!

0

43

Scag 481024

Seal, 2.00 OD x 1.50 Bore

$4.99

$

In Stock, Qty 20+

0

44

Scag 481022

Bearing Assembly

$61.99

$

In Stock, Qty 15

0

45

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

46

Scag 48677

Relief Fitting, Cutter Spindle

$9.49

$

Usually ships in 2-12 days

0

47

Scag 43294

Spindle Housing
(Superseded to 43644)

$60.99

$

In Stock, only 2 left!

0

48

Scag 43312

Spacer, Outside

$19.99

$

In Stock, only 1 left!

0

49

Scag 43296

Spacer, Inside

$8.49

$

In Stock, only 2 left!

0

50

Scag 481025

Seal, 2.00 OD x 1.625 OD

$4.99

$

In Stock, Qty 20+

0

51

Scag 43297

Spindle Bushing, Bottom

$9.99

$

In Stock, only 2 left!

0

52

Scag 481035

Nut, 1-1/16-18 UNEF-2B

$7.99

$

In Stock, only 3 left!

0

53

Scag 04063-08

Key, 1/4 x 1/4 x 2

$1.49

$

In Stock, Qty 20+

0

54

Scag 481160

Blade, 24-1/2"

$

$

Not available

55

Scag 04040-10

Washer, 5/8 (.688 x 1.75 x .134)

$0.99

$

In Stock, Qty 11

0

56

Scag 04001-41

Bolt, Hex Head, 5/8-11 x 9-1/2 Gr.5

$15.99

$

In Stock, Qty 20+

0

57

Scag 48038

Roller

$29.99

$

In Stock, only 2 left!

0

58

Scag 04001-10

Bolt, Hex Head, 5/16-18 x 1-1/4

$0.99

$

In Stock, Qty 14

0

59

Scag 04001-08

Bolt, Hex Head, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 20+

0

60

Scag 04030-03

Lockwasher, 5/16

$0.99

$

In Stock, Qty 20+

0

61

Scag 04040-15

Flatwasher, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 20+

0

62

Scag 45046

Shaft, Roller
(Superseded to 45944)

$22.99

$

In Stock, Qty 20+

0

63

Scag 421820

Cover, Belt - Front

$47.99

$

Usually ships in 2-12 days

0

64

Scag 04017-16

Serr. Fl Hex Head Capscrew, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 10

0

65

Scag 04030-04

Lockwasher, 3/8

$0.99

$

In Stock, Qty 8

0

?66

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr.5

$0.99

$

In Stock, Qty 7

0

67

Scag 04001-09

Bolt, Hex Head, 5/16-18 x 1.0

$0.99

$

In Stock, Qty 20+

0

68

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

69

Scag 481050

Spring, Discharge Chute
(Superseded to 482245)

$11.99

$

In Stock, Qty 5

0

70

Scag 46726

Discharge Chute
(Superseded to 461292)

$70.99

$

In Stock, only 2 left!

0

71

Scag 04001-108

Bolt, Hex Head, 5/16-18 x 4-1/4

$2.49

$

In Stock, Qty 9

0

72

Scag 48181

Pulley, Idler

$26.99

$

In Stock, Qty 14

0

73

Scag 04012-06

Set Screw, Hex Socket, 3/8-16 x 1/2

$0.99

$

In Stock, only 1 left!

0

74

Scag 48098

Spindle Shield

$2.49

$

In Stock, only 3 left!

0
