MAG-61 - Scag Magnum III 61" Three-Wheel Riding Mower (SN: 70000 - 79999) Wiring Harness And Electrical Components Parts Diagram

Magnum III 61" Three-Wheel Riding Mower

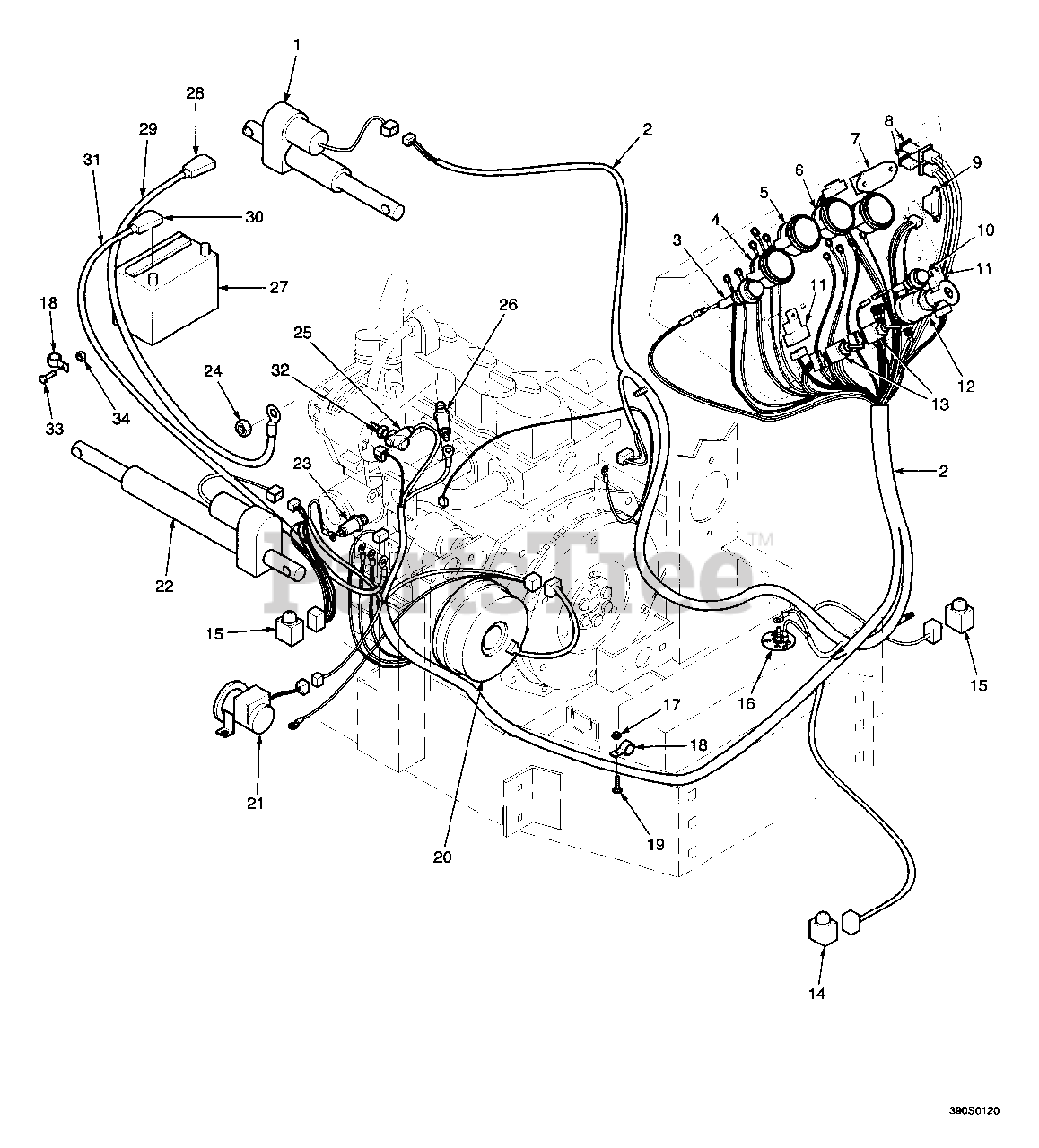

Wiring Harness And Electrical Components Parts Diagram

  • Title

1

Scag 481216

Actuator, Cutting Height

$2101.99

$

Usually ships in 2-12 days

0

2

Scag 481185

Wire Harness

$883.99

$

Usually ships in 2-12 days

0

3

Scag 481182

Indicator Light, Oil Pressure

$48.99

$

Usually ships in 2-12 days

0

4

Scag 48023

Hourmeter

$64.99

$

Usually ships in 2-12 days

0

5

Scag 481183

Gauge, Water Temperature

$139.99

$

Usually ships in 2-12 days

0

6

Scag 481306

Gauge, Fuel Level

$

$

Not available

7

Scag 481316

Timer, Delay Circuit

$361.99

$

Usually ships in 2-12 days

0

8

Scag 481322

Fuse, 30 Amp

$

$

Not available

9

Timer, Glow Plug

Note: Available only through engine manufacturer

$

$

Not available

10

Scag 481182

Indicator Light, Glow Plug

$48.99

$

Usually ships in 2-12 days

0

11

Scag 48788

Relay, Synchronize Start and Clutch Kill Circuit

$29.99

$

In Stock, only 2 left!

0

12

Switch, Ignition

Note: Available only through engine manufacturer

$

$

Not available

13

Scag 481087

Switch, Deck Lift and Cutting Height

$36.99

$

Usually ships in 2-12 days

0

14

Scag 481476

Switch, Safety - Parking Brake

$58.99

$

Usually ships in 2-12 days

0

15

Scag 481474

Switch, Foot Pedal and Cutter Brake Interlocks

$106.99

$

In Stock, only 1 left!

0

16

Scag 481304

Sender, Fuel

Note: Includes Gasket and Screws

$104.99

$

Usually ships in 2-12 days

0

17

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

18

Scag 48030-10

Clamp

$0.99

$

Usually ships in 2-12 days

0

19

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 20+

0

20

Scag 481204

Electric Clutch

$526.99

$

Usually ships in 2-12 days

0

21

Fuel Pump, Electric

Note: Available only through engine manufacturer

$

$

Not available

22

Scag 481195

Actuator, Deck Lift

$1116.99

$

Usually ships in 2-12 days

0

23

Sender, Oil Pressure

Note: Available only through engine manufacturer

$

$

Not available

24

Scag 04025-02

Hex Nut, M8-1.25

$1.49

$

Usually ships in 2-12 days

0

25

Scag 481335

Cap, Alternator Terminal

$3.99

$

Usually ships in 2-12 days

0

26

Scag 481190

Sender, Water Temperature

$30.99

$

Usually ships in 2-12 days

0

27

Scag 481177

Battery

$

$

Not available

28

Scag 481336

Cap, Battery Terminal - Black

$

$

Not available

29

Scag 481176-02

Battery Cable, Black

$

$

Not available

30

Scag 481337

Cap, Battery Terminal - Red

$

$

Not available

31

Scag 481176-01

Battery Cable, Red

$

$

Not available

32

Scag 04025-01

Hex Nut, M6-1.00

$0.99

$

Usually ships in 2-12 days

0

33

Scag 04017-16

Serr. Fl. Hex Head Capscrew, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 10

0

34

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0
