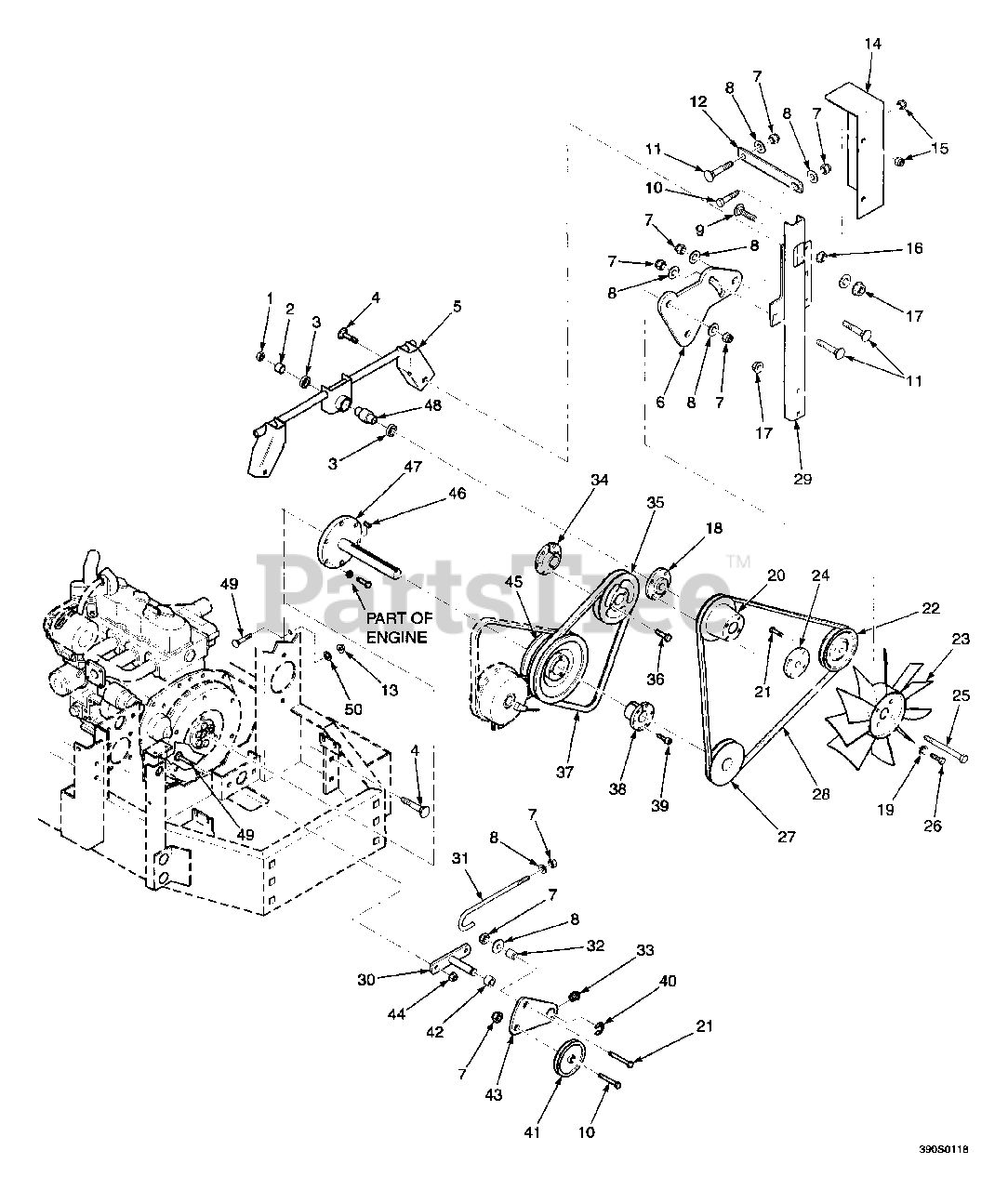

MAG-61 - Scag Magnum III 61" Three-Wheel Riding Mower (SN: 70000 - 79999) Pump And Fan Drive Systems Parts Diagram

Magnum III 61" Three-Wheel Riding Mower

Pump And Fan Drive Systems Parts Diagram

  • Title

1

Scag 04021-16

Hex Locknut, 1/2-20

$4.49

$

In Stock, only 2 left!

0

2

Scag 43335

Spacer, Fan

$10.99

$

Usually ships in 2-12 days

0

3

Scag 48442

Bearing

$37.99

$

Usually ships in 2-12 days

0

4

Scag 04003-19

Carriage Bolt, 1/2-13 x 1-1/4

$1.99

$

Usually ships in 2-12 days

0

5

Scag 46872

Bracket, Fan Mounting

Note: Includes 3, 48

$

$

Not available

6

Scag 422017

Idler Bracket, Fan Drive

$28.99

$

Usually ships in 2-12 days

0

7

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

8

Scag 04041-07

Flat Washer, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

9

Scag 04003-06

Carriage Bolt, 1/4-20 x 1

$0.99

$

In Stock, Qty 6

0

10

Scag 04001-32

Bolt, Hex Head, 3/8-16 x 1-1/4

$0.99

$

In Stock, Qty 14

0

11

Scag 04003-11

Carriage Bolt, 3/8-16 x 1-1/4

$0.99

$

In Stock, Qty 7

0

12

Scag 422019

Brace, Fan Support

$10.99

$

Usually ships in 2-12 days

0

13

Scag 04019-02

Serr. Fl. Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

14

Scag 421808

Guard, Pump Belt

$29.99

$

Usually ships in 2-12 days

0

15

Scag 04021-08

Hex Locknut, Elastic Stop, 1/4-20

$0.99

$

In Stock, Qty 10

0

16

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 20+

0

17

Scag 04019-06

Serr. Fl. Hex Nut, 1/2-13

$0.99

$

In Stock, Qty 11

0

18

Scag 43334

Hub, Fan

$66.99

$

Usually ships in 2-12 days

0

19

Scag 04030-02

Lockwasher, 1/4

$0.99

$

In Stock, Qty 20+

0

20

Pulley, Fan

Note: Available only from the engine manufacturer

$

$

Not available

21

Scag 04001-21

Bolt, Hex Head, 3/8-18 x 1-3/4

$0.99

$

In Stock, Qty 20+

0

22

Scag 481315

Pulley, Belt Tensioning Idler

$35.99

$

In Stock, only 1 left!

0

23

Fan

Note: Available only from the engine manufacturer

$

$

Not available

24

Scag 43390

Hub, Fan

$170.99

$

Usually ships in 2-12 days

0

25

Scag 04001-114

Bolt, Hex Head, 1/2-20 x 4.75, LH Thread

$38.99

$

Usually ships in 2-12 days

0

26

Scag 04001-116

Bolt, Hex Head, 1/4-28 x 1

$0.99

$

Usually ships in 2-12 days

0

27

Scag 481330

Pulley, 4.25 O.D. x 1.4375 I.D.

$119.99

$

Usually ships in 2-12 days

0

28

Scag 481114

Belt, Fan Drive

$20.99

$

Usually ships in 2-12 days

0

29

Scag 45713

Upright, Fan Support - RH

$61.99

$

Usually ships in 2-12 days

0

30

Scag 45307

Base, Idler Pivot - Pump
(Superseded to 45037)

$31.99

$

Usually ships in 2-12 days

0

31

Scag 44107

Rod, J-Hook

$6.99

$

Usually ships in 2-12 days

0

32

Scag 43282

Spacer, J Pull Rod

$7.99

$

In Stock, only 1 left!

0

33

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

34

Scag 48761

Taper Hub, .75 Bore

$38.99

$

Usually ships in 2-12 days

0

35

Scag 48790

Pulley, Pump, 5.94 O.D.
(Superseded to 482648)

$38.99

$

In Stock, Qty 12

0

36

Scag 04001-109

Bolt, Hex Head, 1/4-20 x 3/8

$2.49

$

In Stock, only 2 left!

0

37

Scag 481103

Belt, Pump Drive

$48.99

$

Usually ships in 2-12 days

0

38

Scag 481168

Taper Hub, 1-7/16 Bore

$63.99

$

Usually ships in 2-12 days

0

39

Scag 04015-09

CPSCR, Socket Head, 1/4-20 x 1-1/4

$0.99

$

Usually ships in 2-12 days

0

40

Scag 04050-02

Retaining Ring, .75 Ext

$0.99

$

In Stock, Qty 7

0

41

Scag 48181

Pulley, Idler, 5.95 O.D.

$26.99

$

In Stock, Qty 14

0

42

Scag 48100-05

Bushing, Oilite - .75 I.D.

$0.99

$

In Stock, only 3 left!

0

43

Scag 46878

Arm, Idler

Note: Includes 33, 42

$83.99

$

Usually ships in 2-12 days

0

44

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

45

Scag 481329

Pulley, Double Groove

$179.99

$

Usually ships in 2-12 days

0

46

Scag 04063-22

Key, 3/8 x 1-1/4

$1.99

$

Usually ships in 2-12 days

0

47

Stubshaft, Crankshaft

Note: Available only from the engine manufacturer

$

$

Not available

48

Scag 43139

Spacer

$44.99

$

Usually ships in 2-12 days

0

49

Scag 04003-12

Carriage Bolt, 5/16-18 x .75

$0.99

$

In Stock, Qty 20+

0

50

Scag 04040-14

Flatwasher, 1/4

$0.99

$

In Stock, only 4 left!

0
