MAG-61 - Scag Magnum III 61" Three-Wheel Riding Mower (SN: 70000 - 79999) Muffler And Air Cleaner Parts Diagram

Magnum III 61" Three-Wheel Riding Mower

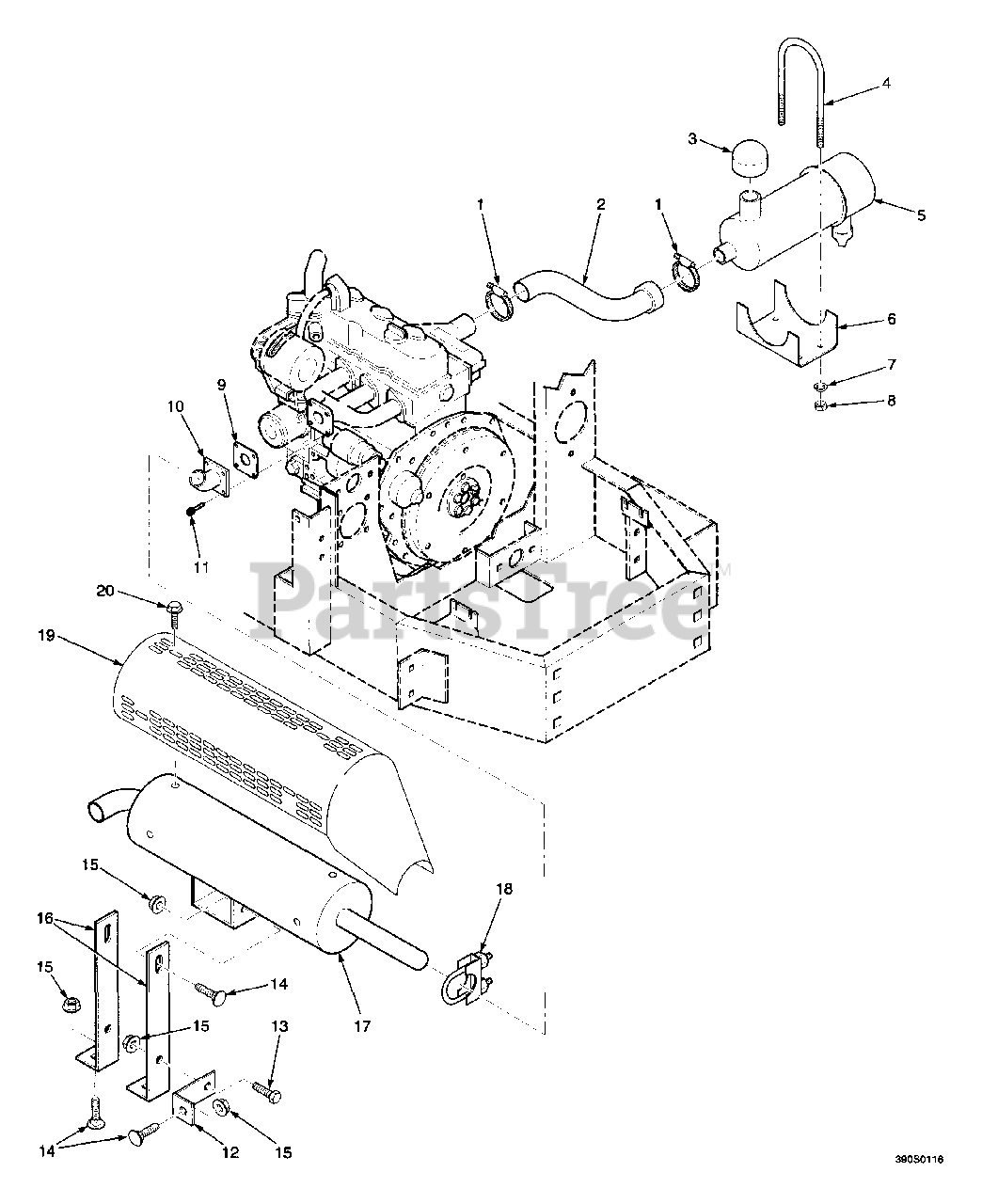

Muffler And Air Cleaner Parts Diagram

  • Title

1

Scag 48136-08

Hose Clamp

$4.49

$

Usually ships in 2-12 days

0

2

Scag 481191

Hose, Air Intake

$

$

Not available

3

Scag 481333

Cap. Precleaner

$

$

Not available

4

Scag 04100-03

U-Bolt

$

$

Currently unavailable

5

Scag 481192

Air Cleaner

$383.99

$

Usually ships in 2-12 days

0

6

Scag 421981

Mounting Bracket, Air Cleaner

$21.99

$

Usually ships in 2-12 days

0

7

Scag 04030-03

Lockwasher, 5/16

$0.99

$

In Stock, Qty 20+

0

8

Scag 04020-03

Nut, Hex, 5/16-18

$0.99

$

In Stock, only 1 left!

0

9

Gasket, Manifold

Note: Available only through the engine manufacturer

$

$

Not available

10

Scag 481340

Adapter, Manifold

$526.99

$

Usually ships in 2-12 days

0

11

Scag 04015-07

Capscrew, Socket Head, M8-1.125 x 20

$0.99

$

In Stock, Qty 5

0

12

Scag 422029

Brace, Muffler Support

$45.99

$

Usually ships in 2-12 days

0

13

Scag 04001-09

Bolt, Hex Head, 5/16-18 x 1

$0.99

$

In Stock, Qty 20+

0

14

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 20+

0

15

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 421983

Bracket, Muffler Support

$10.99

$

Usually ships in 2-12 days

0

17

Scag 481439

Muffler

$

$

Not available

18

Scag 48633

Clamp, Exhaust Pipe

$6.49

$

In Stock, only 1 left!

0

19

Scag 422254

Muffler Guard

$23.99

$

Usually ships in 2-12 days

0

20

Scag 04011-08

Screw, 10-32 x .50 Type F HH

$

$

Currently unavailable
