MAG-61 - Scag Magnum III 61" Three-Wheel Riding Mower (SN: 70000 - 79999) Cutter Deck Support Parts Diagram

Magnum III 61" Three-Wheel Riding Mower

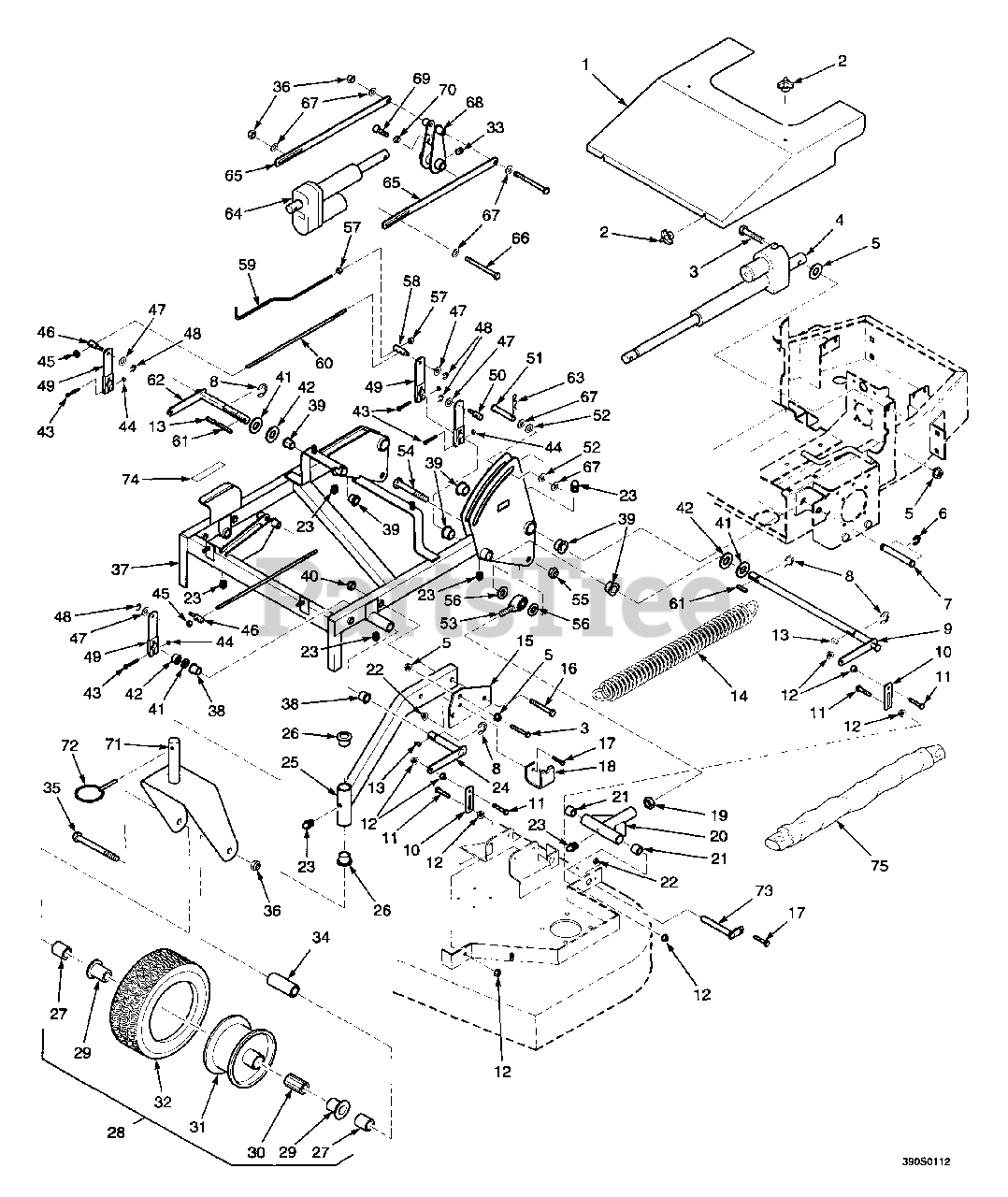

Cutter Deck Support Parts Diagram

  • Title

1

Scag 45733

Cover, Belt

$

$

Not available

2

Scag 04029-03

Wingnut, Plastic, 3/8-16

$2.49

$

In Stock, Qty 20+

0

3

Scag 04001-52

Bolt, Hex Head, 1/2-13 x 2-1/2

$1.99

$

Usually ships in 2-12 days

0

4

Scag 481195

Actuator, Deck Lift

$1116.99

$

Usually ships in 2-12 days

0

5

Scag 04019-06

Serr. Fl. Hex Nut, 1/2-13

$0.99

$

In Stock, Qty 11

0

6

Scag 04050-05

Retaining Ring, 1.125 Ext

$0.99

$

In Stock, Qty 20+

0

7

Scag 43356

Pin, Deck support Mounting

$38.99

$

Usually ships in 2-12 days

0

8

Scag 04050-08

Retaining Ring, 1.00 Ext "E"

$0.99

$

In Stock, Qty 12

0

9

Scag 45728

Lift Bellcrank, LH Rear

$202.99

$

Usually ships in 2-12 days

0

10

Scag 421878

Link, Deck Support

$17.99

$

Usually ships in 2-12 days

0

11

Scag 04001-117

Bolt, Hex Head, 7/16-14 x 1-3/4

$1.49

$

In Stock, only 3 left!

0

12

Scag 04019-05

Serr. Fl. Hex Nut, 7/16-14

$0.99

$

In Stock, Qty 12

0

13

Scag 04063-19

Key, 1/4 x 1/4 x 3/4

$0.99

$

In Stock, only 2 left!

0

14

Scag 481215

Spring, Deck Lift

$60.99

$

Usually ships in 2-12 days

0

15

Scag 421838

Anchor, Deck Spring

$

$

Not available

16

Scag 04001-119

Bolt, Hex Head, 5/8-11 x 5-1/2

$6.99

$

Usually ships in 2-12 days

0

17

Scag 04017-16

Serr. Fl. Hex Head CPSCR, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 10

0

18

Scag 422027

Retainer, Spring

$

$

Not available

19

Scag 04020-21

Hex Nut, 3/4-16

$

$

Currently unavailable

20

Scag 46865

Push Rod Assy

Note: Includes 19, 21, 23, 53

$398.99

$

Usually ships in 2-12 days

0

21

Scag 48100-06

Bushing, Oilite - 3/4 ID

$1.49

$

In Stock, only 1 left!

0

22

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

24

Scag 45727

Lift Bellcrank, Front

$105.99

$

Usually ships in 2-12 days

0

25

Scag 45722

Tube, LH Caster

Note: Shown

$

$

Not available

Scag 45723

Tube, RH Caster

Note: Not Shown

$

$

Not available

26

Scag 48100-08

Bushing, Oilite - 1.00 ID

$5.49

$

In Stock, Qty 6

0

27

Scag 43041

Spacer

$5.49

$

Usually ships in 2-12 days

0

28

Scag 48537

Wheel Assembly, Caster

Note: Includes 29, 30, 31, 32

$254.99

$

In Stock, only 2 left!

0

29

Scag 48006-07

Retainer
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

30

Scag 48006-06

Bearing, Roller
(Superseded to 481769)

$28.99

$

In Stock, only 2 left!

0

31

Scag 48537-03

Rim
(Superseded to 481829)

$120.99

$

Usually ships in 2-12 days

0

32

Scag 48537-02

Tire
(Superseded to 481830)

$64.99

$

In Stock, only 1 left!

0

33

Scag 04012-04

Setscrew, Hex Socket, 5/16-18 x .75

$0.99

$

In Stock, Qty 14

0

34

Scag 43022

Sleeve, Caster Wheel

$6.99

$

In Stock, Qty 20+

0

35

Scag 04001-80

Bolt, Hex Head, 1/2-13 x 6-1/2

$5.99

$

In Stock, Qty 20+

0

36

Scag 04021-07

Hex Locknut, Elastic Stop, 1/2-13

$0.99

$

In Stock, Qty 20+

0

37

Scag 46869

Frame, Deck Support
(Superseded to 461006)

Note: Includes 23, 38, 39, 74

$

$

Not available

38

Scag 48100-02

Bushing, Oilite - 1-1/8 ID

$3.99

$

In Stock, only 2 left!

0

39

Scag 48100-08

Bushing, Oilite - 1.00 ID

$5.49

$

In Stock, Qty 6

0

40

Scag 04021-13

Hex Locknut, Elastic Stop, 5/8-11

$1.49

$

In Stock, Qty 20+

0

41

Scag 04042-05

Flatwasher, 1" (1.062 x 1.75 x .10)

$0.99

$

In Stock, Qty 18

0

Scag 04041-14

Flatwasher, 1" (1.062 x 1.50 x .048)

$0.99

$

In Stock, Qty 15

0

42

Scag 43353

Spacer

$

$

Not available

43

Scag 04001-45

Bolt, Hex Head, 3/8-16 x 2

$0.99

$

In Stock, Qty 9

0

44

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

45

Scag 04020-09

Hex Nut, 5/8-11

$0.99

$

In Stock, Qty 20+

0

46

Scag 43270

Swivel Joint, RH

$20.99

$

Usually ships in 2-12 days

0

47

Scag 04040-09

Flatwasher, 5/8 (.656 x 1.312 x .095)

$0.99

$

In Stock, Qty 12

0

48

Scag 04050-01

Retaining Ring, 5/8 Ext "E"

$0.99

$

In Stock, Qty 20+

0

49

Scag 45731

Lever, Deck Lift

$

$

Not available

50

Scag 43271

Swivel Joint, LH

$59.99

$

Usually ships in 2-12 days

0

51

Scag 04064-11

Pin, Clevis, 1/2 x 2.25

$2.99

$

In Stock, only 4 left!

0

52

Scag 04044-01

Flatwasher, Nylon, 1" (.54 x 1.125 x .25)

$0.99

$

Usually ships in 2-12 days

0

53

Scag 481217

Rod End, Male, 3/4-16 RH

$98.99

$

Usually ships in 2-12 days

0

54

Scag 04001-120

Bolt, Hex Head, 3/4-16 x 3

$

$

Currently unavailable

55

Scag 04021-14

Hex Locknut, Elastic Stop, 3/4-16

$1.99

$

Usually ships in 2-12 days

0

56

Scag 43352

Spacer

$7.49

$

Usually ships in 2-12 days

0

57

Scag 04020-04

Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

58

Scag 43357

Swivel Joint, LH

$

$

Not available

59

Scag 44113

Rod, Height Indicator

$

$

Not available

60

Scag 04004-15

Stud, Mower Lift

$52.99

$

Usually ships in 2-12 days

0

61

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4

$1.49

$

In Stock, only 4 left!

0

62

Scag 45729

Lift, Bellcrank, RH Rear

$121.99

$

Usually ships in 2-12 days

0

63

Scag 04062-01

Cotter Pin, Hair - 0.94 x 1.62

$0.99

$

In Stock, Qty 20+

0

64

Scag 481216

Actuator, Cutting Height

$2101.99

$

Usually ships in 2-12 days

0

65

Scag 421834

Link, Deck Travel Limit

$

$

Not available

66

Scag 04001-118

Bolt, Hex Head, 1/2-13 x 4-3/4

$4.49

$

Usually ships in 2-12 days

0

67

Scag 04040-07

Flatwasher, 1/2 (.531 x 1.06 x .095)

$0.99

$

In Stock, Qty 5

0

68

Scag 45730

Lever, Bellcrank Actuation

$

$

Not available

69

Scag 04001-72

Bolt, Hex Head, 1/2-13 x 2

$1.99

$

Usually ships in 2-12 days

0

70

Scag 04020-07

Hex Nut, 1/2-13

$0.99

$

In Stock, only 3 left!

0

71

Scag 45325

Yoke, Caster Wheel

$232.99

$

Usually ships in 2-12 days

0

72

Scag 04066-01

Quick Pin

$8.99

$

In Stock, Qty 7

0

73

Scag 45332

Shaft, Push Rod
(Superseded to 451240)

$53.99

$

In Stock, Qty 20+

0

74

Scag 481331

Decal, Cutting Height

$

$

Not available

75

Scag 481379

Cover, Spring

$

$

Not available
