MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) WIRING HARNESS AND ELECTRICAL COMPONENTS Parts Diagram

Magnum III Three-Wheel Riding Mower

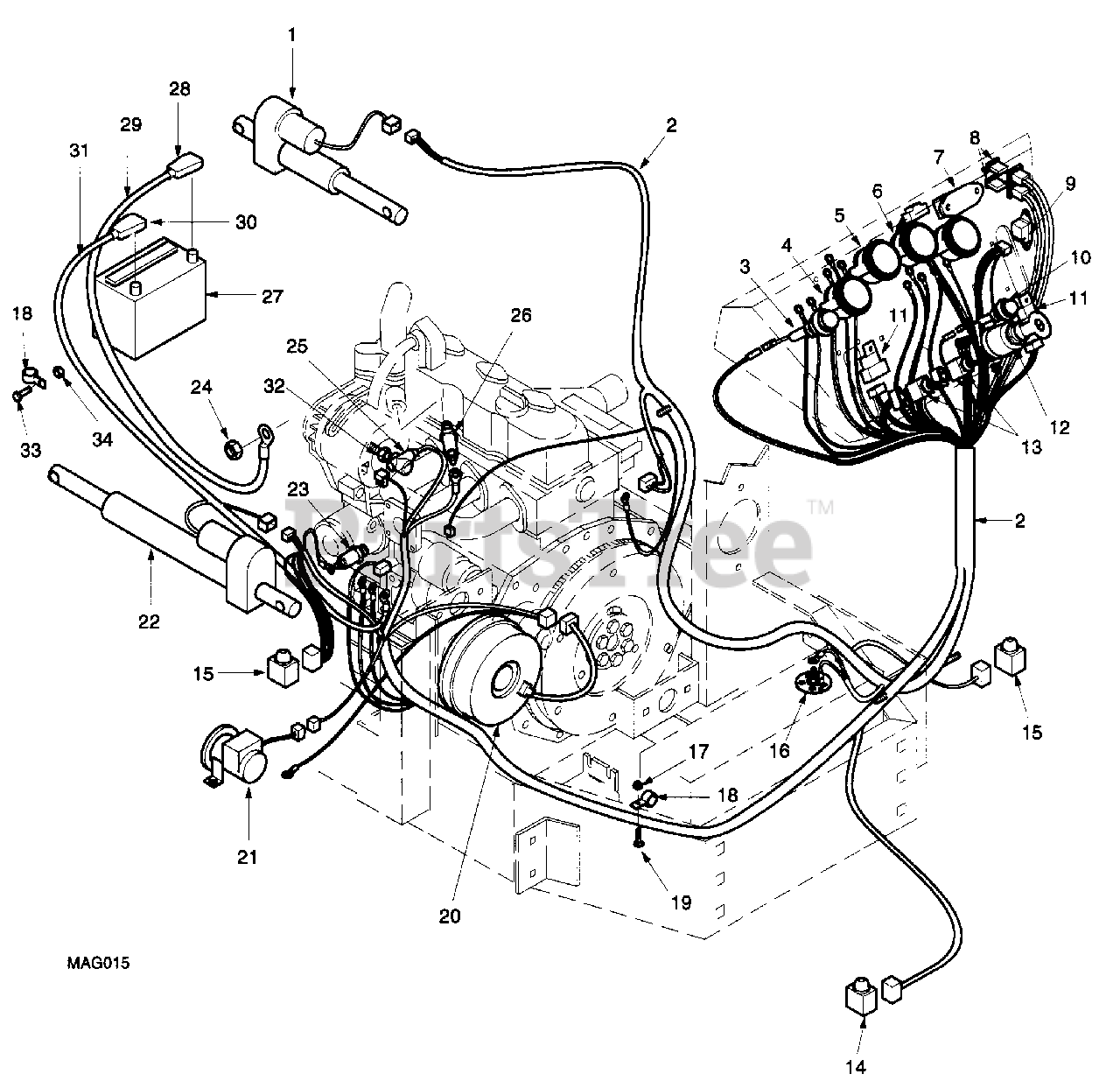

WIRING HARNESS AND ELECTRICAL COMPONENTS Parts Diagram

  • Title

1

Scag 481216

ACTUATOR, CUTTING HEIGHT

$2101.99

$

Usually ships in 2-12 days

0

2

Scag 481185

WIRE HARNESS

$883.99

$

Usually ships in 2-12 days

0

3

Scag 481182

INDICATOR LIGHT, OIL PRESSURE

$48.99

$

Usually ships in 2-12 days

0

4

Scag 48023

HOURMETER

$64.99

$

Usually ships in 2-12 days

0

5

Scag 481183

GAUGE, WATER TEMPERATURE

$139.99

$

Usually ships in 2-12 days

0

6

Scag 481306

GAUGE, FUEL LEVEL

$

$

Not available

7

Scag 481316

TIMER, DELAY CIRCUIT

$361.99

$

Usually ships in 2-12 days

0

8

Scag 481322

FUSE, 30 AMP

$

$

Not available

9

TIMER, GLOW PLUG

Note: AVAILABLE ONLY FROM THE ENGINE MANUFACTURER.

$

$

Not available

10

Scag 481182

INDICATOR LIGHT, GLOW PLUG

$48.99

$

Usually ships in 2-12 days

0

11

Scag 48788

RELAY, SYNCHONIZE START & CLUTCH KIT CIRCUIT

$29.99

$

In Stock, only 2 left!

0

12

SWITCH, IGNITION

Note: AVAILABLE ONLY FROM THE ENGINE MANUFACTURER.

$

$

Not available

13

Scag 481087

SWITCH, DECK LIFT AND CUTTING HEIGHT

$36.99

$

Usually ships in 2-12 days

0

14

Scag 48026

SWITCH, SAFETY - PARKING BRAKE
(Superseded to 481476)

$58.99

$

Usually ships in 2-12 days

0

15

Scag 48522

SWITCH, FOOT PEDAL & CUTTER BRAKE INTERLOCKS
(Superseded to 481474)

$106.99

$

In Stock, only 1 left!

0

16

Scag 481304

SENDER, FUEL(INCLUDES GASKET AND SCREWS)

$104.99

$

Usually ships in 2-12 days

0

17

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0

18

Scag 48030-10

CLAMP

$0.99

$

Usually ships in 2-12 days

0

19

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

20

Scag 481204

ELECTRIC CLUTCH

$526.99

$

Usually ships in 2-12 days

0

21

FUEL PUMP, ELECTRIC

Note: AVAILABLE ONLY FROM THE ENGINE MANUFACTURER.

$

$

Not available

22

Scag 481195

ACTUATOR, DECK LIFT

$1116.99

$

Usually ships in 2-12 days

0

23

SENDER, OIL PRESSURE

Note: AVAILABLE ONLY FROM THE ENGINE MANUFACTURER.

$

$

Not available

24

Scag 04025-02

HEX NUT, M8- 1.25

$1.49

$

Usually ships in 2-12 days

0

25

Scag 481335

CAP, ALTERNATOR TERMINAL

$3.99

$

Usually ships in 2-12 days

0

26

Scag 481190

SENDER, WATER TEMPERATURE

$30.99

$

Usually ships in 2-12 days

0

27

Scag 481177

BATTERY

$

$

Not available

28

Scag 481336

CAP, BATTERY TERMINAL - BLACK

$

$

Not available

29

Scag 481176-02

BATTERY CABLE, BLACK

$

$

Not available

30

Scag 481337

CAP, BATTERY TERMINAL - RED

$

$

Not available

31

Scag 481176-01

BATTERY CABLE, RED

$

$

Not available

32

Scag 04025-01

HEX NUT, M6 - 1.00

$0.99

$

Usually ships in 2-12 days

0

33

Scag 04017-16

SERR. FL. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 10

0

34

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0
