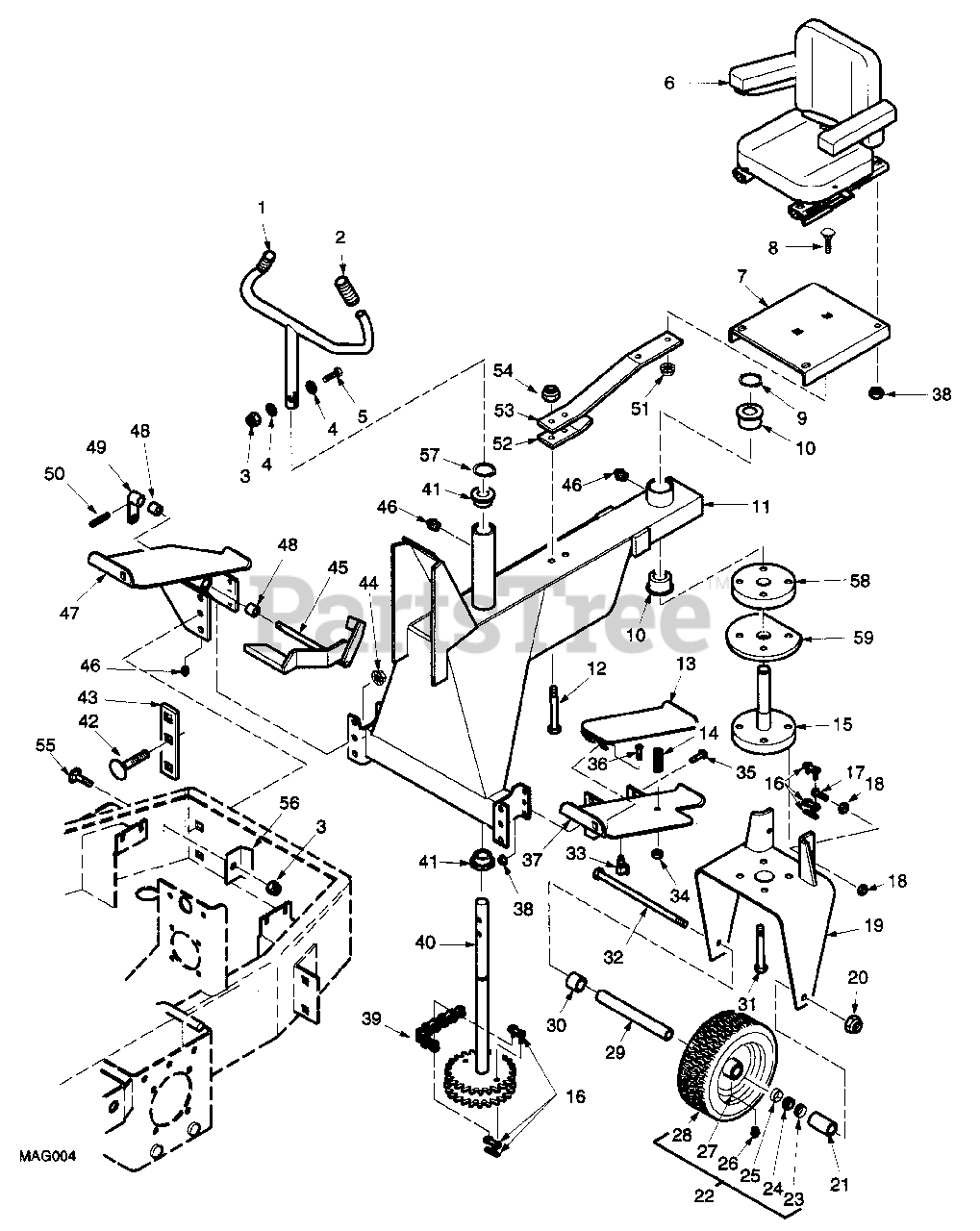

MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) RIDER FRAME Parts Diagram

Magnum III Three-Wheel Riding Mower

RIDER FRAME Parts Diagram

  • Title

1

Scag 46029

HANDLE, STEERING(INCLUDES 2)

$138.99

$

Usually ships in 2-12 days

0

2

Scag 48159

HANDLE GRIP

$3.49

$

In Stock, Qty 8

0

3

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0

4

Scag 04040-15

FLATWASHER, 5/16(.375 X .875 X .083)

$0.99

$

In Stock, Qty 20+

0

5

Scag 04001-12

BOLT, HEX HEAD, 5/16-18 X 1.75

$0.99

$

In Stock, Qty 20+

0

6

Scag 481156

SEAT(WITH ADJUSTER RAILS)

$865.99

$

Usually ships in 2-12 days

0

7

Scag 421976

PLATE, SEAT MOUNT

$55.99

$

Usually ships in 2-12 days

0

8

Scag 04003-11

CARRIAGE BOLT, 3/8-16 X 1-1/4

$0.99

$

In Stock, Qty 7

0

9

Scag 04050-05

RETAINING RING - 1.125 EXT

$0.99

$

In Stock, Qty 20+

0

10

Scag 48100-02

BUSHING, OILITE - 1-1/8 ID

$3.99

$

In Stock, only 2 left!

0

11

Scag 46870

FRAME, STEERING

$

$

Not available

12

Scag 04001-83

BOLT, HEX HEAD, 7/16-14 X 3-1/2

$2.49

$

In Stock, only 1 left!

0

13

Scag 45606

PEDAL, FOOT INTERLOCK

$145.99

$

Usually ships in 2-12 days

0

14

Scag 481056

SPRING, FOOT INTERLOCK SWITCH

$30.99

$

Usually ships in 2-12 days

0

15

Scag 45698

PIVOT, REAR YOKE

$693.99

$

Usually ships in 2-12 days

0

16

Scag 481154

CONNECTOR LINK, #50 CHAIN

$3.49

$

Usually ships in 2-12 days

0

17

Scag 43329

ANCHOR BOLT, CHAIN

$36.99

$

Usually ships in 2-12 days

0

18

Scag 04020-12

NUT, JAM, 3/8-16

$0.99

$

In Stock, only 3 left!

0

19

Scag 45794

YOKE, REAR

$

$

Not available

20

Scag 04021-13

HEX LOCKNUT, ELASTIC STOP, 5/8-11

$1.49

$

In Stock, Qty 20+

0

21

Scag 43020-05

SPACER, REAR WHEEL

$15.99

$

Usually ships in 2-12 days

0

22

Scag 481345

REAR WHEEL ASSEMBLY(INCLUDES 23-29)

$334.99

$

Usually ships in 2-12 days

0

23

Scag 48005-06

SEAL, GREASE
(Superseded to 481897)

$9.49

$

In Stock, only 1 left!

0

24

Scag 48005-05

BEARING CONE
(Superseded to 481896)

$22.99

$

In Stock, only 1 left!

0

25

Scag 48005-04

BEARING CUP
(Superseded to 481895)

$19.99

$

Usually ships in 2-12 days

0

26

Scag 48114-06

GREASE FITTING

$3.99

$

Usually ships in 2-12 days

0

27

Scag 48005-03

RIM(INCLUDES 23, 24, 25 & 26)
(Superseded to 481894)

$312.99

$

In Stock, only 1 left!

0

28

Scag 481345-02

TIRE

$

$

Not available

29

Scag 43398

SLEEVE, REAR TIRE

$64.99

$

Usually ships in 2-12 days

0

30

Scag 43020-06

SPACER, REAR WHEEL

$18.99

$

Usually ships in 2-12 days

0

31

Scag 04001-91

BOLT, HEX HEAD, 7/16-14 X 2-1/2

$1.49

$

Usually ships in 2-12 days

0

32

Scag 04001-115

BOLT, HEX HEAD, 5/8-11 X 11-1/4

$

$

Currently unavailable

33

Scag 48026

SWITCH, FOOT INTERLOCK
(Superseded to 481476)

$58.99

$

Usually ships in 2-12 days

0

34

Scag 04021-08

HEX LOCKNUT, ELASTIC STOP, 1/4-20

$0.99

$

In Stock, Qty 10

0

35

Scag 04017-17

SERR. FL. HEX HEAD CAPSCREW, 5/16-18 X 1.00

$0.99

$

Usually ships in 2-12 days

0

36

Scag 04010-17

SCREW, FLAT HED, #10-32 X 3/4

$0.99

$

Usually ships in 2-12 days

0

37

Scag 45699

FOOTPLATE, LH

$66.99

$

Usually ships in 2-12 days

0

38

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

39

Scag 481152

CHAIN, STEERING - #50

$36.99

$

Usually ships in 2-12 days

0

40

Scag 45696

SHAFT, STEERING

$

$

Not available

41

Scag 48100-07

BUSHING, BRONZE - 7/8 ID
(Superseded to 48100-01)

$2.99

$

In Stock, Qty 5

0

42

Scag 04003-18

CARRIAGE BOLT, 1/2-13 X 1-3/4

$1.99

$

Usually ships in 2-12 days

0

43

Scag 421784

PAD, REINFORCEMENT

$17.99

$

Usually ships in 2-12 days

0

44

Scag 04019-06

SERR. FL. HEX NUT, 1/2-13

$0.99

$

In Stock, Qty 11

0

45

Scag 45502

FOOT PEDAL

$123.99

$

Usually ships in 2-12 days

0

46

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

47

Scag 46880

FOOTPLATE, RH

$

$

Not available

48

Scag 48100-06

BUSHING, OILITE - 3/4 ID

$1.49

$

In Stock, only 1 left!

0

49

Scag 45506

FOOT PEDAL ARM

$45.99

$

Usually ships in 2-12 days

0

50

Scag 04065-01

PIN, DRIVE LOCK, 3/16 X 1-1/4

$2.49

$

Usually ships in 2-12 days

0

51

Scag 04019-04

SERR. FL. HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

52

Scag 42366

REINFORCEMENT, SPRING

$50.99

$

Usually ships in 2-12 days

0

53

Scag 42026

SPRING, SEAT SUPPORT

$73.99

$

Usually ships in 2-12 days

0

54

Scag 04021-11

HEX LOCKNUT, ELASTIC STOP, 7/16-14

$0.99

$

In Stock, Qty 10

0

55

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

56

Scag 421988

RETAINER, BOLT

$19.99

$

Usually ships in 2-12 days

0

57

Scag 04050-03

RETAINING RING, 7/8 EXT

$0.99

$

In Stock, Qty 5

0

58

Scag 421755

GUIDE, TOP CHAIN

$78.99

$

Usually ships in 2-12 days

0

59

Scag 421757

DIVIDER, CHAIN SPACER

$

$

Not available
