MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) MUFFLER AND AIR CLEANER Parts Diagram

Magnum III Three-Wheel Riding Mower

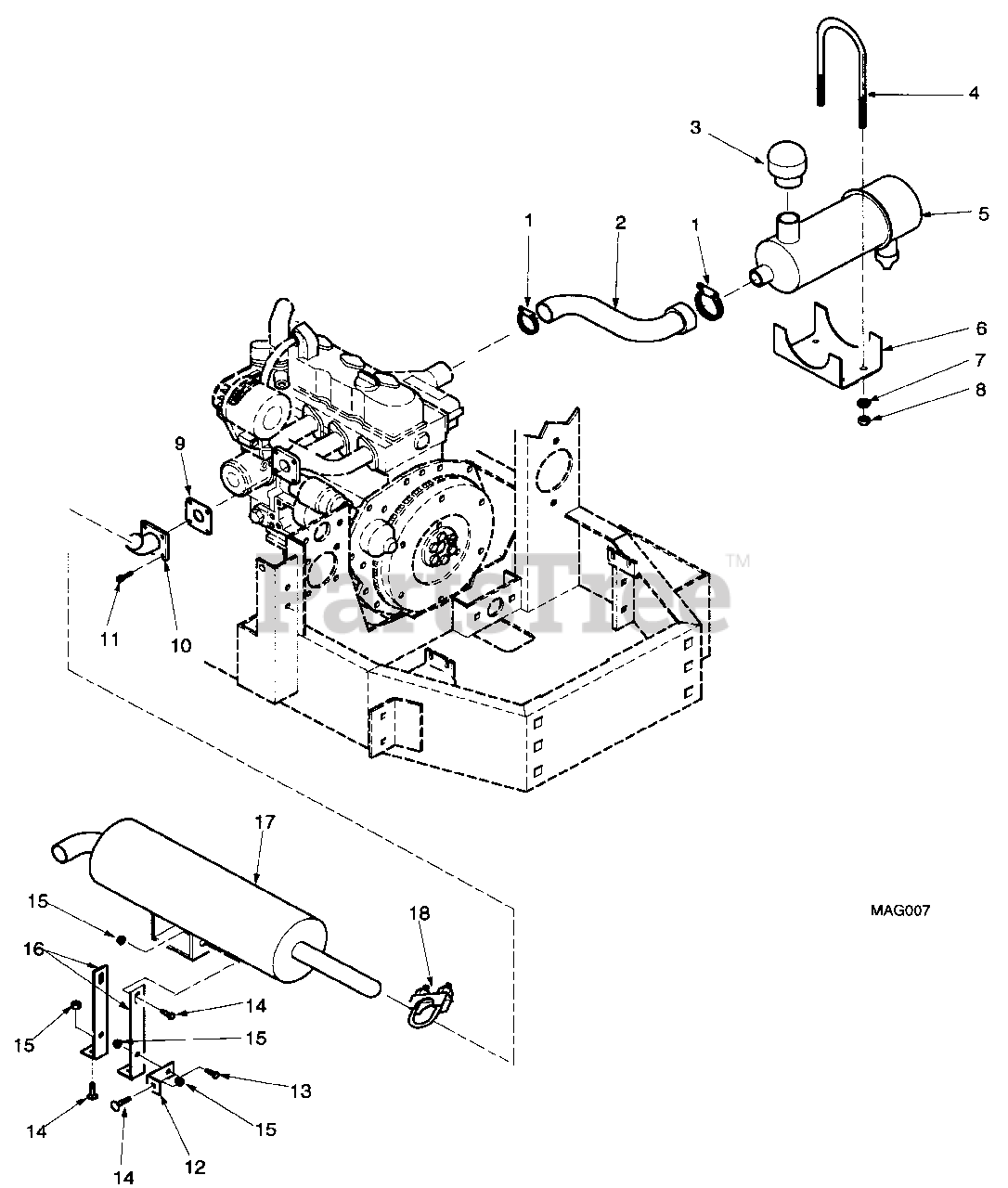

MUFFLER AND AIR CLEANER Parts Diagram

  • Title

1

Scag 48136-08

HOSE CLAMP

$4.49

$

Usually ships in 2-12 days

0

2

Scag 481191

HOSE, AIR INTAKE

$

$

Not available

3

Scag 481333

CAP. PRECLEANER

$

$

Not available

4

Scag 04100-03

U-BOLT

$

$

Currently unavailable

5

Scag 481192

AIR CLEANER

$383.99

$

Usually ships in 2-12 days

0

6

Scag 421981

MOUNTING BRACKET, AIR CLEANER

$21.99

$

Usually ships in 2-12 days

0

7

Scag 04030-03

LOCKWASHER, 5/16

$0.99

$

In Stock, Qty 20+

0

8

Scag 04020-03

NUT, HEX, 5/16-18

$0.99

$

In Stock, only 1 left!

0

9

GASKET, MANIFOLD

Note: AVAILABLE ONLY THROUGH THE ENGINE MANUFACTURER.

$

$

Not available

10

Scag 481340

ADAPTER, MANIFOLD

$526.99

$

Usually ships in 2-12 days

0

11

Scag 04015-07

CAPSCREW, SOCKET HEAD, M8-1.125 X 20

$0.99

$

In Stock, Qty 5

0

12

Scag 422029

BRACE, MUFFLER SUPPORT

$45.99

$

Usually ships in 2-12 days

0

13

Scag 04001-09

BOLT, HEX HEAD, 5/16-18 X 1

$0.99

$

In Stock, Qty 20+

0

14

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

15

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

16

Scag 421983

BRACKET, MUFFLER SUPPORT

$10.99

$

Usually ships in 2-12 days

0

17

Scag 481194

MUFFLER
(Superseded to 481439)

$

$

Not available

18

Scag 48633

CLAMP, EXHAUST PIPE

$6.49

$

In Stock, only 1 left!

0
