MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) INSTRUMENT PANEL Parts Diagram

Magnum III Three-Wheel Riding Mower

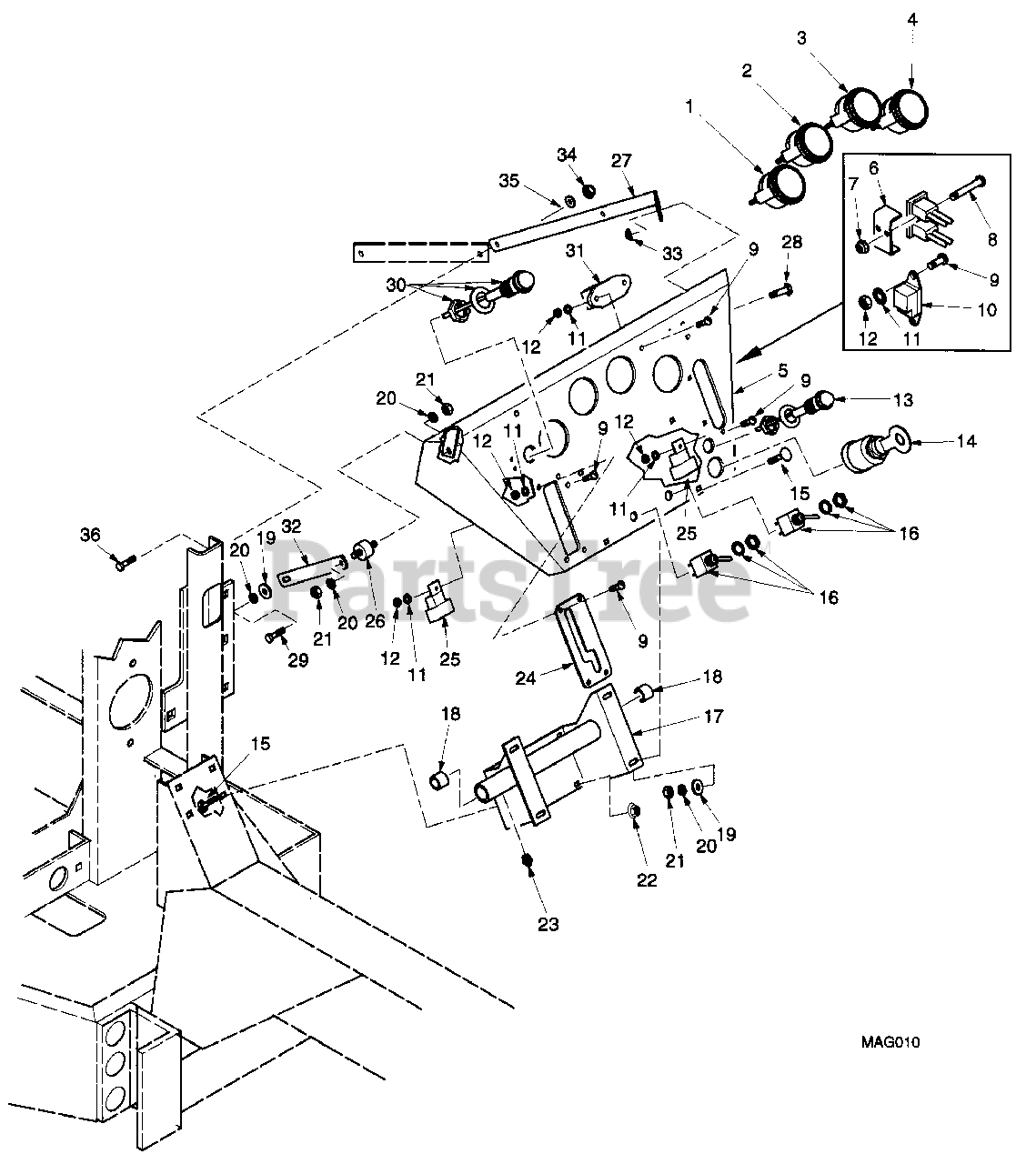

INSTRUMENT PANEL Parts Diagram

  • Title

1

Scag 48023

HOURMETER

$157.99

$

Usually ships in 2-12 days

0

2

Scag 481183

GAUGE, WATER TEMPERATURE

$136.99

$

Usually ships in 2-12 days

0

3

Scag 481306

GAUGE, FUEL LEVEL

$

$

Not available

4

Scag 481184

VOLTMETER

$94.99

$

Usually ships in 2-12 days

0

5

Scag 46873

INSTRUMENT PANEL WITH DECAL

$

$

Not available

6

Scag 42413

BRACKET, FUSE HOLDER

$40.99

$

Usually ships in 2-12 days

0

7

Scag 04021-01

HEX LOCKNUT, ELASTIC STOP, #10-32

$0.99

$

In Stock, Qty 10

0

8

Scag 04010-11

SCREW, ROUND HEAD, #10-32 X 1-1/2

$0.99

$

Usually ships in 2-12 days

0

9

Scag 04010-01

SCREW, ROUND HEAD, #10-32 X 1/2

$0.99

$

In Stock, Qty 20+

0

10

TIMER, GLOW PLUG

Note: AVAILABLE ONLY FROM THE ENGINE MANUFACTURER.

$

$

Not available

11

Scag 04031-01

LOCKWASHER, EXTERNAL TOOTH, #10

$0.99

$

In Stock, Qty 20+

0

12

Scag 04020-01

HEX NUT, #10-32

$8.99

$

In Stock, Qty 20+

0

13

Scag 481182

INDICATOR LIGHT, GLOW PLUG

$47.99

$

Usually ships in 2-12 days

0

14

KEYSWITCH

Note: AVAILABLE ONLY FROM THE ENGINE MANUFACTURER.

$

$

Not available

15

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

16

Scag 481087

SWITCH, DECK LIFT

$35.99

$

Usually ships in 2-12 days

0

17

Scag 46874

MOUNTING BRACKET, INSTR PANEL(INC 18, 23)

$

$

Not available

18

Scag 48100-06

BUSHING, OILITE - .75 I.D.

$1.49

$

In Stock, only 1 left!

0

19

Scag 04040-04

FLATWASHER, 5/16(.281 X .625 X .065)

$0.99

$

In Stock, Qty 20+

0

20

Scag 04030-03

LOCKWASHER, 5/16

$0.99

$

In Stock, Qty 20+

0

21

Scag 04020-03

HEX NUT, 5/16-18

$0.99

$

In Stock, only 1 left!

0

22

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

23

Scag 48114-04

GREASE FITTING

$0.99

$

In Stock, Qty 20+

0

24

Scag 421788

GUIDE, CLUTCH LEVER

$

$

Not available

25

Scag 48788

RELAY, SYNCHRONIZE START AND CUTTER BLADE

$28.99

$

In Stock, Qty 9

0

26

Scag 481311

RUBBER ISOLATOR

$21.99

$

Usually ships in 2-12 days

0

27

Scag 422020

BRACE, INSTRUMENT PANEL

$

$

Not available

28

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 15

0

29

Scag 04001-08

BOLT, HEX HEAD, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

30

Scag 481181

INDICATOR LIGHT, OIL PRESSURE

$

$

Not available

31

Scag 481316

TIMER, DELAY CIRCUIT

$353.99

$

Usually ships in 2-12 days

0

32

Scag 422004

BRACKET, SUPPORT BRACE

$95.99

$

Usually ships in 2-12 days

0

33

Scag 04019-02

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

34

Scag 04021-19

HEX NUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 5

0

35

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

36

Scag 04001-32

BOLT, HEX HEAD, 3/8-16 X 1-1/4

$0.99

$

In Stock, Qty 11

0
