MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) DECK DRIVE SYSTEM Parts Diagram

Magnum III Three-Wheel Riding Mower

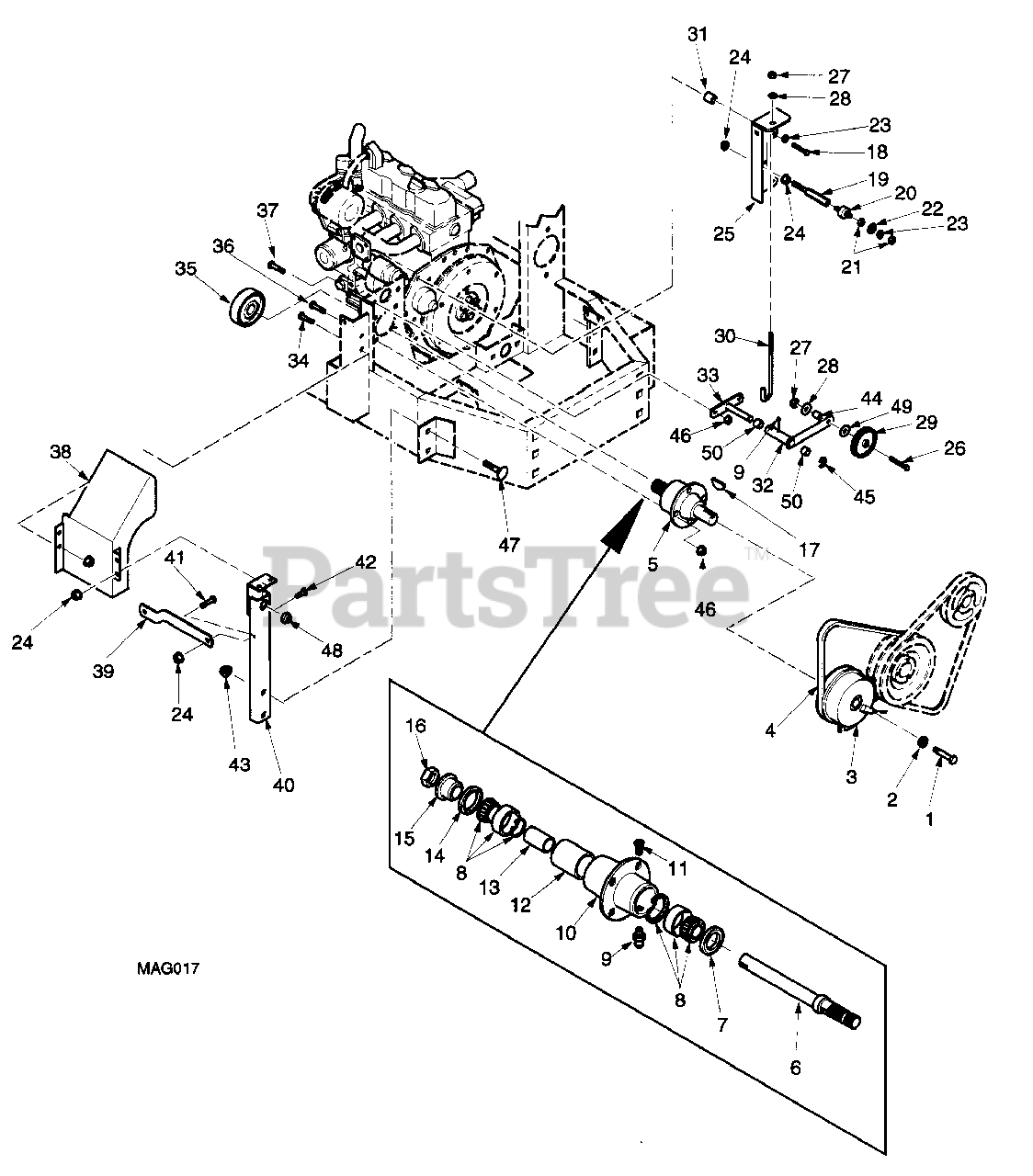

DECK DRIVE SYSTEM Parts Diagram

  • Title

1

Scag 04001-101

BOLT, HEX HEAD, 7/16-20 X 2-1/2

$2.49

$

In Stock, only 3 left!

0

2

Scag 04030-05

LOCKWASHER, 7/16

$0.99

$

In Stock, Qty 8

0

3

Scag 481204

CLUTCH, ELECTRIC

$526.99

$

Usually ships in 2-12 days

0

4

Scag 481104

BELT, DECK DRIVE

$46.99

$

Usually ships in 2-12 days

0

5

Scag 46827

SPINDLE, DECK DRIVE(INCLUDES 6 THRU 16)

$505.99

$

Usually ships in 2-12 days

0

6

Scag 43321

SHAFT, DECK DRIVE

$214.99

$

Usually ships in 2-12 days

0

7

Scag 481024

SEAL, 2.00 O.D. 1-1/2 BORE

$4.99

$

In Stock, Qty 20+

0

8

Scag 481022

ROLLER BEARING(REPLACE AS A SET ONLY)

$61.99

$

In Stock, Qty 15

0

9

Scag 48114-04

GREASE FITTING

$1.49

$

In Stock, Qty 20+

0

10

Scag 43294

HOUSING, SPINDLE
(Superseded to 43644)

$60.99

$

In Stock, only 2 left!

0

11

Scag 48677

RELIEF FITTING

$9.49

$

Usually ships in 2-12 days

0

12

Scag 43296

SPACER, OUTSIDE

$8.49

$

In Stock, only 2 left!

0

13

Scag 43312

SPACER, INSIDE

$19.99

$

In Stock, only 1 left!

0

14

Scag 481025

SEAL, 2.00 O.D. X 1-5/8 BORE

$4.99

$

In Stock, Qty 20+

0

15

Scag 43297

SPINDLE BUSHING, BOTTOM

$9.99

$

In Stock, only 2 left!

0

16

Scag 481112

NUT, 1-1/16-18

$32.99

$

Usually ships in 2-12 days

0

17

Scag 04063-21

KEY, #807 WOODRUFF, 1/4 X 7/8

$1.99

$

Usually ships in 2-12 days

0

18

Scag 04002-13

BOLT, HEX HEAD, M8-1.25 X 40

$

$

Currently unavailable

19

Scag 43332

PIN, CLUTCH ANTI-ROTATION

$89.99

$

Usually ships in 2-12 days

0

20

Scag 481311

ISOLATOR, RUBBER

$22.99

$

Usually ships in 2-12 days

0

21

Scag 04020-03

NUT, HEX, 5/16-18

$0.99

$

In Stock, only 1 left!

0

22

Scag 04040-15

FLATWASHER, 5/16(.375 X .875 X .083)

$0.99

$

In Stock, Qty 20+

0

23

Scag 04030-03

LOCKWASHER, 5/16

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-04

SERR. FL. HEX NUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

25

Scag 421807

ANCHOR BRACKET, J-BOLT
(Superseded to 45873)

$143.99

$

Usually ships in 2-12 days

0

26

Scag 04001-46

BOLT, HEX HEAD, 3/8-16 X 2-1/4

$0.99

$

In Stock, Qty 20+

0

27

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

28

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

29

Scag 48181

PULLEY, IDLER

$26.99

$

In Stock, Qty 14

0

30

Scag 43028

ROD, J-HOOK

$4.99

$

In Stock, only 2 left!

0

31

Scag 43336

SPACER

$9.99

$

Usually ships in 2-12 days

0

32

Scag 46871

IDLER ARM, CLUTCH

$107.99

$

Usually ships in 2-12 days

0

33

Scag 45212

BRACKET, IDLER PIVOT

$36.99

$

Usually ships in 2-12 days

0

34

Scag 04017-16

SERR. FL. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 10

0

35

Scag 43330

HUB, BRAKE

$90.99

$

Usually ships in 2-12 days

0

36

Scag 04001-10

BOLT, HEX HEAD, 5/16-18 X 1-1/4

$0.99

$

In Stock, Qty 14

0

37

Scag 04017-19

SERR. FL. HEX HEAD CAPSCREW, 5/16-18 X 1-1/2

$1.49

$

Usually ships in 2-12 days

0

38

Scag 45792

BELT GUARD, ELECTRIC CLUTCH

$

$

Not available

39

Scag 422018

BRACE, FAN SUPPORT - LH

$11.99

$

Usually ships in 2-12 days

0

40

Scag 45712

UPRIGHT, FAN SUPPORT - LH

$103.99

$

Usually ships in 2-12 days

0

41

Scag 04017-27

SERR. FL. HEX HEAD CAPSCREW, 3/8-16 X 1

$1.49

$

In Stock, Qty 20+

0

42

Scag 04003-12

CARRIAGE BOLT, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

43

Scag 04019-06

SERR. FL. HEX NUT, 1/2-13

$0.99

$

In Stock, Qty 11

0

44

Scag 43282

SPACER, J PULL ROD

$7.99

$

In Stock, only 1 left!

0

45

Scag 04050-02

RETAINING RING, .75 EXT

$0.99

$

In Stock, Qty 7

0

46

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

47

Scag 04003-19

CARRIAGE BOLT, 1/2-13 X 1-1/4

$1.99

$

Usually ships in 2-12 days

0

48

Scag 04021-07

LOCK NUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

49

Scag 04041-11

FLAT WASHER, 3/8(.406 X 1.50 X .179)

$1.99

$

In Stock, Qty 5

0

50

Scag 48100-05

BUSHING, OILITE - .753 I.D.

$0.99

$

In Stock, only 3 left!

0
