MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) CUTTER DECK MAG-72 Parts Diagram

Magnum III Three-Wheel Riding Mower

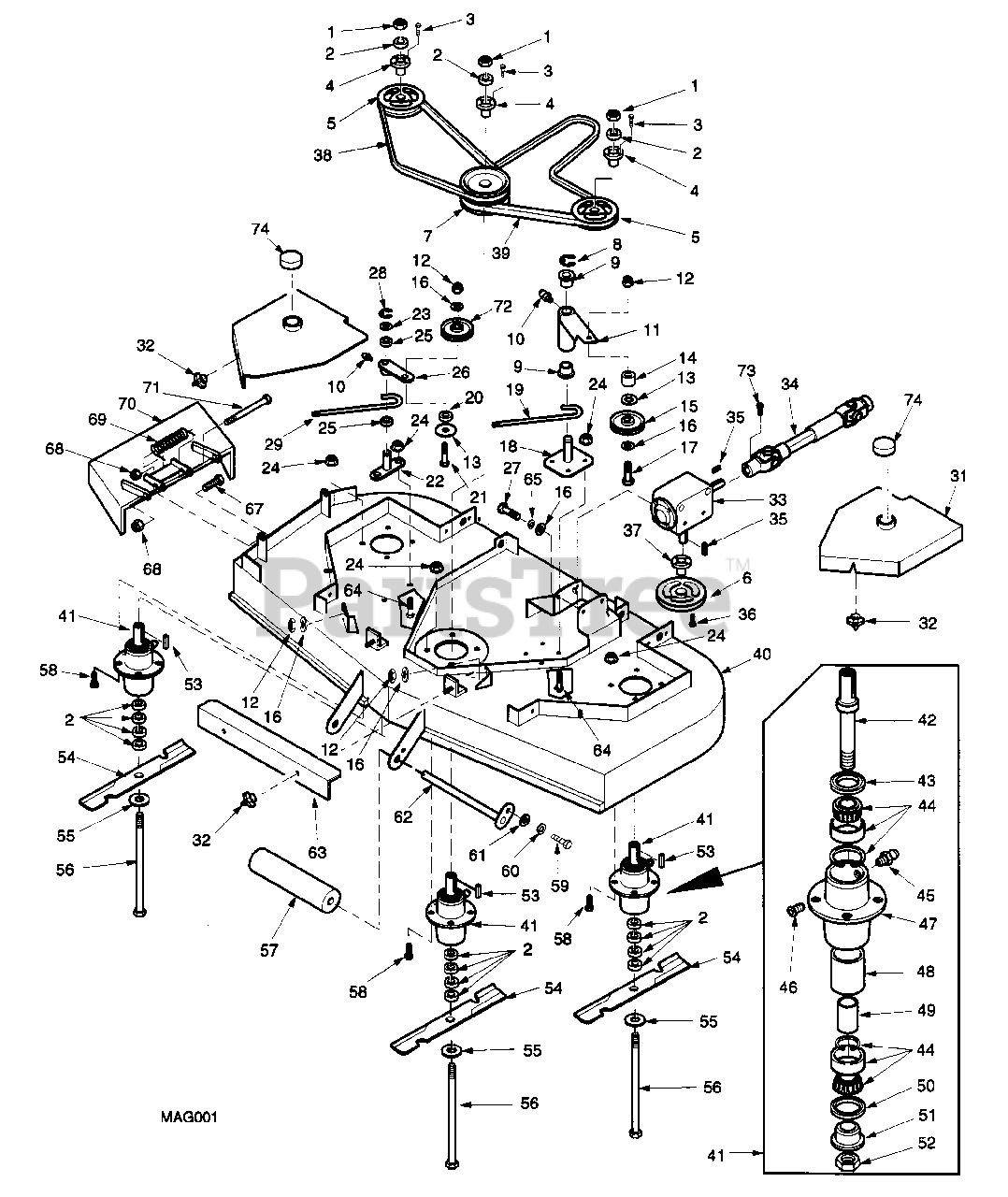

CUTTER DECK MAG-72 Parts Diagram

  • Title

1

Scag 04020-09

NUT, HEX, 5/8-11

$0.99

$

In Stock, Qty 20+

0

2

Scag 43278

SPACER, CUTTER BLADE
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

3

Scag 04001-01

BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5

$0.99

$

In Stock, Qty 20+

0

4

Scag 48926

TAPER HUB, 1.125 BORE

$30.99

$

In Stock, Qty 20+

0

5

Scag 48924

PULLEY, 5.75 DIA.
(Superseded to 482744)

$30.99

$

In Stock, Qty 19

0

7

Scag 48923

PULLEY, 5.75 DOUBLE GROOVE

$110.99

$

In Stock, only 1 left!

0

8

Scag 04050-05

RETAINING RING, .75 EXT "E"

$0.99

$

In Stock, Qty 20+

0

9

Scag 48100-02

BUSHING, OILITE - 1.125 ID

$3.49

$

In Stock, only 2 left!

0

10

Scag 48114-04

GREASE FITTING

$0.99

$

In Stock, Qty 20+

0

11

Scag 46866

ARM, IDLER(INCLUDES 9 & 10)

$

$

Not available

12

Scag 04021-09

LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

13

Scag 04041-12

FLAT WASHER, 3/8(.375 X 1.50 X .060)

$0.99

$

In Stock, Qty 9

0

14

Scag 43277

SPACER, J-HOOK

$6.49

$

In Stock, Qty 11

0

15

Scag 48269

PULLEY, IDLER
(Superseded to 483215)

$60.99

$

In Stock, Qty 20+

0

16

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 20+

0

17

Scag 04001-54

BOLT, HEX HEAD, 3/8-16 X 3

$0.99

$

In Stock, Qty 20+

0

18

Scag 45720

PIVOT, IDLER ARM

$

$

Not available

19

Scag 44107

J-HOOK

$6.49

$

Usually ships in 2-12 days

0

20

Scag 43077

SPACER, J-HOOK

$4.99

$

In Stock, only 1 left!

0

21

Scag 04001-46

BOLT, HEX HEAD, 3/8-16 X 2-1/4

$0.99

$

In Stock, Qty 20+

0

22

Scag 45037

IDLER PIVOT

$30.99

$

Usually ships in 2-12 days

0

23

Scag 04041-08

FLATWASHER, 3/4(.776 X 1.25 X .059)

$0.99

$

In Stock, Qty 20+

0

23

Scag 04041-08S

FLATWASHER, 3/4(.776 X 1.25 X .035)

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 20+

0

25

Scag 48100-05

BUSHING, OILITE - 3/4 ID

$0.99

$

In Stock, Qty 13

0

26

Scag 46081

IDLER ARM(INCLUDES 10 & 25)

$46.99

$

Usually ships in 2-12 days

0

27

Scag 04001-19

BOLT, HEX HEAD, 3/8-16 X 1

$0.99

$

In Stock, Qty 20+

0

28

Scag 04050-02

RETAINING RING, .75 EXT "E"

$0.99

$

In Stock, Qty 7

0

32

Scag 04029-03

WINGNUT, PLASTIC, 3/8-16

$2.49

$

In Stock, Qty 20+

0

33

Scag 481214

GEARBOX, DECK DRIVE

$1938.99

$

Usually ships in 2-12 days

0

34

Scag 481213

DRIVE SHAFT

$

$

Not available

35

Scag 04063-01

KEY, 1/4 X 1/4 X 1-1/4

$1.49

$

In Stock, Qty 20+

0

36

Scag 04001-109

BOLT, HEX HEAD, 1/4-20 X 1-3/8(FULL THREAD)

$2.49

$

In Stock, only 2 left!

0

37

Scag 48141

TAPERED HUB, 1.00 BORE

$29.99

$

In Stock, Qty 5

0

41

Scag 46631

SPINDLE ASSEMBLY
(Superseded to 461663)

$257.99

$

In Stock, Qty 20+

0

42

Scag 43298

SHAFT, CUTTER SPINDLE
(Superseded to 43589)

$58.99

$

In Stock, Qty 14

0

43

Scag 481024

SEAL, 2.00 OD X 1.50 BORE

$4.99

$

In Stock, Qty 20+

0

44

Scag 481022

BEARING ASSEMBLY

$59.99

$

In Stock, Qty 20+

0

45

Scag 48114-04

GREASE FITTING

$0.99

$

In Stock, Qty 20+

0

46

Scag 48677

RELIEF FITTING, CUTTER SPINDLE

$

$

Not available

47

Scag 43294

SPINDLE HOUSING
(Superseded to 43644)

$58.99

$

In Stock, Qty 5

0

48

Scag 43312

SPACER, OUTSIDE

$19.99

$

In Stock, only 1 left!

0

49

Scag 43296

SPACER, INSIDE

$8.49

$

In Stock, Qty 12

0

50

Scag 481025

SEAL, 2.00 OD X 1.625 OD

$4.99

$

In Stock, Qty 20+

0

51

Scag 43297

SPINDLE BUSHING, BOTTOM

$9.99

$

In Stock, only 4 left!

0

52

Scag 481035

NUT, 1-1/16-18 UNEF-2B

$7.99

$

In Stock, Qty 20+

0

53

Scag 04063-08

KEY, 1/4 X 1/4 X 2

$1.49

$

In Stock, Qty 20+

0

55

Scag 04040-10

WASHER, 5/8(.688 X 1.75 X .134)

$0.99

$

In Stock, Qty 11

0

56

Scag 04001-41

BOLT, HEX HEAD, 5/8-11 X 9-1/2 GR.5

$12.99

$

In Stock, Qty 20+

0

57

Scag 48038

ROLLER

$28.99

$

In Stock, Qty 17

0

58

Scag 04001-10

BOLT, HEX HEAD, 5/16-18 X 1-1/4

$0.99

$

In Stock, Qty 20+

0

59

Scag 04001-08

BOLT, HEX HEAD, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 20+

0

60

Scag 04030-03

LOCKWASHER, 5/16

$0.99

$

In Stock, Qty 20+

0

61

Scag 04040-15

FLATWASHER, 5/16(.375 X .875 X .083)

$0.99

$

In Stock, Qty 20+

0

62

Scag 45046

SHAFT, ROLLER
(Superseded to 45944)

$21.99

$

In Stock, Qty 20+

0

63

Scag 421820

COVER, BELT - FRONT

$46.99

$

Usually ships in 2-12 days

0

64

Scag 04017-16

SERR. FL HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 10

0

65

Scag 04030-04

LOCKWASHER, 3/8

$0.99

$

In Stock, Qty 20+

0

66

Scag 04001-19

BOLT, HEX HEAD, 3/8-16 X 1 GR.5

$0.99

$

In Stock, Qty 20+

0

67

Scag 04001-09

BOLT, HEX HEAD, 5/16-18 X 1.0

$0.99

$

In Stock, Qty 20+

0

68

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0

69

Scag 481050

SPRING, DISCHARGE CHUTE
(Superseded to 482245)

$10.99

$

In Stock, Qty 11

0

70

Scag 46726

DISCHARGE CHUTE
(Superseded to 461292)

$68.99

$

In Stock, only 2 left!

0

71

Scag 04001-108

BOLT, HEX HEAD, 5/16-18 X 4-1/4

$2.49

$

In Stock, Qty 7

0

72

Scag 48181

PULLEY, IDLER

$26.99

$

In Stock, Qty 20+

0

73

Scag 04012-06

SET SCREW, HEX SOCKET, 3/8-16 X 1/2

$0.99

$

In Stock, only 1 left!

0

74

Scag 48098

SPINDLE SHIELD

$2.49

$

In Stock, Qty 13

0
