MAC 280 B (41AR322G077) - McCulloch Blower General Assembly Parts Diagram

Blower

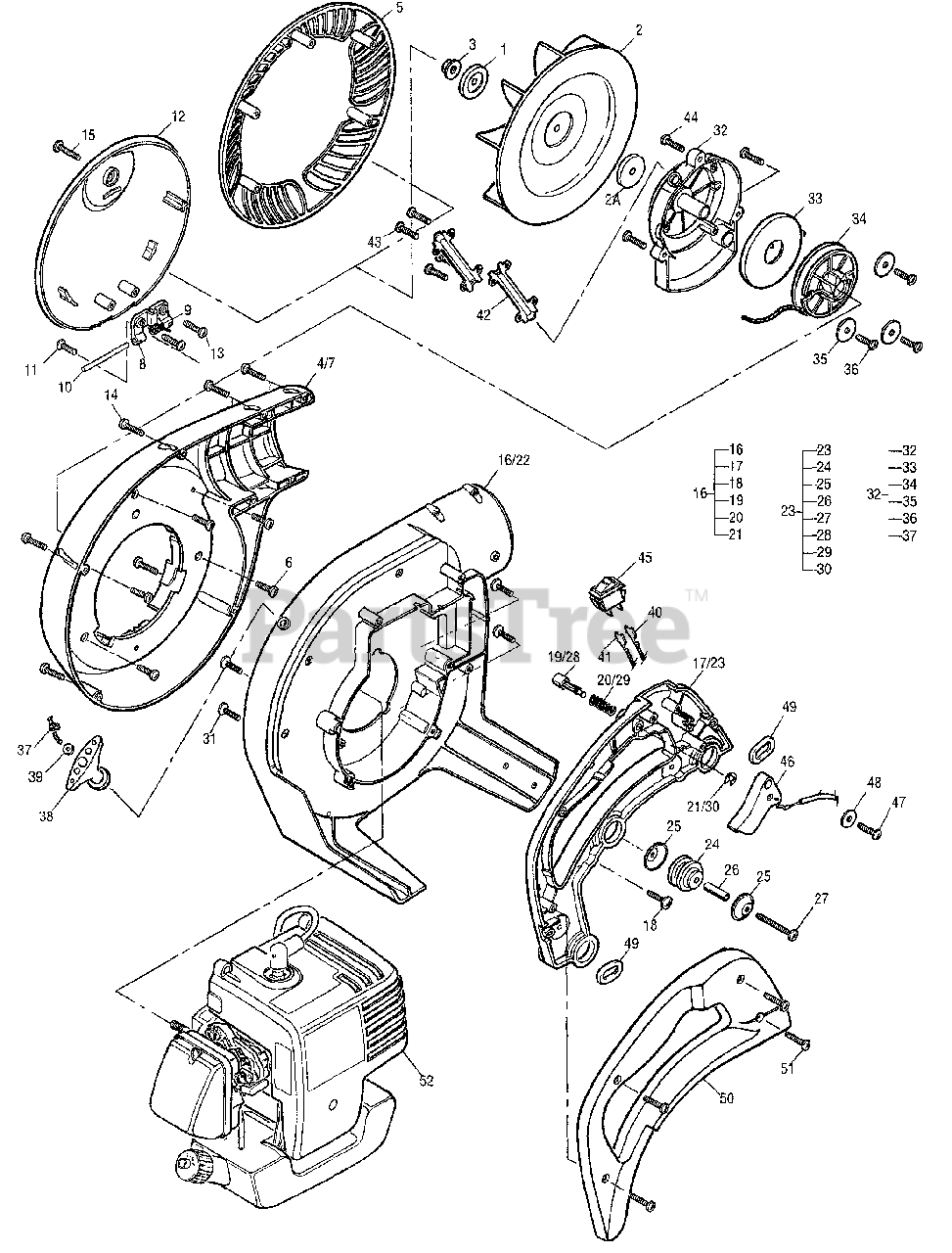

General Assembly Parts Diagram

  • Title

1

MTD MC-218655-00

Disc Drive
(Superseded to MC-9122-320002)

$

$

Not available

2

MTD MC-540002-00

Kit, Impellar, Blower/Vac

Note: MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV

$

$

Not available

2A

MTD MC-9122-320001

Disc Drive

$16.99

$

Usually ships in 3-6 days

0

3

MTD MC-110961-00

Nut, Hx 5/16-24
(Superseded to MC-9NAB-5/16-24)

$

$

Not available

4

MTD MC-322402-60

Outer Housing (Yellow)

Note: MAC 2808 only

$

$

Not available

4

MTD MC-322402-63

Outer Housing (Grey)

Note: SE 320B

$

$

Currently unavailable

5

MTD MC-323780-60

Cover, Impellar (Yellow)

Note: MAC 2808 only

$

$

Not available

5

MTD MC-323780-63

Cover, Impellar (Grey)

Note: SE 320B

$

$

Currently unavailable

6

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

Note: MAC 2808 & SE 320B

$5.99

$

In Stock, only 2 left!

0

7

MTD MC-323781-60

Outer Housing, Blo/Vac (Yellow)

Note: MB3200, MAC 320B, MB3201 & MAC 32OBV only

$

$

Not available

7

MTD MC-323781-63

Outer Housing, Blo/Vac (Grey)

Note: SE 320BV

$

$

Currently unavailable

8

MTD MC-322411-00

Hinge

Note: MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV

$

$

Not available

9

MTD MC-322438-00

Spring, Torsional

Note: MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV

$

$

Not available

10

MTD MC-218538-00

Pin, Cover

Note: MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV

$

$

Not available

11

MTD MC-111055-00

Screw, 10-14 x .625 Plastite

Note: MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV

$

$

Not available

12

MTD MC-322401-60

Cover, Fan (Yellow)

Note: MB3200, MAC 320B, MB3201 & MAC 32OBV only

$

$

Not available

12

MTD MC-322401-63

Cover, Fan (Grey)

Note: SE 320BV

$

$

Currently unavailable

13

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

Note: MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV

$5.99

$

In Stock, only 2 left!

0

14

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

15

MTD MC-111203-00

Screw, 10-24 x .875 Taptite

$

$

Not available

16

MTD MC-224709-00

Kit, Inner Housing, Non-AV

Note: MAC 2808 & SE 320B

$

$

Not available

17

MTD MC-322406-61

Handle, Left

$

$

Not available

18

MTD MC-218644-00

Screw, 10-14 x .75 Tr Torx
(Superseded to 710-04544)

$

$

Not available

19

MTD MC-322408-00

Lock, Throttle

$

$

Not available

20

MTD MC-322430-00

Spring, Compression

$

$

Currently unavailable

21

MTD MC-111195-00

Ring, Retaining

$

$

Not available

22

MTD MC-302060-00

Inner Housing Asy, AV

Note: MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV

$

$

Not available

23

MTD MC-322412-61

Left Handle, AV

Note: MB3200, MAC 320B, MB3201, MAC 32OBV & SE 32OBV

$

$

Not available

24

MTD MC-322399-00

Isolator Rubber

$

$

Not available

25

MTD MC-322398-90

Washer, Isolator

$

$

Currently unavailable

26

MTD MC-322175-00

Spacer, .21 ID x 1.00 Long
(Superseded to MC-9124-310101)

$

$

Not available

27

MTD MC-111093-00

Screw, 10-24 x 1.75 Tr Hd Torx
(Superseded to 710-04552)

$

$

Not available

28

MTD MC-322408-00

Throttle Lock

$

$

Not available

29

MTD MC-322430-00

Spring, Compression

$

$

Currently unavailable

30

MTD MC-111195-00

Ring, Retaining

$

$

Not available

31

MTD MC-111067-00

Screw, 10-24 x .63 SI Torx Tp
(Superseded to 710-04287)

$

$

Not available

32

MTD MC-224710-00

Kit, Starter Housing Asy

$

$

Not available

33

MTD MC-300475-00

Spring/Starter Rewind

$

$

Not available

34

MTD MC-300872-00

Pulley, Starter

$

$

Not available

35

MTD MC-322176-00

Washer, .2 ID x 718 in. OD

$

$

Not available

36

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

37

MTD MC-323131-00

Rope, Starter 46"

$

$

Not available

38

MTD MC-216792-00

Handle Starter

$

$

Not available

39

MTD MC-218941-00

Washer, Nylon

$

$

Not available

40

MTD MC-302057-00

Wire Asy, Ground

$

$

Not available

41

MTD MC-302058-00

Wire Asy, Stop Switch

$

$

Not available

42

MTD MC-322435-00

Cover, Rope

$

$

Not available

43

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

44

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

45

MTD MC-223241-00

Momentary Switch

$

$

Not available

46

MTD MC-322407-00

Throttle Trigger

$

$

Not available

47

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

48

MTD MC-300297-00

Washer, .19 ID x .68 OD
(Superseded to MC-9WFB-4.9-17)

$

$

Not available

49

MTD MC-218667-00

Harness Link

$

$

Not available

50

MTD MC-322405-61

Handle, Right

$

$

Not available

51

MTD MC-300294-00

Screw, 8-16 x .75 Tr Hd Plastite
(Superseded to 710-04232)

$5.99

$

In Stock, only 2 left!

0

52

Powerhead Asy

Note: See "Powerhead Assembly"

$

$

Not available
