M8-301552 - Kohler Magnum Engine, Made for Noland Car, 8hp, 6kW Carburetor TP-2201-C Parts Diagram

Magnum Engine, Made for Noland Car, 8hp, 6kW

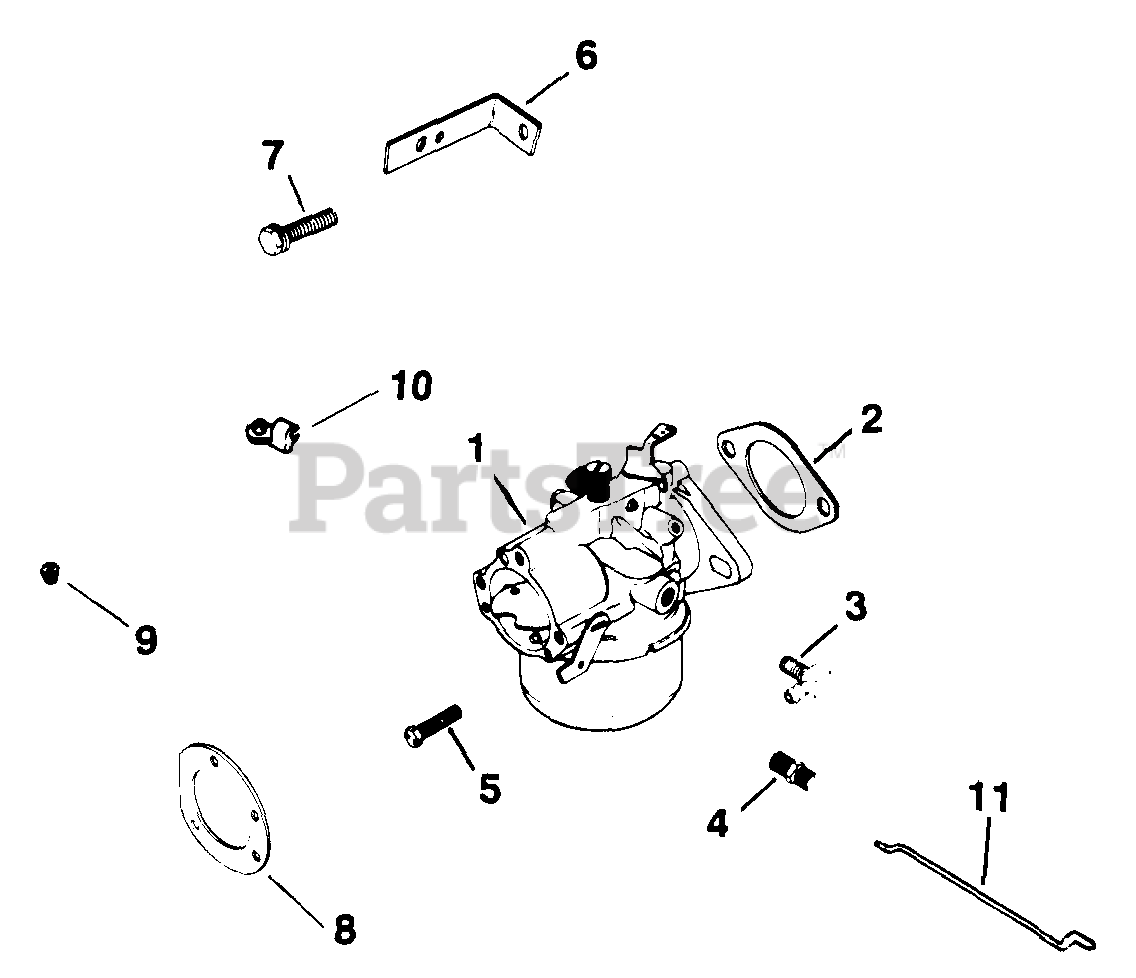

Carburetor TP-2201-C Parts Diagram

  • Title

1

Kohler 41 853 04

CARBURETOR - USE 41 853 07
(Superseded to 41 853 07)

Note: Includes 2,8,10,11 Carburetor assembly 41 053 24 or 41 053 26

$

$

Not available

1

Kohler 41 853 07-S

KIT,CARBURETOR - DISCONTINUED

Note: Includes 2,8,9, Carburetor assembly 41 053 27

$

$

Not available

2

Kohler 210223-S

GASKET

$8.99

$

Usually ships in 2-5 days

0

5

Kohler X-140-1-S

SCREW-DISCONTINUED

$

$

Not available

8

Kohler 41 041 11-S

GASKET

$3.49

$

In Stock, Qty 11

0

9

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 20+

0

10

Kohler 25 158 09

BUSHING - USE 25 158 11
(Superseded to 25 158 11)

$5.99

$

In Stock, Qty 15

0

11

Kohler 25 079 01-S

LINKAGE

Note: Use only with kit 41 053 04-S

$24.99

$

Usually ships in 2-5 days

0

2575711-S

Kohler 25 757 11-S

KIT, REPAIR CARBURETOR

Note: NOT ILLUSTRATED

$90.99

$

In Stock, Qty 6

0
