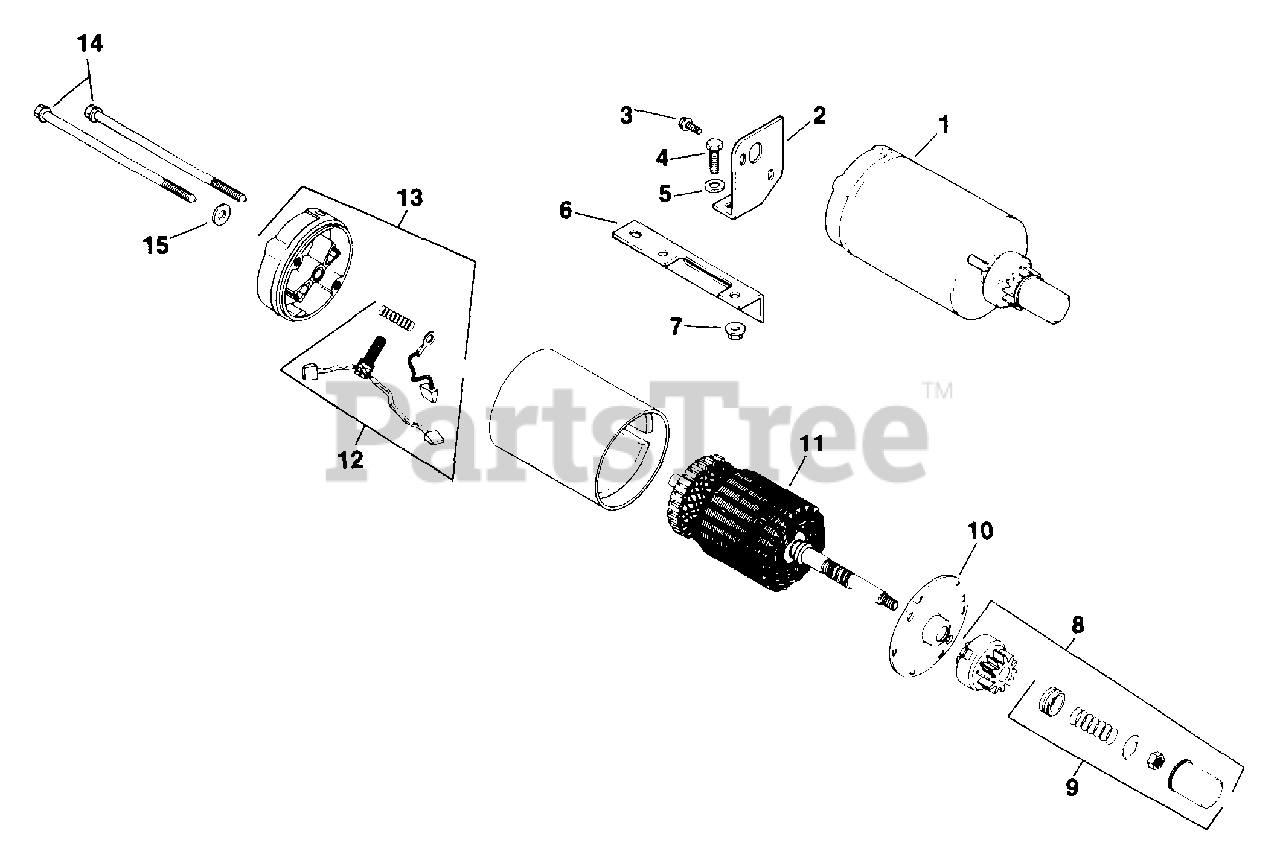

M8-301503 - Kohler Magnum Engine, Basic Version, 8hp, 6kW Electric Start 11-2-143 TP-2201-C Parts Diagram

Magnum Engine, Basic Version, 8hp, 6kW

Electric Start 11-2-143 TP-2201-C Parts Diagram

  • Title

1

Kohler 41 098 04

STARTER - USE 41 098 06
(Superseded to 41 098 06)

Note: Includes 8-15

$359.99

$

Usually ships in 2-5 days

0

2

Kohler 41 120 06-S

BRACE

$24.99

$

Usually ships in 2-5 days

0

3

Kohler X-67-62-S

SCREW, WSH HD TAP 1/4-20X3/4" USE 25 086 100-S
(Superseded to 25 086 100-S)

$3.49

$

Usually ships in 2-5 days

0

4

Kohler X-5-1-S

SCREW, CAP HD 1/4-20x5/8"

$3.99

$

In Stock, only 1 left!

0

5

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 41 126 25-S

BRACKET

$24.99

$

Usually ships in 2-5 days

0

7

Kohler X-799-1-S

PALNUT, 1/4-20

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 47 755 07

NO DESCRIPTION AVAILABLE - DISCONTINUED

Note: Includes 9

$

$

Not available

9

Kohler 47 755 13

NO DESCRIPTION AVAILABLE - DISCONTINUED

$

$

Not available

10

Kohler 41 227 03

CAP - USE 41 081 05
(Superseded to 41 081 05-S)

$124.99

$

Usually ships in 2-5 days

0

11

Kohler 45 170 02

ARMATURE - DISCONTINUED

$

$

Not available

12

Kohler 52 755 15

KIT - USE 82 755 28
(Superseded to 82 755 28)

$

$

Not available

13

Kohler 41 227 04

CAP - USE 52 227 03
(Superseded to 52 227 03)

Note: Includes 12. Replaced by 52 227 03

$

$

Not available

14

Kohler 41 086 19-S

BOLT, STARTER 1/4-20X5-1/16"

$

$

Not available

15

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

Note: Used on lower thru bolt only

$3.49

$

Usually ships in 2-5 days

0

2545003-S

Kohler 25 450 03-S

TAG, CAUTION

Note: NOT ILLUSTRATED

$1.49

$

Usually ships in 2-5 days

0
