M72-KW LC (53BB5GFZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 29hp Kawasaki Hydro Hose and Pump Assembly Parts Diagram

72" Tank Zero-Turn Mower, 29hp Kawasaki

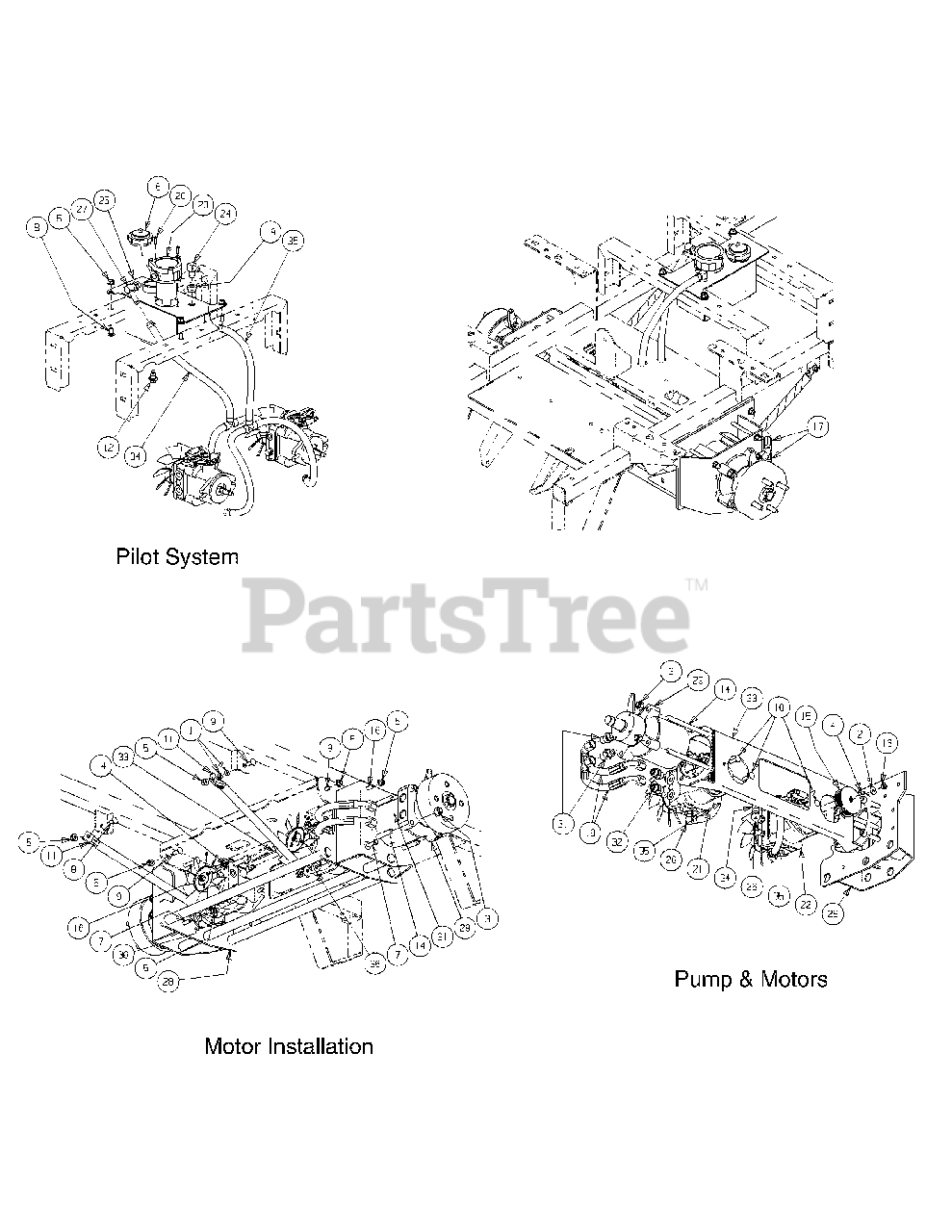

Hydro Hose and Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 936-0169

Washer lock 3/8 zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00012428

Washer lock 3/8 zinc

$6.99

$

In Stock, only 2 left!

0

4

Cub Cadet 00020628

Key, 3/16" x 7/8"

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00030261

Cap, Hydro Oil Tank

$36.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3005

Hex Cap Screw, 3/8 -16 x 1.25

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 LG.

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

10

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet 01002593-0637

Strut Frame

$

$

Not available

12

Cub Cadet 738-0940

Oil Pan Drain Plug w/ Seal

$8.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 01007309

Hex Nut, 3/8-24

$5.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01008449

Socket Head Capscrew, 1/2-13; 6-1/2

$13.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01009593

Hydro Pulley Pump

$138.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01009906

Carriage Bolt, 3/8-16 x 5.0

$5.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02000066

Hose Assembly, RH

$

$

Not available

18

Cub Cadet 02000067

Hose Assembly, LH

$115.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 02000296

Grommet Fitting, .54 ID x .78 OD

$20.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02000841

Socket Low Head Cap Screw, 1/4-20 x 0.75

$5.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 02001100P

Hydro Pump, BDP-12, LH

$2122.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01009631P

Kit, Fan
(Superseded to HG-71172)

Note: (not shown)

$36.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02001101P

Hydro Pump, BDP-12, RH

$2281.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01009631P

Kit, Fan
(Superseded to HG-71172)

Note: (not shown)

$36.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02002257

Hydraulic In-Tank Filter includes:

$175.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02002258

Filter Element

Note: (not shown)

$49.99

$

In Stock, Qty 7

0

24

Cub Cadet 02001151

Fitting Elbow Spur, 5/8 x 1/2

$

$

Not available

25

Cub Cadet 02001156

Hydraulic Tank Assembly

$

$

Not available

26

Cub Cadet 02001160

Fitting Elbow, 9/16 x 1/2

$59.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02001180

Fitting Elbow, 3/4 x 1/2

$

$

Not available

28

Cub Cadet 02001492

Hydro Motor Frame Assembly

$

$

Not available

29

Cub Cadet 02001496P

Hydro Motor, Left Hand Assembly w/Brake & Drum
(Superseded to 02002967P)

$2201.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02001497P

Hydro Motor, Right Hand Assembly w/Brake & Drum

$1429.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02001715

Adaptor Fitting, 8 x 10
(Superseded to 737P05711)

$15.99

$

In Stock, only 1 left!

0

32

Cub Cadet 02001975

Adaptor Fitting, 8 x 8

$

$

Not available

33

Cub Cadet 02002067-0637

Hydro Pump Mounting Bracket

$

$

Not available

34

Cub Cadet 02002069

Hose Assembly, Pilot includes:
(Superseded to 02002069P)

$

$

Not available

34

Cub Cadet 02001175

Tee Fitting

Note: (not shown)

$29.99

$

In Stock, only 2 left!

0

34

Cub Cadet 02001111

Hose Clamp

Note: (not shown)

$6.99

$

In Stock, only 2 left!

0

34

Cub Cadet 02001111

Hose Clamp

Note: (not shown)

$6.99

$

In Stock, only 2 left!

0

Hose, .50 ID x .75 OD

Note: (purchase locally)

$

$

Not available

35

Cub Cadet 02002070

Hose Assembly, Drain includes:

$

$

Not available

35

Cub Cadet 02001175

Tee Fitting

Note: (not shown)

$29.99

$

In Stock, only 2 left!

0

35

Cub Cadet 02001111

Hose Clamp

Note: (not shown)

$6.99

$

In Stock, only 2 left!

0

Hose, .50 ID x .75 OD

Note: (purchase locally)

$

$

Not available

36

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, only 4 left!

0

Cub Cadet 737-04325QT

OIL-RIMULA 15W/40, quarts

Note: (not shown)

$13.99

$

In Stock, Qty 10

0
