M72-KW LC (53BB5GFZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 29hp Kawasaki Front Caster Assembly 72-Inch Parts Diagram

72" Tank Zero-Turn Mower, 29hp Kawasaki

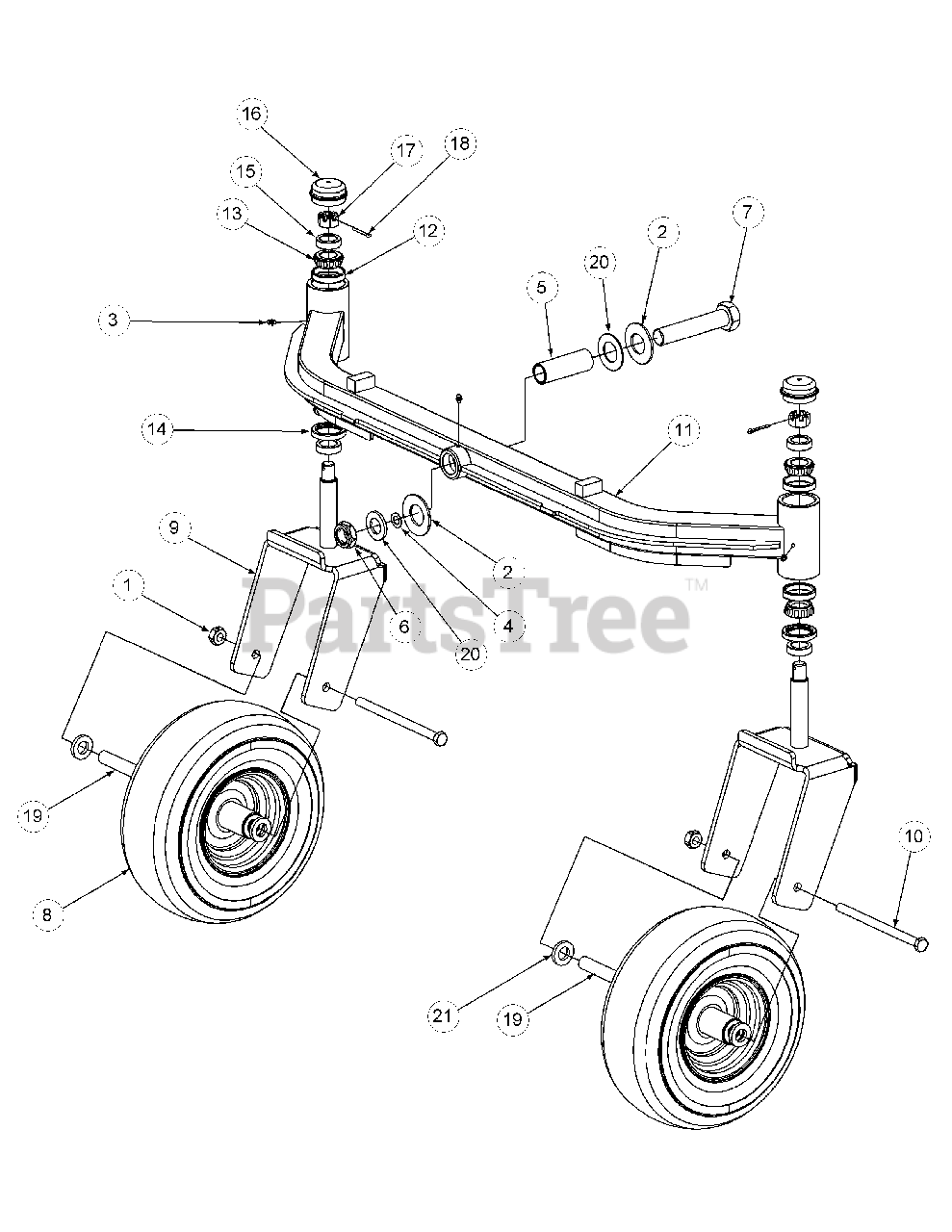

Front Caster Assembly 72-Inch Parts Diagram

  • Title
1

Cub Cadet 00023287

Nut, 1/2-20, Center Lock
(Superseded to 712-0239)

$

$

Not available

2

Cub Cadet 01006294

Bell Washer, 1.25 ID x 2.5 OD x .180
(Superseded to 736-04604)

$8.49

$

In Stock, only 2 left!

0

3

Cub Cadet 737-04345

Grease Fitting

$4.99

$

In Stock, Qty 6

0

4

Cub Cadet 01009997

Retainer Extension, Self Locking
(Superseded to 716-04191)

$3.99

$

In Stock, only 3 left!

0

5

Cub Cadet 02000589

Spacer, 1.005 ID x 1.25 OD x 3.6

$31.99

$

In Stock, only 1 left!

0

6

Cub Cadet 01000678

Nut, Jam, 1.0-14, Insert Lock
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

7

Cub Cadet 01006309

Hex Cap Screw, 1-14 x 5.0

$30.99

$

In Stock, only 1 left!

0

8

Cub Cadet 01006913

Wheel, 13 x 6.50 x 6, White

$273.99

$

In Stock, Qty 6

0

8

Cub Cadet 02002108

Tire

Note: (not shown)

$99.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 02002107

Retainer Flange

Note: (not shown)

$6.49

$

In Stock, Qty 15

0

8

Cub Cadet 02002106

Roller Bearing

Note: (not shown)

$32.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01007342-0637

Yoke, Caster Wheel

$166.99

$

In Stock, only 1 left!

0

10

Cub Cadet 01006961

HHCS, 1/2-20, 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 10

0

11

Cub Cadet 01007760

Front Axle Assembly

$

$

Not available

12

Cub Cadet 01002620

Cup Bearing
(Superseded to 741-04548)

$8.99

$

In Stock, Qty 14

0

13

Cub Cadet 01002621

Bearing Cone
(Superseded to 741-04549)

$19.99

$

In Stock, Qty 14

0

14

Cub Cadet 01002622

Seal
(Superseded to 721-04462)

$10.99

$

In Stock, Qty 11

0

15

Cub Cadet 01002624

Ring Seal
(Superseded to 750-05600)

$7.49

$

In Stock, only 1 left!

0

16

Cub Cadet 01006347

Grease Cap, 1.986 OD
(Superseded to 703-10384)

$15.99

$

In Stock, only 2 left!

0

17

Cub Cadet 712-0359

Slotted Nut, 3/4-16

$11.99

$

In Stock, only 1 left!

0

18

Cub Cadet 714-0162

Cotter Pin, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 01006912

Wheel Spacer
(Superseded to 750-05625)

$13.99

$

In Stock, Qty 20+

0

20

Cub Cadet 02000588

Flat Washer, 1.00 ID x 2.00 OD x .075
(Superseded to 736-04605)

$4.49

$

In Stock, Qty 12

0

21

Cub Cadet 01003123

Spacer, .812 ID x .218LG
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0
