M72-KW LC (53BB5GFZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 29hp Kawasaki Frame Assembly 72-Inch Parts Diagram

72" Tank Zero-Turn Mower, 29hp Kawasaki

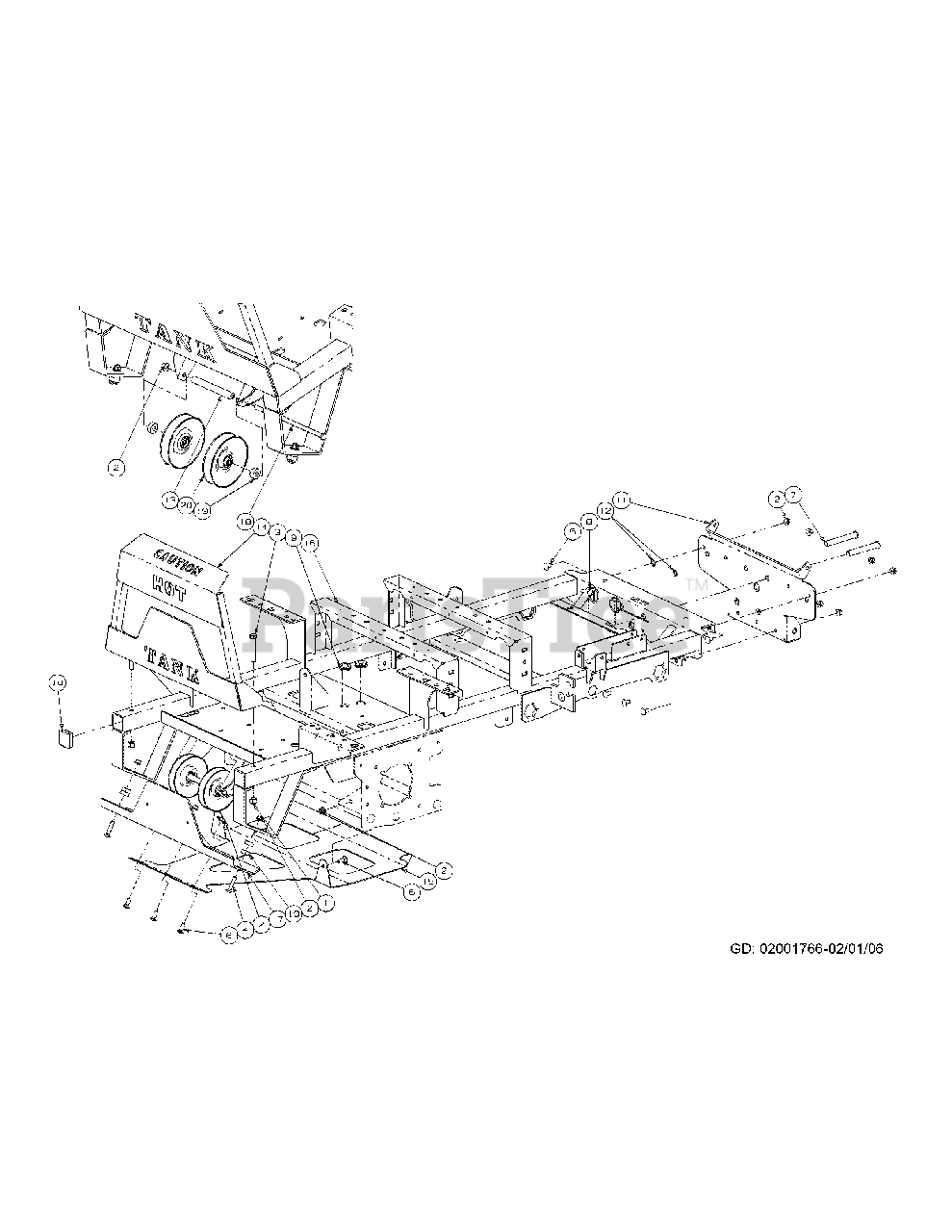

Frame Assembly 72-Inch Parts Diagram

  • Title

1

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

2

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00030046

Hex Head Cap Screw, 1/2-13 x 3.00

$

$

Not available

4

Cub Cadet 710-0560

Carraige Bolt, 3/8-16 x 1.75

$6.99

$

In Stock, Qty 11

0

5

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 7

0

7

Cub Cadet 01003282

Clevis Pin, .625 Dia x 4.375 Long

$12.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01003993

Linch Pin, 3/16 Dia.
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

9

Cub Cadet 01004040

Grommet .75 ID
(Superseded to 735-04285)

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 01005160

Plug, Square Tube

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01007776-0637

Bracket Assembly, Frame, Front

$212.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01008225

Push Retainer, 3/8
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 750-05474

Spacer, .385 ID x .625 OD x 4.89

$18.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02000547

Muffler Guard Assembly

$

$

Not available

15

Cub Cadet 02002282

Skid Plate

$

$

Not available

16

Cub Cadet 02001187

Frame Assembly

$

$

Not available

17

Cub Cadet 02002244-0637

Guard Bracket

$

$

Not available

18

Cub Cadet 710-3248

Hex Head Cap Screw, 3/8-16 x 8.50

$19.99

$

In Stock, only 3 left!

0

19

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .380

$11.99

$

In Stock, only 4 left!

0

20

Cub Cadet 956-3045

Idler Pulley, 5.06 Dia.
(Superseded to 956-3045A)

$57.99

$

In Stock, Qty 5

0
