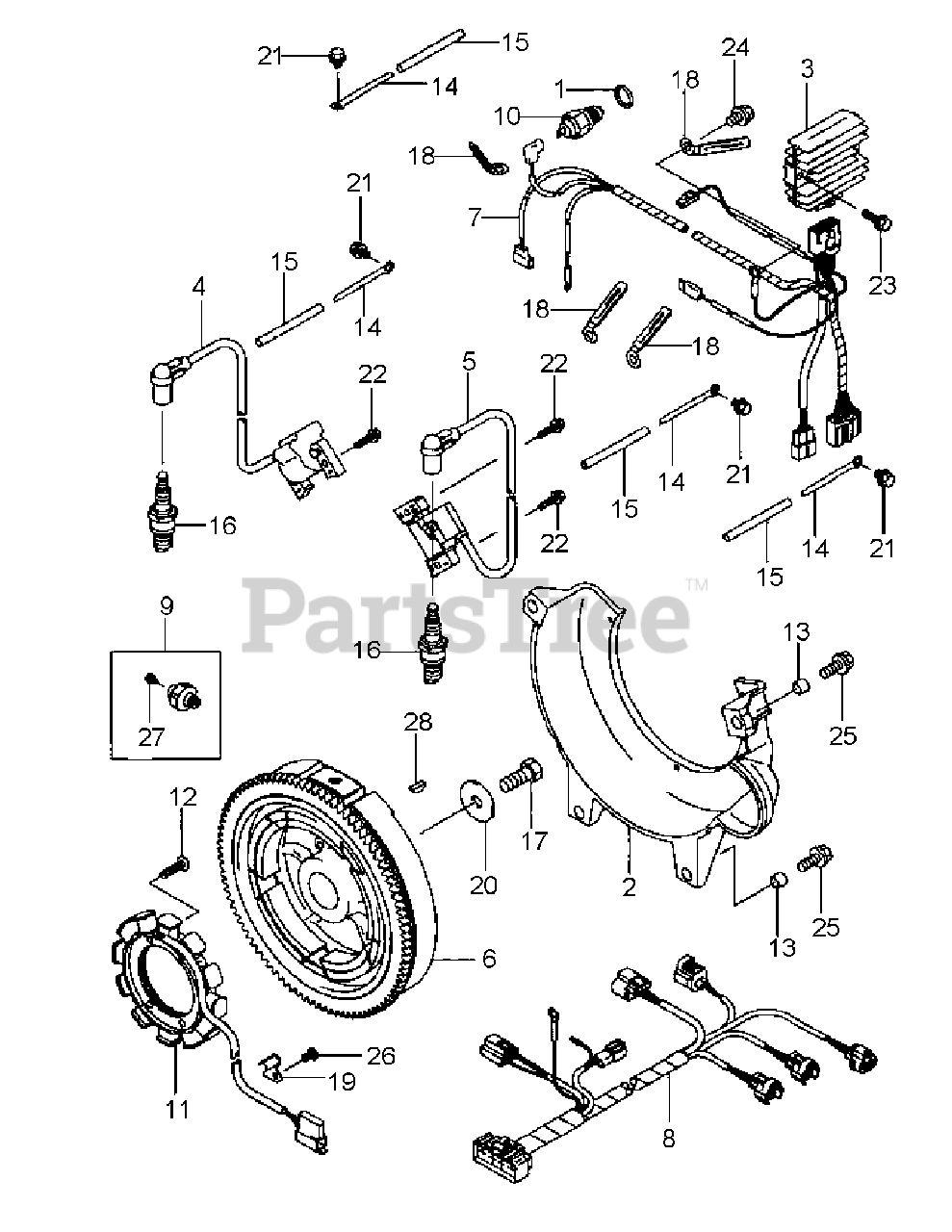

M72-KW LC (53BB5GFZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 29hp Kawasaki FD791D-AS05 Electric Equipment Parts Diagram

72" Tank Zero-Turn Mower, 29hp Kawasaki

FD791D-AS05 Electric Equipment Parts Diagram

  • Title

1

Cub Cadet KM-11009-2766

GASKET

$1.49

$

In Stock, Qty 8

0

2

Cub Cadet KM-14083-2055

FLYWHEEL COVER

$41.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-21066-2070

VOLTAGE REGULATOR

$131.99

$

In Stock, only 3 left!

0

4

Cub Cadet KM-21121-2090

IGNITION COIL #1
(Superseded to KM-21121-6004)

$85.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KM-21121-2091

IGNITION COIL #2
(Superseded to KM-21121-6005)

$85.99

$

Usually ships in 3-6 days

0

6

Cub Cadet KM-21193-2187

FLYWHEEL
(Superseded to KM-21193-0032)

$526.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-26030-2324

HARNESS

$67.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-26030-2331

HARNESS

$112.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-27010-2234

SWITCH
(Superseded to KM-27010-0851)

$19.99

$

In Stock, Qty 8

0

10

Cub Cadet KM-27010-2182

SWITCH

$38.99

$

In Stock, Qty 5

0

11

Cub Cadet KM-59031-2123

STATOR

$196.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-92009-2273

SCREW

$1.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KM-92027-1568

COLLAR

$1.99

$

In Stock, only 4 left!

0

14

Cub Cadet KM-92037-2171

CLAMP

$1.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-92059-2011

TUBE

$0.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KM-BPR4ES

SPARK PLUG

$3.49

$

In Stock, only 1 left!

0

17

Cub Cadet KM-92154-7003

BOLT, 12x30

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet KM-92170-2060

CLAMP

$3.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KM-92171-2060

CLAMP

$1.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KM-92200-2119

WASHER

$6.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KM-130G0608

FLANGED BOLT

$

$

Not available

22

Cub Cadet KM-130P0520

FLANGED BOLT

$

$

Not available

23

Cub Cadet KM-130CA0620

FLANGED BOLT

$

$

Not available

24

Cub Cadet KM-130G0812

FLANGED BOLT

$

$

Not available

25

Cub Cadet KM-130BA0820

FLANGED BOLT

$4.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KM-214B0510

PAN SCREW

$

$

Not available

27

Cub Cadet KM-241B0406

PAN SCREW

$0.99

$

In Stock, Qty 9

0

28

Cub Cadet KM-510A5100

WOODRUFF KEY

$3.49

$

In Stock, Qty 20+

0
