M72-KW LC (53AB5GFZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 29hp Kawasaki Fabricated Deck Spindle Assembly Parts Diagram

72" Tank Zero-Turn Mower, 29hp Kawasaki

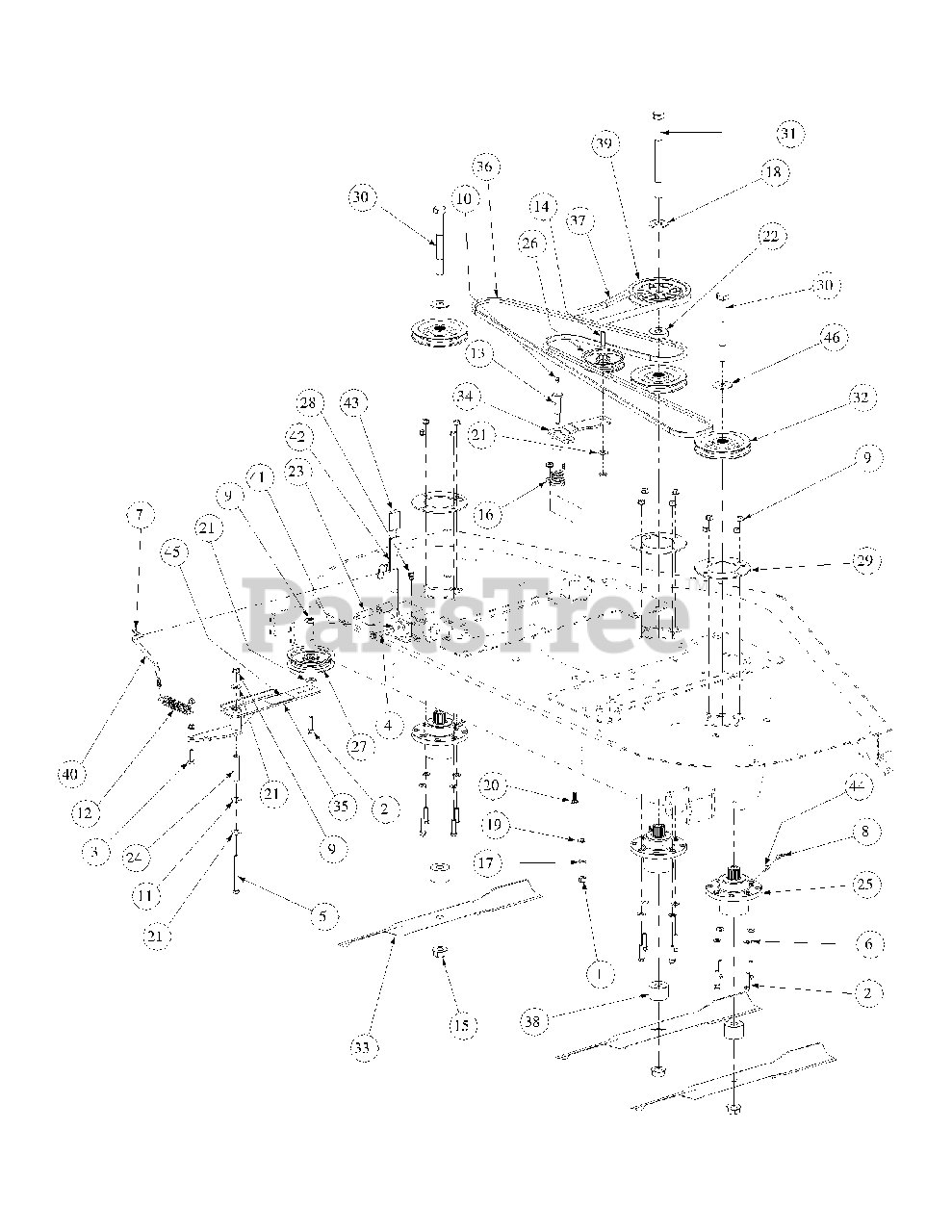

Fabricated Deck Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00011438

Hex Cap Screw, 3/8-16 x 1-1/2
(Superseded to 710-06021)

$3.99

$

In Stock, only 3 left!

0

3

Cub Cadet 00011444

Hex Cap Screw, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet 00011861

Hex Cap Screw, 3/8-16 x 2-1/2
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 16

0

5

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

6

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

7

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Long
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00021958

Taper Grease Fitting, 1/4-28, 45 degree

$5.49

$

In Stock, only 4 left!

0

9

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 02000726

Extension Spring, 1.0 x OD x 5.00

$

$

Not available

13

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

14

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 12

0

15

Cub Cadet 712-3078

Flange Hex Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 932-3009

Torsion Idler Spring

$24.99

$

In Stock, only 4 left!

0

17

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

18

Cub Cadet 736-3014

Flat Washer, .781 ID 2.00 OD, .105

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet 936-3015

Flat Washer, .469 ID, .875 OD, .105

$4.49

$

In Stock, only 1 left!

0

20

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

21

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 01002564

Spacer, .76 ID x 2.0 OD x .477

$20.99

$

In Stock, only 2 left!

0

23

Cub Cadet 01002751

Spacer, .39 ID x .63 OD x 1.75

$13.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

25

Cub Cadet 01003532P

Aluminum Spindle Assembly
(Superseded to 918-05125)

$331.99

$

In Stock, only 1 left!

0

26

Cub Cadet 02005077

Flat Pulley

$35.99

$

In Stock, Qty 20+

0

27

Cub Cadet 02004447

Idler Pulley, 4.06 OD

$57.99

$

In Stock, Qty 20+

0

28

Cub Cadet 01004304

Screw, TT, 3/8-16 x .50,
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

29

Cub Cadet 01004478-0637

Aluminum Spindle Support Plate
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01008542

Hex Cap Screw, 3/4-16, 7.50

$28.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 01005388

Hex Cap Screw, 3/4-16, 9.00
(Superseded to 710-05388)

$32.99

$

In Stock, Qty 5

0

32

Cub Cadet 01007499

V-Pulley, 5.75 OD

$168.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 02000568

Bahia Blade, 25.0, .756 ID
(Superseded to 742-04418-0637)

$

$

Not available

34

Cub Cadet 01007786

Idler Arm Assembly, Deck

$

$

Not available

34

Cub Cadet 01000308

Bearing Sleeve
(Superseded to 741-04555)

$16.99

$

In Stock, only 2 left!

0

35

Cub Cadet 02001495

Idler Arm Assembly, Drive

$75.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01000308

Bearing Sleeve
(Superseded to 741-04555)

$16.99

$

In Stock, only 2 left!

0

36

Cub Cadet 01007937

V-Belt, B Section x 124.0 LG
(Superseded to 01007937P)

$102.99

$

In Stock, only 1 left!

0

37

Cub Cadet 02000611

V-Belt, B Section x 155 LG
(Superseded to 02000611P)

$173.99

$

In Stock, Qty 13

0

38

Cub Cadet 01008018

Spacer, .760 ID x 2.00 OD x .330

$51.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 02000583

V-Pulley, 6.95 OD x .750 Bore, Cast

$217.99

$

In Stock, only 1 left!

0

40

Cub Cadet 01008204

Spring Tension Rod

$

$

Not available

41

Cub Cadet 01008222-0637

Tension Idler U-Bracket

$24.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 01008247-0637

Handle Tension Weldment

$81.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 01008270

Tension Idler Handle Grip

$26.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 01009101

Straight Adapter Fitiing
(Superseded to 737-04373)

$11.99

$

In Stock, only 4 left!

0

45

Cub Cadet 01006382

Decal, Idler Location

$

$

Not available

46

Cub Cadet 01003123

Spacer .812 ID x .268 LG
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0
