M72-KW LC (53AB5GFZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 29hp Kawasaki Brake Assembly Parts Diagram

72" Tank Zero-Turn Mower, 29hp Kawasaki

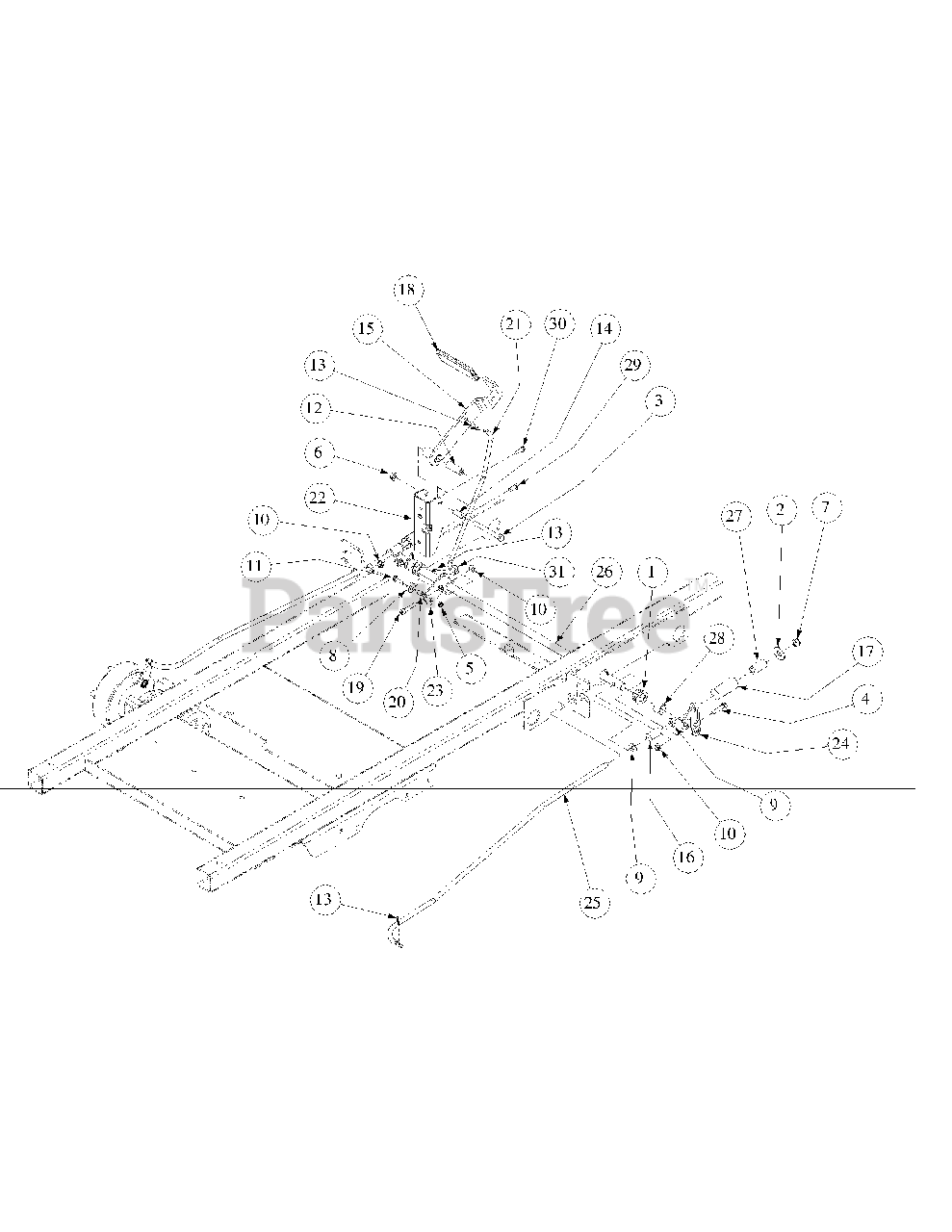

Brake Assembly Parts Diagram

  • Title

1

Cub Cadet 941-0598

Hex Flange Bearing, .752 ID

$12.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00011459

Flat Washer, 1/2

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-3130

Hex Cap Screw, 3/8-16 x 3-1/4

$10.99

$

In Stock, only 2 left!

0

4

Cub Cadet 00012382

Hex Cap Screw, 5/16-18 x 1-1/2

$

$

Not available

5

Cub Cadet 00012152

Lock Nut, 1/4-20, Nylon Insert

$4.49

$

In Stock, only 1 left!

0

6

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0290

Nylock Nut, 7/16-14

$4.99

$

In Stock, Qty 11

0

8

Cub Cadet 00071691

Spacer, Control Rod

$11.99

$

In Stock, only 1 left!

0

9

Cub Cadet 936-3015

Washer, .469 ID x .875 OD x .105

$4.49

$

In Stock, only 1 left!

0

10

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0788

Self Tapping Screw, 1/4-20 x 1.00

$7.49

$

In Stock, only 4 left!

0

12

Cub Cadet 01002751

Spacer, .39 x .63 x 1.75

$13.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Lg
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 01003468

Spacer, .375 x .50 x .75 Lg

$

$

Not available

15

Cub Cadet 01003595

Brake Handle

$

$

Not available

16

Cub Cadet 01003574

Neutral Brake Spring

$10.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01003575

Force Brake Spring

$

$

Not available

18

Cub Cadet 01003716

Parking Brake Grip

$36.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01008600

Socket Head Cap Screw, 5/16-18 x 1.50
(Superseded to 710-3250)

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01008607

Spacer, .375 OD x .257 ID x .438

$

$

Not available

21

Cub Cadet 01008886

Brake Rod

$40.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01008889

Parking Brake Mounting Bracket

$

$

Not available

23

Cub Cadet 01009561

Brake Arm Assembly

$

$

Not available

24

Cub Cadet 01009566

Brake Bracket

$

$

Not available

25

Cub Cadet 01009568

Linkage Brake Rod

$

$

Not available

26

Cub Cadet 01009569

Pivot Brake Shaft

$

$

Not available

27

Cub Cadet 01009601

Low Pressure Hose

$

$

Not available

28

Cub Cadet 01009602

Spacer, .76 ID x 1.0 OD x .75

$

$

Not available

29

Cub Cadet 00013092

HHCS, 5/16-18 x 1.0
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

30

Cub Cadet 710-0642

Screw, TT, 1/4-20, 0.75, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0
