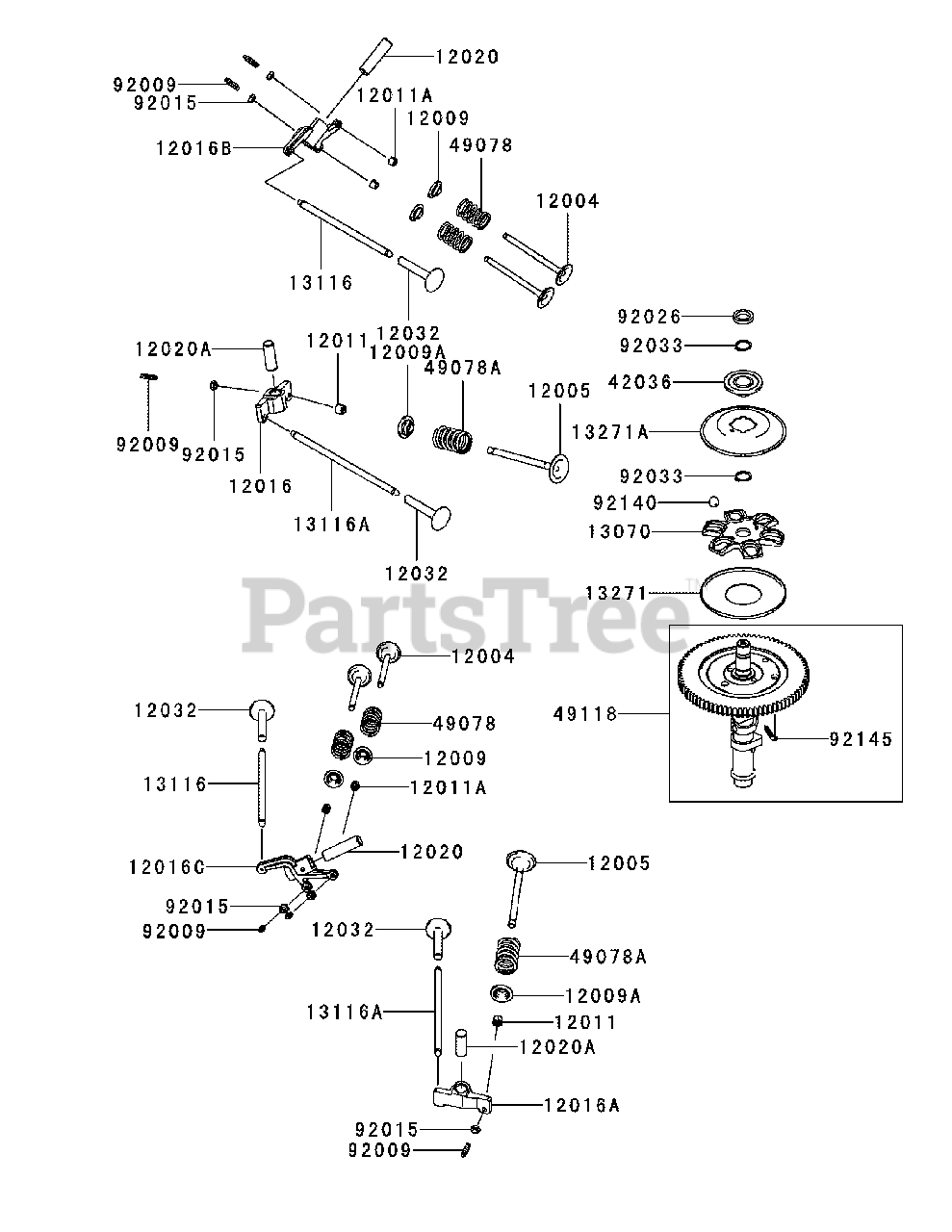

M72-KW (53AI8CTZ750) - Cub Cadet 72" Tank Zero-Turn Mower, 37hp Kawasaki FX1000V-AS00 Valve Camshaft Parts Diagram

72" Tank Zero-Turn Mower, 37hp Kawasaki

FX1000V-AS00 Valve Camshaft Parts Diagram

  • Title
12004

$25.99

$

In Stock, Qty 8

0

12005

Cub Cadet KM-12005-7007

VALVE-EXHAUST
(Superseded to KM-12005-0714)

$45.99

$

In Stock, Qty 8

0

12009

Cub Cadet KM-12009-7001

RETAINER-VALVE SPRING

$2.49

$

In Stock, Qty 20+

0

12009A

Cub Cadet KM-12009-7002

RETAINER-VALVE SPRING
(Superseded to KM-12009-7004)

$3.49

$

In Stock, Qty 6

0

$2.99

$

In Stock, Qty 20+

0

12011A

$2.99

$

In Stock, Qty 20+

0

12016

Cub Cadet KM-12016-7011

ARM-ROCKER, #1, EX

$

$

Not available

12016A

Cub Cadet KM-12016-7013

ARM-ROCKER, #2, EX

$

$

Not available

12016B

Cub Cadet KM-12016-7014

ARM-ROCKER, #1, IN

$85.99

$

Usually ships in 2-5 days

0

12016C

Cub Cadet KM-12016-7015

ARM-ROCKER, #2, IN

$85.99

$

Usually ships in 2-5 days

0

12020

Cub Cadet KM-12020-7001

SHAFT-ROCKER, IN

$

$

Not available

12020A

Cub Cadet KM-12020-7002

SHAFT-ROCKER, EX

$4.99

$

Usually ships in 2-5 days

0

$8.99

$

In Stock, only 2 left!

0

$5.99

$

In Stock, Qty 20+

0

13116

Cub Cadet KM-13116-2054

ROD-PUSH
(Superseded to KM-13116-0044)

$15.99

$

In Stock, Qty 8

0

13116A

Cub Cadet KM-13116-7005

ROD-PUSH
(Superseded to KM-13116-0711)

$18.99

$

In Stock, Qty 13

0

$5.49

$

In Stock, Qty 10

0

13271A

Cub Cadet KM-13271-7021

PLATE, GOVERNOR

$5.49

$

In Stock, Qty 18

0

$5.99

$

In Stock, Qty 18

0

49078

Cub Cadet KM-49078-7002

SPRING-ENGINE VALVE, INTAKE

$6.99

$

In Stock, Qty 20+

0

49078A

Cub Cadet KM-49078-7004

SPRING-ENGINE VALVE, EXHAUST
(Superseded to KM-49078-7007)

$6.99

$

In Stock, only 4 left!

0

49118

Cub Cadet KM-49118-7018

CAMSHAFT-COMP
(Superseded to KM-49118-0815)

$

$

Not available

$2.49

$

In Stock, only 2 left!

0

$1.49

$

In Stock, only 2 left!

0

92026

Cub Cadet KM-92026-7019

SPACER
(Superseded to KM-92026-0760)

$1.99

$

In Stock, only 3 left!

0

92033

Cub Cadet KM-92033-7001

RING-SNAP
(Superseded to KM-92033-0778)

$0.99

$

In Stock, Qty 5

0

92140

Cub Cadet KM-92140-7005

BALL
(Superseded to KM-92140-0026)

$2.49

$

Usually ships in 3-6 days

0

92145

Cub Cadet KM-92145-7001

SPRING
(Superseded to KM-92145-1653)

$1.49

$

In Stock, Qty 20+

0
